njnir.com Ion thrusters deliver higher specific impulse and improved fuel efficiency by accelerating ions using electrostatic fields, making them ideal for deep-space missions. Hall effect thrusters generate higher thrust levels through magnetically confined plasma but consume more propellant, suitable for satellite station-keeping and shorter missions. The choice between ion thrusters and Hall effect thrusters depends on mission duration, thrust requirements, and available power supply.
Table of Comparison
| Feature | Ion Thruster | Hall Effect Thruster |
|---|---|---|
| Propulsion Type | Electrostatic Ion Acceleration | Electromagnetic Ion Acceleration |
| Thrust | Low (up to 0.5 N) | Moderate (up to 0.3 N) |
| Specific Impulse (Isp) | 2500 - 4000 seconds | 1500 - 2000 seconds |
| Power Efficiency | High (~70%) | Moderate (~50-60%) |
| Propellant | Xenon, Krypton | Xenon, Krypton |
| Complexity | Higher (Grid electrodes, precise control) | Lower (Simpler design, no grids) |
| Spacecraft Application | Deep space missions, precise maneuvers | Earth orbit satellites, station-keeping |
| Lifespan | Long (10,000+ hours) | Moderate (5,000 - 10,000 hours) |
Introduction to Electric Propulsion in Aerospace
Ion thrusters and Hall effect thrusters are advanced electric propulsion technologies widely used in aerospace for efficient spacecraft maneuvering. Ion thrusters generate thrust by ionizing propellant and accelerating ions through electrostatic grids, achieving high specific impulse and fuel efficiency for long-duration missions. Hall effect thrusters utilize a magnetic field to trap electrons, ionize propellant, and accelerate ions electromagnetically, offering higher thrust density and simpler design suited for satellite station-keeping and deep-space exploration.
Fundamentals of Ion Thrusters
Ion thrusters operate by ionizing a propellant, typically xenon, and accelerating the ions through an electric field generated by grids or electrodes, producing thrust with high specific impulse and fuel efficiency. The fundamental mechanism involves extracting positive ions and neutralizing the exhaust with electrons to prevent spacecraft charging, enabling precise and continuous propulsion in deep space missions. Compared to Hall effect thrusters, ion thrusters generally offer higher exhaust velocities but require more complex power processing units to manage ion acceleration and neutralization.
Core Principles of Hall Effect Thrusters
Hall effect thrusters operate by ionizing propellant gas, typically xenon, and using a radial magnetic field combined with an axial electric field to trap electrons in a closed drift, creating a plasma discharge. This unique electron confinement enhances ionization efficiency and generates a high-velocity ion beam expelled through the thruster's channel to produce thrust. Ion thrusters, by contrast, rely on electrostatic grids to accelerate ions, making Hall thrusters distinct in utilizing magnetically confined electron flow for plasma generation and thrust production.
Comparative Efficiency: Ion vs Hall Effect Thrusters
Ion thrusters exhibit higher specific impulse, typically ranging between 2,000 and 4,000 seconds, compared to Hall effect thrusters, which average around 1,200 to 2,000 seconds, indicating superior fuel efficiency in ion propulsion. Hall effect thrusters generate greater thrust density and can operate at higher power levels, making them suitable for missions requiring stronger thrust in shorter durations. Overall, ion thrusters offer enhanced efficiency for long-duration, low-thrust applications, while Hall effect thrusters balance efficiency and thrust for medium-duration missions.
Thrust-to-Power Ratio: Performance Analysis
Ion thrusters typically exhibit a higher thrust-to-power ratio than Hall effect thrusters, achieving approximately 50-70 mN/kW compared to 30-50 mN/kW for Hall effect thrusters. This makes ion thrusters more efficient for missions requiring precise, low-thrust propulsion over extended periods, such as deep space exploration. The higher ionization efficiency and narrower ion beam divergence contribute to the superior thrust-to-power performance of ion thrusters in spacecraft propulsion systems.
Propellant Utilization and Selection
Ion thrusters exhibit higher propellant utilization efficiency due to their capacity to ionize and accelerate a greater proportion of the propellant gas, typically xenon, resulting in superior specific impulse and reduced propellant consumption. Hall effect thrusters utilize a magnetic field to trap electrons, enhancing ionization efficiency but often experiencing slightly lower propellant utilization than ion thrusters, with argon and krypton as alternative propellants to xenon. Propellant selection heavily influences thruster performance, where xenon remains preferred for its high atomic mass and inert properties, while emerging research explores the viability of iodine and other propellants for both thruster types to optimize cost and storage.
System Complexity and Engineering Challenges
Ion thrusters exhibit higher system complexity due to their requirement for precise ionization chambers, grids for ion acceleration, and high-voltage power supplies, demanding advanced engineering to maintain performance and reliability. Hall effect thrusters feature simpler construction with fewer moving parts and utilize a magnetic field to confine electrons, reducing complexity but facing significant challenges in managing plasma instabilities and erosion of channel walls. Both propulsion systems require sophisticated thermal management and power processing units to handle the demanding operational environment in space applications.
Operational Lifespan and Durability
Ion thrusters typically offer longer operational lifespans due to their use of inert xenon propellant and efficient erosion management techniques, enabling continuous missions lasting tens of thousands of hours. Hall effect thrusters, while generally exhibiting shorter lifespans because of higher erosion rates on their acceleration channel walls, benefit from simpler designs that enhance durability in variable space environments. Advances in magnetic shielding and material science are progressively improving the durability and operational lifespan of Hall effect thrusters, narrowing the gap with ion thrusters in long-duration space propulsion applications.
Applications in Space Missions
Ion thrusters, known for their high specific impulse and fuel efficiency, are primarily utilized in deep-space missions such as NASA's Dawn spacecraft, enabling prolonged operation and precise trajectory adjustments. Hall effect thrusters offer a balance of higher thrust and moderate efficiency, making them ideal for satellite station-keeping and orbit raising in Earth orbit missions like ESA's SMART-1 lunar probe. Both propulsion systems contribute significantly to modern spacecraft design by optimizing fuel consumption and mission duration depending on mission requirements.
Future Trends and Innovations in Thruster Technology
Future trends in ion thruster and Hall effect thruster technology emphasize higher efficiency and power scalability, driven by advances in xenon propellant ionization and magnetic field optimization. Emerging innovations include the integration of multi-mode thrusters that combine ion and Hall effect principles to enhance thrust-to-power ratios and operational flexibility for deep-space missions. Research on novel materials and plasma diagnostics aims to extend thruster lifespans and reduce erosion, positioning these technologies for next-generation satellite propulsion and in-space exploration applications.
Specific impulse
Ion thrusters typically achieve specific impulses between 2,000 and 4,000 seconds, surpassing Hall effect thrusters, which generally provide specific impulses around 1,500 to 2,000 seconds, making ion thrusters more efficient for long-duration deep-space missions.
Xenon propellant
Ion thrusters and Hall effect thrusters both use xenon propellant, but ion thrusters achieve higher specific impulse through electrostatic acceleration while Hall effect thrusters provide greater thrust density by utilizing a combined electric and magnetic field to ionize and accelerate xenon ions.
Plasma discharge
Ion thrusters generate plasma discharge by ionizing propellant through electron bombardment in a gridded system, while Hall effect thrusters create plasma discharge using a magnetic field to trap electrons, enhancing ionization efficiency.
Anode layer
The anode layer in Hall effect thrusters serves as a crucial ionization region facilitating electron acceleration, whereas ion thrusters use discrete grids and lack a defined anode layer for ionization.
Magnetic confinement
Ion thrusters utilize electrostatic fields for ion acceleration with limited magnetic confinement, whereas Hall effect thrusters employ strong magnetic fields to confine electrons and enhance plasma ionization efficiency.
Gridded acceleration
Gridded ion thrusters achieve precise ion acceleration through electrostatic grids that create strong electric fields, resulting in higher specific impulse compared to Hall effect thrusters, which rely on a combined electric and magnetic field without grids for ion acceleration.
Electron bombardment
Ion thrusters generate ions through electron bombardment for high-efficiency propulsion, while Hall effect thrusters utilize a radial magnetic field to trap electrons, enhancing ionization and reducing electron bombardment losses.
Channel erosion
Hall effect thrusters experience significantly higher channel erosion rates compared to ion thrusters due to their open-channel design and plasma-surface interactions, impacting their operational lifespan and maintenance requirements.
Power processing unit (PPU)
Ion thrusters require a more complex and higher voltage Power Processing Unit (PPU) compared to Hall effect thrusters, which utilize a simpler and more compact PPU optimized for lower voltage operation.
Thrust-to-power ratio
Ion thrusters typically have a higher thrust-to-power ratio compared to Hall effect thrusters, making them more efficient for long-duration space missions requiring precise propulsion.

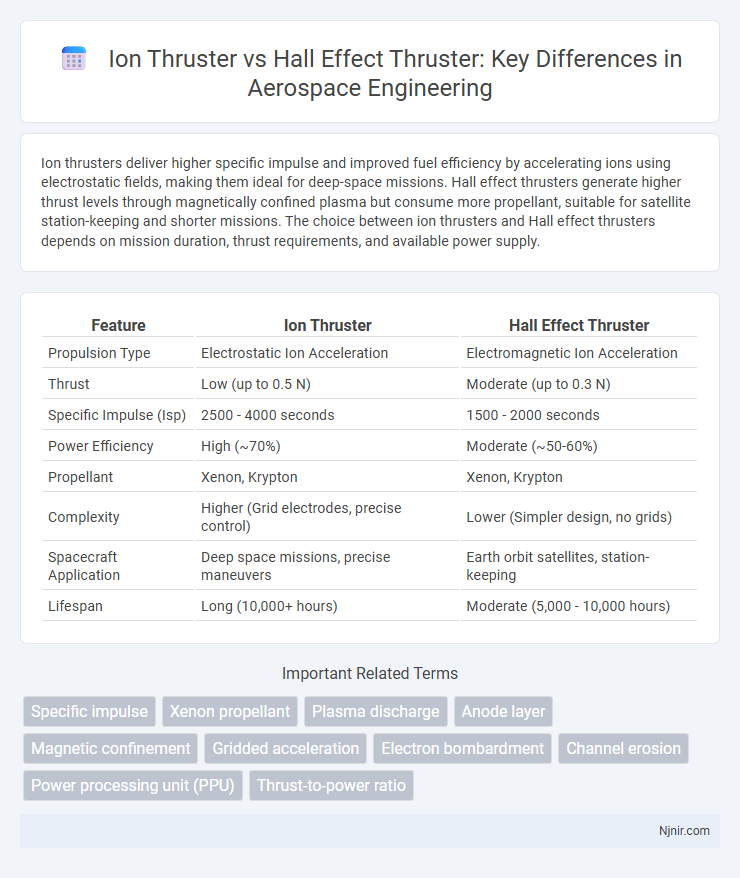

Ion thruster vs Hall effect thruster Infographic
