njnir.com Seismic refraction involves measuring the travel time of refracted seismic waves to map subsurface geological layers and identify their depth and composition. Seismic reflection, by contrast, records the reflected seismic waves from geological interfaces, providing high-resolution images of subsurface structures and stratigraphy. Both methods are essential in geological engineering for assessing site conditions, but seismic reflection offers more detailed mapping of complex subsurface features.
Table of Comparison
| Aspect | Seismic Refraction | Seismic Reflection |
|---|---|---|
| Principle | Analyzes refracted seismic waves traveling along subsurface layers | Analyzes reflected seismic waves bouncing off subsurface interfaces |
| Depth Range | Shallow to intermediate depths (up to several kilometers) | Shallow to deep depths (up to tens of kilometers) |
| Resolution | Lower vertical resolution | High vertical and horizontal resolution |
| Application | Mapping bedrock depth, groundwater, and engineering studies | Detailed structural mapping, hydrocarbon exploration, tectonic studies |
| Data Acquisition | Simple field setup, fewer sensors needed | Complex field setup, dense sensor arrays required |
| Wave Type | Primarily refracted P-waves | Reflected P-waves and sometimes S-waves |
| Processing Complexity | Moderate processing, travel-time analysis | Advanced processing including migration and velocity analysis |
Introduction to Seismic Methods in Geological Engineering
Seismic refraction utilizes the bending of seismic waves at velocity boundaries to map subsurface layers, making it ideal for detecting depth to bedrock and groundwater. Seismic reflection captures the amplitude and travel time of waves reflected off subsurface interfaces, providing high-resolution imaging for detailed stratigraphic and structural analysis. Both methods are fundamental in geological engineering for characterizing subsurface conditions, but seismic reflection offers superior detail for complex geologies while seismic refraction excels in rapid, large-scale layer delineation.
Principles of Seismic Refraction
Seismic refraction relies on the principle that seismic waves bend and travel along subsurface interfaces where velocity increases with depth, allowing the identification of layer boundaries based on travel time delays. It measures the critical refraction of seismic waves refracted along subsurface layers, which provides estimates of layer thickness and velocity. In contrast, seismic reflection detects waves reflected at interfaces with impedance contrasts, generating detailed images of subsurface structures.
Fundamentals of Seismic Reflection
Seismic reflection involves the measurement of reflected seismic waves from subsurface geological boundaries, providing detailed images of stratigraphic layers, while seismic refraction analyzes refracted waves traveling along subsurface interfaces to infer velocities and depths. The fundamentals of seismic reflection rely on the contrast in acoustic impedance between rock layers, causing changes in wave velocity and reflection coefficients that generate distinct seismic echoes. This method is fundamental in hydrocarbon exploration due to its high-resolution imaging capability of sedimentary structures and fault zones.
Key Differences: Seismic Refraction vs Seismic Reflection
Seismic refraction utilizes the bending of seismic waves as they pass through subsurface layers with different velocities, enabling the mapping of deep geological structures based on wave travel times. Seismic reflection, on the other hand, records the echoes of seismic waves reflected at interfaces with contrasting acoustic impedances, providing high-resolution images of subsurface stratigraphy and faults. Key differences include refraction's reliance on wave velocity contrasts for layer identification versus reflection's dependence on acoustic impedance contrasts for detailed structural imaging.
Equipment and Field Setup Comparison
Seismic refraction uses geophones arranged in linear arrays to detect refracted seismic waves traveling along subsurface layers, requiring controlled sources like sledgehammers or explosives for energy input. Seismic reflection employs denser geophone or hydrophone arrays to capture reflected seismic waves, often involving vibroseis trucks or air guns as energy sources to generate high-frequency signals for detailed imaging. Field setup for refraction emphasizes longer geophone spreads to identify critical refraction points, while reflection setups prioritize higher spatial resolution with closely spaced receivers to enhance subsurface layering visualization.
Data Acquisition and Processing Techniques
Seismic refraction data acquisition involves deploying geophones along linear profiles to record refracted waves traveling through subsurface layers, emphasizing accurate timing and offset distances for velocity estimation. Seismic reflection employs dense arrays of geophones and controlled seismic sources to capture reflected waveforms, allowing detailed imaging of subsurface interfaces through sophisticated stacking and migration processing techniques. Processing seismic refraction data uses travel-time inversion to model layer velocities and depths, while seismic reflection processing relies on trace editing, velocity analysis, deconvolution, and multiple suppression to enhance reflection continuity and resolution.
Advantages and Limitations of Seismic Refraction
Seismic refraction offers advantages such as cost-effectiveness, rapid data acquisition, and the ability to penetrate deep subsurface layers, making it ideal for mapping bedrock depth and identifying subsurface interfaces. Limitations include reduced accuracy in complex geology, inability to detect low-velocity layers or subtle stratigraphic features, and limited resolution compared to seismic reflection methods. Seismic refraction is less effective for detailed imaging of subsurface structures, where seismic reflection provides higher resolution and more comprehensive subsurface characterization.
Strengths and Drawbacks of Seismic Reflection
Seismic reflection offers high-resolution imaging of subsurface structures, making it ideal for detailed stratigraphic and structural analysis in hydrocarbon exploration. The technique provides accurate depth information and can identify thin layers and complex geological features, but it requires significant processing and interpretation effort due to signal noise and multiples. Its main drawbacks include higher operational costs and reduced effectiveness in very heterogeneous or highly attenuative media compared to seismic refraction.
Applications in Geological Engineering Projects
Seismic refraction is primarily used for mapping subsurface layer boundaries and determining soil and rock properties in shallow geological engineering projects, such as site characterization and foundation design. Seismic reflection provides high-resolution imaging of deeper subsurface structures, making it ideal for identifying faults, stratigraphic features, and hydrocarbon reservoirs in large-scale engineering and exploration projects. Combining both methods enhances accuracy in geological mapping and risk assessment for infrastructure development.
Choosing the Right Method: Factors and Case Studies
Seismic refraction is ideal for mapping large-scale subsurface features such as bedrock depth and geologic layers with high seismic velocity contrasts, while seismic reflection excels in detailed imaging of complex stratigraphy and fault structures through high-resolution data. Factors influencing method selection include depth of investigation, subsurface complexity, resolution requirements, and cost efficiency, with refraction preferred for deeper, simpler profiles and reflection favored for intricate, near-surface studies. Case studies demonstrate refraction's effectiveness in groundwater exploration and engineering surveys, whereas reflection surveys dominate hydrocarbon exploration and detailed sedimentary basin analysis.
P-wave velocity
Seismic refraction measures P-wave velocity by analyzing refracted waves traveling through subsurface layers, while seismic reflection captures P-wave velocity variations by reflecting waves at layer boundaries, enabling detailed imaging of subsurface structures.
S-wave velocity
Seismic refraction primarily measures S-wave velocity in subsurface layers by analyzing refracted waves traveling along interfaces, while seismic reflection uses reflected waves to map subsurface structures with less direct emphasis on S-wave velocity.
Critical angle
Seismic refraction occurs when seismic waves travel beyond the critical angle and refract along subsurface layers, whereas seismic reflection involves waves reflecting off interfaces at angles less than the critical angle.
Snell's Law
Seismic refraction relies on Snell's Law to analyze refracted wave paths through subsurface layers with varying velocities, while seismic reflection applies Snell's Law to reflected wave angles at interfaces between geological layers.
Travel-time curve
Seismic refraction travel-time curves display linear segments corresponding to critically refracted waves at layer interfaces, while seismic reflection travel-time curves exhibit hyperbolic patterns due to reflected wave paths from subsurface boundaries.
Refraction interface
Seismic refraction analyzes wave velocities at boundary interfaces where waves bend and travel through subsurface layers, while seismic reflection detects contrasts in acoustic impedance primarily at these interfaces to image subsurface structures.
Reflection coefficient
The reflection coefficient in seismic reflection quantifies the amplitude ratio of reflected to incident seismic waves at subsurface interfaces, providing detailed material contrasts, whereas seismic refraction primarily relies on travel time analysis and does not directly use reflection coefficients.
Layer impedance
Seismic reflection analyzes contrasts in layer impedance to map subsurface interfaces, while seismic refraction relies on wave velocity changes influenced by impedance variations to determine layer depths.
Shot point
Seismic refraction analyzes subsurface layers by measuring refracted waves from shot points at critical angles, while seismic reflection records reflected waves from shot points to map detailed subsurface interfaces.
Geophone array
Seismic refraction uses geophone arrays to measure refracted waves traveling through subsurface layers at critical angles, while seismic reflection employs dense geophone arrays to capture reflected waves from layer interfaces for high-resolution imaging.

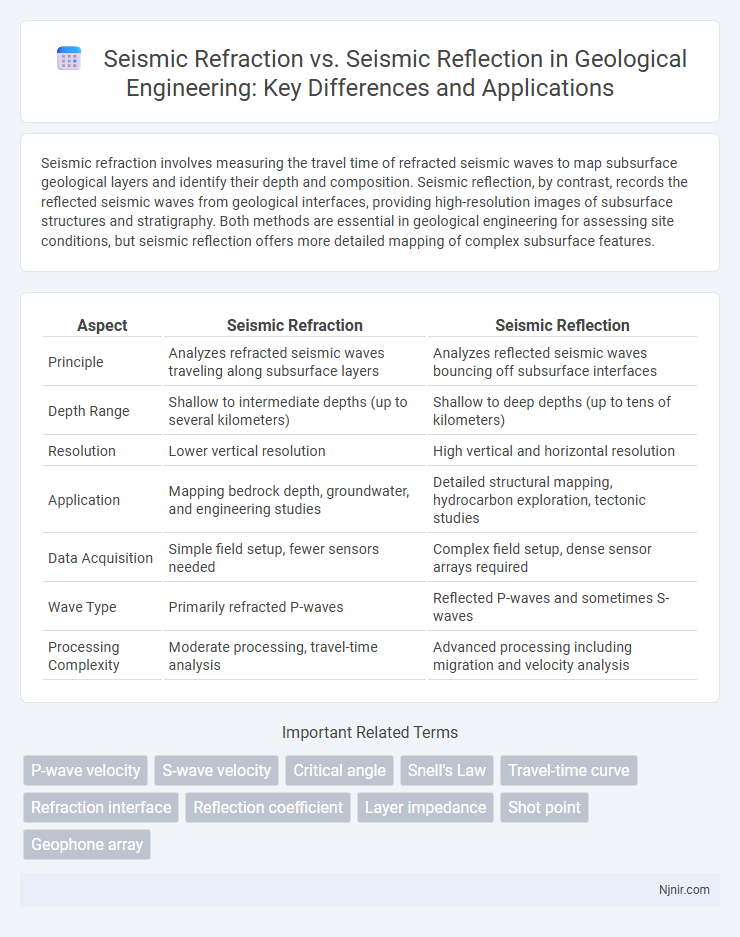

seismic refraction vs seismic reflection Infographic
