njnir.com Reaction wheels provide precise and continuous attitude control by varying angular momentum through spinning wheels, ideal for fine adjustments in satellite orientation. Control moment gyroscopes generate larger torques via gimbaled rotors, enabling rapid and substantial changes in spacecraft attitude for agile maneuvering. Both systems are essential for maintaining spacecraft stability, with reaction wheels favored for smooth control and CMGs preferred for aggressive reorientation tasks.
Table of Comparison
| Feature | Reaction Wheel | Control Moment Gyroscope (CMG) |
|---|---|---|
| Primary Function | Attitude control by changing wheel speed | Attitude control by gimbal torque |
| Torque Output | Low to moderate | High |
| Response Time | Slower | Faster |
| Complexity | Simple design, fewer moving parts | Complex, requires gimbals and sensors |
| Power Consumption | Lower | Higher |
| Typical Use | Small satellites, fine attitude adjustments | Large spacecraft, rapid attitude maneuvers |
| Failure Modes | Wheel saturation, bearing wear | Gimbal lock, mechanical failure |
| Cost | Lower | Higher |
Introduction to Attitude Control in Aerospace Engineering
Reaction wheels and control moment gyroscopes (CMGs) are critical components in spacecraft attitude control systems, enabling precise orientation without expelling propellant. Reaction wheels control spacecraft attitude by varying angular momentum through spinning wheels at different speeds, providing fine-tuned and continuous attitude adjustments. Control moment gyroscopes, leveraging gimballed spinning rotors, produce larger torques by changing the rotor's angular momentum vector, making them ideal for rapid and large-angle maneuvers in aerospace applications.
Fundamentals of Reaction Wheels
Reaction wheels operate by changing the angular momentum of a rotating flywheel to control spacecraft orientation without expelling propellant, relying on conservation of angular momentum principles. These devices provide precise and continuous torque by accelerating or decelerating the wheel, enabling fine attitude adjustments essential for satellite stability. Unlike control moment gyroscopes, reaction wheels generate torque solely through wheel-speed variation, making them simpler but limited in torque capacity and susceptibility to saturation.
Fundamentals of Control Moment Gyroscopes (CMGs)
Control Moment Gyroscopes (CMGs) utilize spinning rotors tilted by gimbals to generate torque for spacecraft attitude control, offering higher torque-to-mass ratios compared to reaction wheels. Unlike reaction wheels that change speed to produce torque, CMGs leverage the gyroscopic effect of rotor precession, enabling rapid and efficient orientation adjustments. The fundamental principle of CMGs involves conserving angular momentum within gimbal-mounted rotors to create precise control moments, making them essential for large spacecraft requiring swift and powerful maneuvering.
Core Differences: Reaction Wheels vs. CMGs
Reaction wheels generate torque by varying the spin rate of a flywheel, providing fine attitude control with low power consumption but limited torque output suitable for small to medium spacecraft. Control moment gyroscopes (CMGs) produce torque through gimbal-mounted spinning rotors, delivering higher torque useful for rapid or large-angle maneuvering in larger spacecraft. The core difference lies in their operational principle: reaction wheels rely on angular momentum changes via speed variation, while CMGs exploit momentum vector reorientation through gimbal movement.
Torque Generation and Control Authority
Reaction wheels generate torque by changing the spin rate of a flywheel, providing fine, continuous attitude control with limited torque output suitable for small to medium spacecraft. Control moment gyroscopes produce torque through the precession of spinning rotors, offering significantly higher torque and faster response times, which enable greater control authority for large or agile spacecraft. The choice between the two depends on mission requirements, with CMGs preferred for rapid maneuvers and reaction wheels favored for precision stability.
Applications of Reaction Wheels in Spacecraft
Reaction wheels are crucial for precise attitude control in small to medium-sized spacecraft such as CubeSats, Earth observation satellites, and scientific probes. They provide fine-tuned rotational momentum without expending propellant, enabling long-duration missions to maintain stable orientations for instruments and communication antennas. Unlike Control Moment Gyroscopes, which are preferred for larger spacecraft requiring rapid and high-torque maneuvers, reaction wheels excel in missions demanding gradual, energy-efficient adjustments.
Applications of Control Moment Gyroscopes in Space Missions
Control Moment Gyroscopes (CMGs) are essential for precise attitude control in large spacecraft like the International Space Station and geostationary satellites, enabling rapid and efficient orientation adjustments without expending propellant. Unlike reaction wheels, CMGs provide higher torque and faster response, making them ideal for missions requiring significant momentum exchange, such as interplanetary probes and space telescopes. Their reliability and ability to manage substantial angular momentum contribute to maintaining stable communication, navigation, and scientific observation in complex space environments.
Advantages and Disadvantages of Reaction Wheels
Reaction wheels offer precise and smooth attitude control with low power consumption, making them ideal for fine adjustments in spacecraft orientation. However, their torque output is limited, requiring longer periods to achieve significant changes, and they are susceptible to saturation, necessitating momentum dumping strategies. Unlike control moment gyroscopes, reaction wheels have simpler mechanical designs but provide less torque and agility for rapid maneuvers.
Advantages and Disadvantages of Control Moment Gyroscopes
Control Moment Gyroscopes (CMGs) offer superior torque generation and higher angular momentum capacity compared to Reaction Wheels, enabling more efficient attitude control for large spacecraft. CMGs provide rapid response and greater precision in orientation adjustments but suffer from mechanical complexity, increased mass, and potential singularity issues that require sophisticated control algorithms. Their advantages include high torque-to-weight ratio and energy efficiency, while disadvantages involve increased risk of mechanical failure and higher maintenance demands.
Selecting the Optimal Attitude Control System
Selecting the optimal attitude control system depends on mission requirements, with reaction wheels offering precise, low-torque control ideal for smaller satellites and long-duration stability. Control moment gyroscopes provide higher torque and faster slewing capabilities, making them suitable for large, agile spacecraft requiring rapid maneuvering. Key factors include torque output, power consumption, system complexity, and reliability to ensure optimal performance in spacecraft attitude control.
Attitude control
Reaction wheels provide precise, fine-tuned spacecraft attitude control through angular momentum exchange but have limited torque capacity, whereas control moment gyroscopes deliver higher torque and faster response for rapid attitude adjustments using gimbaled spinning rotors.
Momentum exchange
Reaction wheels use controlled spin-up and spin-down to exchange angular momentum for spacecraft attitude control, while control moment gyroscopes generate torque through gimbaled momentum exchange, offering faster and more powerful maneuvers.
Spin stabilization
Reaction wheels provide precise spin stabilization through controlled angular momentum changes, while control moment gyroscopes deliver rapid, high-torque attitude adjustments by leveraging gimbal-induced torque from spinning rotors.
Flywheel saturation
Reaction wheels experience flywheel saturation due to limited angular momentum capacity, whereas control moment gyroscopes mitigate saturation effects by gimbal torque modulation enabling continuous attitude control.
Gimbal lock
Control moment gyroscopes (CMGs) can suffer from gimbal lock due to their gimbal-based design, whereas reaction wheels avoid gimbal lock by providing torque through spinning wheels without gimbals.
Torque amplification
Control moment gyroscopes provide significantly higher torque amplification than reaction wheels, enabling faster and more precise attitude control in spacecraft.
Precision pointing
Control moment gyroscopes provide higher precision pointing accuracy than reaction wheels by generating greater torque with faster response times and reduced jitter in satellite attitude control.
Desaturation maneuver
Reaction wheels require frequent desaturation maneuvers using thrusters to offload accumulated angular momentum, whereas control moment gyroscopes effectively minimize the need for desaturation by providing higher torque and stability during spacecraft attitude control.
Three-axis stabilization
Three-axis stabilization in spacecraft is achieved using reaction wheels for precise torque control through variable spin rates, while control moment gyroscopes provide rapid attitude changes via controlled gimbal rotations generating higher torque outputs.
Angular momentum storage
Control moment gyroscopes store angular momentum using spinning rotors with gimbals to produce torque, enabling rapid attitude control, while reaction wheels store angular momentum by varying rotor spin speeds without gimbals, offering precise but slower torque adjustments.

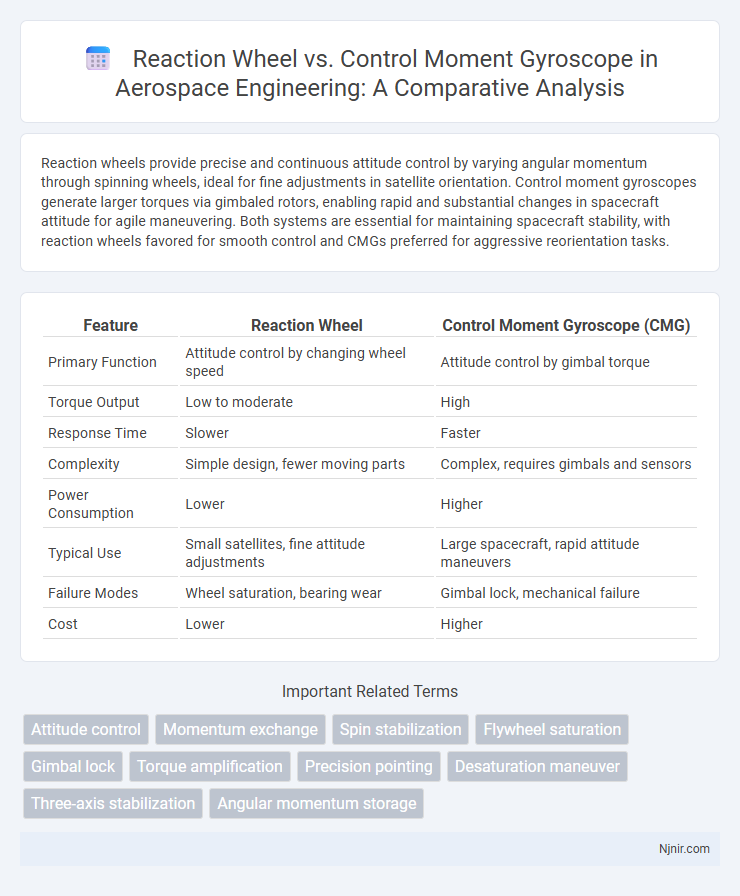

Reaction wheel vs Control moment gyroscope Infographic
