njnir.com Vertical Takeoff and Landing (VTOL) aircraft utilize aerodynamic lift through wings or rotors for ascent and descent, enabling efficient forward flight and extended range, ideal for urban air mobility and military applications. Vertical Takeoff Vertical Landing (VTVL) vehicles achieve lift solely through rocket propulsion, allowing precise landing accuracy and reuse in space exploration missions like lunar landers and reusable rockets. Both technologies revolutionize aerospace engineering by enhancing versatility, but VTVL prioritizes space mission efficiency while VTOL optimizes atmospheric flight performance.
Table of Comparison
| Feature | VTVL (Vertical Takeoff, Vertical Landing) | VTOL (Vertical Takeoff, Landing) |
|---|---|---|
| Definition | Launch and land vertically using the same engine orientation. | Vertical takeoff and landing using rotors or tilt engines; transitions to horizontal flight. |
| Propulsion | Rocket engines with throttle control. | Rotors, tilt-rotors, or tiltjets. |
| Example Vehicles | SpaceX Falcon 9, Blue Origin New Shepard. | V-22 Osprey, Harrier Jet. |
| Primary Use | Space launch systems, reusable rockets. | Military, urban air mobility, helicopters. |
| Flight Mode | Pure vertical ascent/descent. | Vertical takeoff/landing and efficient horizontal flight. |
| Advantages | Reusability, precise landing, reduced infrastructure. | Versatility in flight, VTOL and fast forward flight. |
| Limitations | High fuel consumption, complex guidance systems. | Mechanical complexity, limited speed compared to fixed-wing. |
Introduction to Vertical Takeoff and Landing Technologies
Vertical Takeoff and Landing (VTOL) refers to aircraft capable of taking off, hovering, and landing vertically, using fixed-wing or rotary-wing systems. Vertical Takeoff, Vertical Landing (VTVL) specifically describes rockets that launch and land by firing their engines downward, enabling precision recovery for reusable spaceflight. Both VTOL and VTVL technologies advance aerospace innovation by enhancing operational flexibility, allowing aircraft and spacecraft to operate in confined spaces without runways.
Defining VTVL and VTOL: Key Differences
VTVL (Vertical Takeoff, Vertical Landing) refers to rockets that launch and land vertically using thrusters, enabling precise, reusable space vehicle recovery. VTOL (Vertical Takeoff and Landing) describes aircraft capable of taking off and landing vertically while transitioning to horizontal flight for efficient forward movement. The key difference lies in VTVL's primary use in space launch systems for vertical propulsion control, whereas VTOL aircraft combine vertical lift with horizontal flight capabilities for versatile maneuvering.
Historical Evolution of VTVL and VTOL Systems
Vertical Takeoff and Landing (VTOL) systems emerged in the mid-20th century with helicopters leading initial developments, while Vertical Takeoff Vertical Landing (VTVL) technology gained prominence through rocket-powered spacecraft like NASA's Lunar Module in the 1960s. Helicopter VTOL technology focused on rotary-wing lift for maneuverability and operational versatility, establishing military and civilian aviation capabilities. VTVL evolved primarily within the aerospace sector, with companies like SpaceX advancing reusable rocket stages to revolutionize cost efficiency and operational sustainability in spaceflight.
Aerospace Applications of VTVL vs VTOL
Vertical Takeoff and Vertical Landing (VTVL) systems are predominantly used in aerospace for reusable rocket stages, enabling precise vertical landings that reduce recovery costs and enhance mission turnaround times. In contrast, Vertical Takeoff and Landing (VTOL) aircraft, including helicopters and tiltrotors, excel in versatile maneuverability for urban air mobility and short-range transport but typically lack the high-altitude and payload capabilities of VTVL rockets. The aerospace sector leverages VTVL technology primarily for space launch and recovery operations, while VTOL platforms serve tactical and commercial roles in low-altitude atmospheric flight.
Propulsion Technologies: Rockets vs Aircraft Engines
VTVL (Vertical Takeoff Vertical Landing) systems rely on rocket propulsion, utilizing high-thrust liquid or solid rocket engines for precise, controlled ascent and descent, enabling spacecraft reuse and rapid maneuverability. VTOL (Vertical Takeoff and Landing) aircraft employ aircraft engines such as turbofans, turbojets, or tiltrotors, designed for efficient lift and thrust in atmospheric conditions, emphasizing fuel efficiency and aerodynamic control. Rocket engines provide short-duration, high-impulse power suitable for space environments, while aircraft engines prioritize continuous thrust and adaptability for various flight regimes.
Efficiency and Performance Comparisons
VTVL (Vertical Takeoff and Vertical Landing) rockets demonstrate higher efficiency in space missions by minimizing atmospheric drag during ascent and enabling precise landing for reuse, reducing overall mission costs. VTOL (Vertical Takeoff and Landing) aircraft, optimized for aerodynamic efficiency during horizontal flight, deliver superior fuel economy and longer range within the atmosphere. Performance-wise, VTVL excels in thrust-to-weight ratios critical for orbital insertion, while VTOL systems prioritize lift-to-drag ratios for stability and endurance in varied flight conditions.
Engineering Challenges and Solutions
VTVL (Vertical Takeoff and Vertical Landing) vehicles face engineering challenges including precise thrust vector control and landing stability, requiring advanced guidance systems and real-time feedback loops to achieve soft touchdowns. VTOL (Vertical Takeoff and Landing) aircraft must address complex aerodynamic transitions between vertical and horizontal flight modes, necessitating sophisticated tiltrotor or tiltwing mechanisms and robust control algorithms for smooth maneuvering. Both designs demand innovative materials for weight reduction and thermal management to optimize performance and durability under varying flight conditions.
Reusability and Cost Implications
Vertical Takeoff and Vertical Landing (VTVL) rockets are designed for multiple reuses by returning to their launch pad or drone ship, significantly reducing launch costs through hardware recovery and refurbishment. In contrast, Vertical Takeoff and Landing (VTOL) aircraft, primarily designed for atmospheric flight, incur higher operational costs due to complex engines and maintenance but benefit from rapid turnaround times in military and commercial applications. VTVL systems offer superior cost-efficiency for space missions by minimizing expendable components, while VTOL platforms balance reusability with versatility in various aviation roles.
Safety and Reliability Considerations
VTVL (Vertical Takeoff, Vertical Landing) systems offer enhanced safety by enabling precise control during descent, reducing landing risks compared to VTOL (Vertical Takeoff and Landing) aircraft that transition between vertical and horizontal flight modes, which can introduce mechanical complexity and failure points. VTVL rockets use thrust vectoring and autonomous guidance systems to achieve reliable touchdown on constrained or unprepared surfaces, increasing mission success rates. VTOL aircraft rely on aerodynamic control surfaces and propulsion systems that may be more susceptible to mechanical failure under varying flight conditions, impacting overall reliability.
Future Prospects in Vertical Liftoff Innovation
VTVL (Vertical Takeoff, Vertical Landing) technology offers reusable rocket systems that significantly reduce launch costs and enhance mission flexibility, positioning it as a critical component in future space exploration and satellite deployment. VTOL (Vertical Takeoff and Landing) vehicles, including advanced eVTOL aircraft, promise transformative urban air mobility solutions with zero-emission designs, addressing congestion and environmental challenges. Innovations in materials, propulsion, and autonomous control systems drive the convergence of VTVL and VTOL technologies, accelerating vertical liftoff advancements across aerospace and urban transportation industries.
Thrust vector control
Thrust vector control in VTVL vehicles enables precise vertical landing by adjusting engine nozzles, whereas VTOL aircraft combine thrust vectoring with aerodynamic control surfaces for versatile multi-directional flight.
Propulsive landing
VTVL (Vertical Takeoff, Vertical Landing) utilizes controlled thrust for precise propulsive landing, contrasting VTOL (Vertical Takeoff and Landing) which often relies on aerodynamic lift or tiltrotors for landing stability.
Rotorcraft dynamics
VTOL rotorcraft rely on vertical thrust vectoring with rotating blades for lift and control, whereas VTVL vehicles utilize fixed thrusters for vertical takeoff and landing, resulting in distinct aerodynamic and stability dynamics.
Retrorocket descent
VTVL landers use retrorocket descent to achieve controlled vertical touchdown by decelerating their downward velocity precisely, whereas VTOL aircraft rely on continuous engine thrust modulation for hover and landing without dedicated retrorockets.
Hover stabilization
VTVL rockets maintain hover stabilization through precise thrust vector control using gimbaled engines, while VTOL aircraft rely on aerodynamic control surfaces and vertical lift fans for stable hovering.
Aerodynamic surfaces
VTVL rockets rely primarily on thrust vector control for landing and minimal aerodynamic surfaces, while VTOL aircraft use extensive aerodynamic surfaces such as wings and control surfaces for stability and maneuvering during vertical takeoff and landing.
Reaction control system (RCS)
Reaction control systems (RCS) in VTVL vehicles enable precise orientation adjustments during vertical descent and landing, whereas VTOL aircraft primarily rely on aerodynamic control surfaces and engine vectoring for maneuvering.
Launch escape system
VTVL launch escape systems provide rapid vertical thrust for crew safety during launch failures, whereas VTOL systems prioritize controlled horizontal landing but may require more complex abort procedures.
Orbital insertion
VTVL (Vertical Takeoff Vertical Landing) rockets enable precise orbital insertion through controlled descent and landing, while VTOL (Vertical Takeoff and Landing) aircraft prioritize atmospheric maneuverability without the capability for orbital insertion.
Transition flight phase
The transition flight phase in VTVL rockets involves a controlled vertical descent and landing after vertical takeoff, whereas VTOL aircraft seamlessly shift between vertical lift and forward flight modes using rotors or tilt mechanisms.

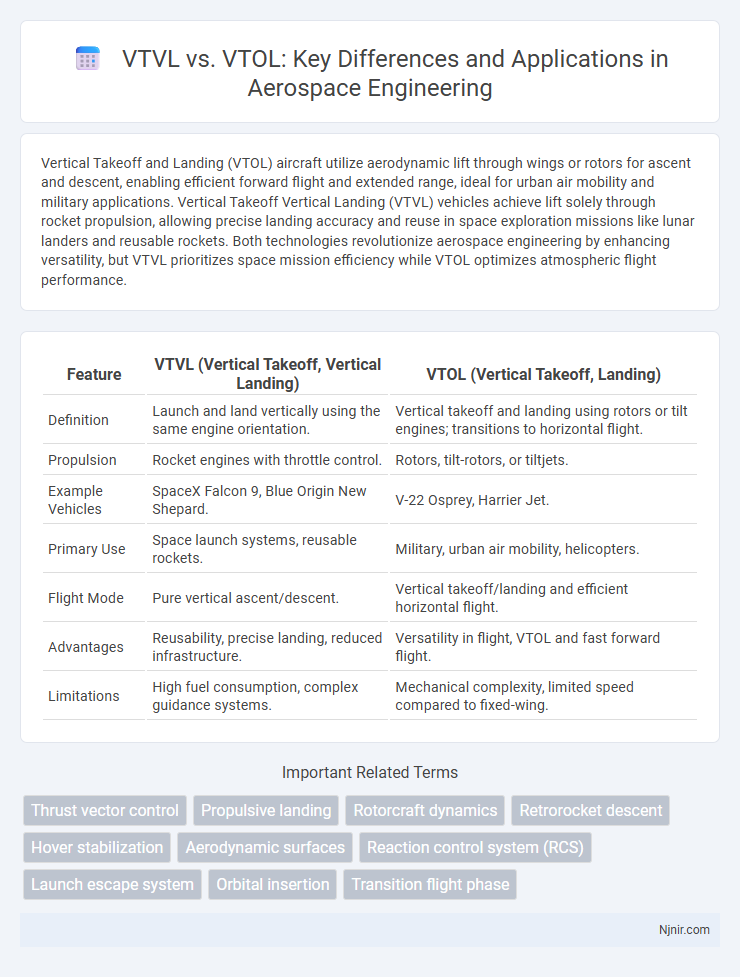

VTVL vs VTOL Infographic
