njnir.com Winglets and raked wingtips both improve aerodynamic efficiency by reducing induced drag but achieve this through different design approaches. Winglets are vertical fins at the wingtip that redirect airflow, enhancing lift and fuel efficiency, while raked wingtips extend and sweep back the wingtip to reduce vortex formation and improve lift-to-drag ratio. Aircraft with raked wingtips often experience smoother airflow and better performance at high speeds, whereas winglets are more commonly used for versatile efficiency improvements across various flight conditions.
Table of Comparison
| Feature | Winglets | Raked Wingtips |
|---|---|---|
| Design | Vertical extensions at wingtip | Extended, swept-back wingtip section |
| Purpose | Reduce wingtip vortices, lower drag | Increase effective wingspan, improve lift-to-drag ratio |
| Drag Reduction | Up to 5-7% reduction in induced drag | Up to 5-10% reduction in induced drag |
| Fuel Efficiency | Improves fuel burn by ~3-5% | Improves fuel burn by ~4-6% |
| Structural Impact | Minimal structural changes, lighter retrofit | Requires wing redesign, structural reinforcement |
| Common Usage | Commercial narrow-body and regional jets | Large wide-body aircraft, long-range jets |
| Examples | Boeing 737 Next Gen, Airbus A320neo | Boeing 787 Dreamliner, Boeing 777X |
Introduction to Wingtip Devices in Aerospace Engineering
Winglets and raked wingtips are advanced wingtip devices designed to improve aerodynamic efficiency by reducing vortex drag generated at aircraft wing edges. Winglets are vertical or angled extensions that help manage wingtip vortices, leading to fuel savings and enhanced performance during cruise. Raked wingtips, featuring extended and swept-back wing edges, enhance lift-to-drag ratio by smoothing airflow and delaying vortex formation, commonly used in modern commercial aircraft designs.
Winglets: Design, Function, and Evolution
Winglets are aerodynamic devices mounted at the tips of aircraft wings, designed to reduce wingtip vortices and decrease induced drag, thereby improving fuel efficiency and range. Their design has evolved from simple vertical extensions to advanced blended and split winglets, optimizing airflow and structural integration. Continuous advancements in winglet technology enhance lift-to-drag ratio and reduce carbon emissions, making them essential in modern commercial and private aviation.
Raked Wingtips: Concept and Structural Features
Raked wingtips extend the wing leading edge backward and upward, enhancing aerodynamic efficiency by reducing vortex drag and improving lift-to-drag ratio. Their structural design involves smoothly tapered, swept-back panels that integrate seamlessly with the main wing, often requiring reinforced spars and ribs to withstand aerodynamic loads. These wingtips contribute to fuel savings and increased range on aircraft like the Boeing 787 and 777X by optimizing airflow and minimizing induced drag.
Aerodynamic Performance Comparison
Winglets increase lift-to-drag ratio by reducing induced drag through vortex suppression at wingtips, improving fuel efficiency especially during cruise phases. Raked wingtips extend the wing span with a swept-back design, enhancing aerodynamic efficiency by reducing vortex strength and delaying flow separation, leading to better overall lift distribution and lower drag at higher speeds. Comparative studies indicate raked wingtips offer superior drag reduction and performance gains on long-haul aircraft, while winglets provide more versatile improvements across various flight regimes.
Fuel Efficiency and Environmental Impact
Winglets and raked wingtips both enhance fuel efficiency by reducing aerodynamic drag; winglets achieve this by minimizing wingtip vortices, leading to approximately 3-5% fuel savings, while raked wingtips extend the wingspan to improve lift-to-drag ratio, contributing up to 4% fuel reduction. The reduced fuel consumption from both designs lowers CO2 emissions, positively impacting environmental sustainability in aviation. Airlines adopting advanced wingtip designs benefit from cost savings and contribute to global efforts in reducing aviation's carbon footprint.
Structural Integration and Weight Considerations
Winglets are typically smaller, vertical extensions that attach to the wingtip, requiring additional structural reinforcement to manage aerodynamic loads, which can increase overall aircraft weight. Raked wingtips involve an extended, angled wingtip integrated into the existing wing structure, often allowing for more efficient load distribution and potentially lower structural weight penalties. The choice between winglets and raked wingtips hinges on balancing aerodynamic benefits with structural integration complexity and weight implications for optimized aircraft performance.
Operational Performance: Short-Haul vs Long-Haul
Winglets enhance short-haul operational performance by reducing drag and improving fuel efficiency during frequent takeoffs and landings, ideal for regional and domestic routes. Raked wingtips optimize long-haul flights by increasing lift-to-drag ratio and improving aerodynamic efficiency at cruising speeds, significantly lowering fuel burn on extended routes. Airlines deploy winglets on aircraft primarily operating short-haul sectors, while raked wingtips are favored for long-haul aircraft due to sustained aerodynamic benefits over prolonged flight durations.
Manufacturing and Maintenance Implications
Winglets typically involve complex aerodynamic surfaces that require precise composite manufacturing techniques, increasing production costs but enhancing fuel efficiency. Raked wingtips are often simpler to fabricate using traditional metalworking processes, resulting in potentially lower manufacturing expenses and easier structural integration. Maintenance of winglets can be more demanding due to susceptibility to damage from ground handling and the need for specialized repair methods, whereas raked wingtips usually benefit from robustness and simpler maintenance protocols.
Industry Adoption: Aircraft Types and Case Studies
Winglets have seen widespread adoption in commercial jetliners such as the Boeing 737 and Airbus A320 families, improving fuel efficiency and reducing emissions for short- to medium-haul flights. Raked wingtips are primarily utilized on larger wide-body aircraft like the Boeing 777 and 787, where their aerodynamic design enhances long-range performance by minimizing drag. Case studies of airlines operating these aircraft demonstrate notable fuel savings and operational cost reductions directly linked to the integration of these wingtip technologies.
Future Trends in Wingtip Technology
Emerging trends in wingtip technology emphasize the integration of adaptive materials and smart sensors to enhance the aerodynamic efficiency of both winglets and raked wingtips, potentially surpassing traditional fixed designs. Winglets continue to evolve with morphing capabilities that reduce drag and improve fuel efficiency, while raked wingtips are being optimized for quieter operation and structural weight reduction using advanced composites. Future developments are steering towards hybrid configurations that combine the drag-reducing benefits of winglets with the lift-enhancing attributes of raked wingtips, driven by the aviation industry's push for sustainable and cost-effective flight solutions.
Induced drag
Winglets reduce induced drag by redirecting wingtip vortices upward, while raked wingtips minimize induced drag through extended, swept-back planform design that delays vortex formation.
Span efficiency ratio
Raked wingtips increase span efficiency ratio more effectively than winglets by reducing induced drag and enhancing lift distribution across the wing span.
Tip vortex reduction
Raked wingtips reduce tip vortex more effectively than traditional winglets by extending the wing span and smoothing airflow, leading to lower drag and improved fuel efficiency.
Wing aspect ratio
Winglets increase the effective wing aspect ratio by extending the wingtip vertically, reducing induced drag, while raked wingtips physically lengthen the wingspan to improve aerodynamic efficiency by directly increasing the aspect ratio.
Load alleviation
Winglets mainly reduce induced drag by redirecting wingtip vortices, whereas raked wingtips improve load alleviation by distributing aerodynamic loads more evenly along the span, enhancing structural efficiency and delaying wing bending.
Structural weight penalty
Raked wingtips generally incur a lower structural weight penalty than winglets due to their smoother aerodynamic integration and reduced bending moments on the wing.
Cruise fuel burn
Raked wingtips reduce cruise fuel burn by up to 5% compared to traditional winglets due to their improved aerodynamic efficiency and lower induced drag.
Wing span constraints
Winglets improve aerodynamic efficiency within fixed wingspan constraints by reducing induced drag without increasing the aircraft's overall wingspan, whereas raked wingtips extend the wingspan to enhance lift-to-drag ratio but may exceed airport gate or structural span limitations.
Gate clearance
Raked wingtips generally require more gate clearance than winglets due to their extended span and swept-back design, impacting airport compatibility and taxiway maneuverability.
Transonic flow
Raked wingtips reduce transonic drag more effectively than winglets by smoothing airflow and delaying shockwave formation at high subsonic speeds.

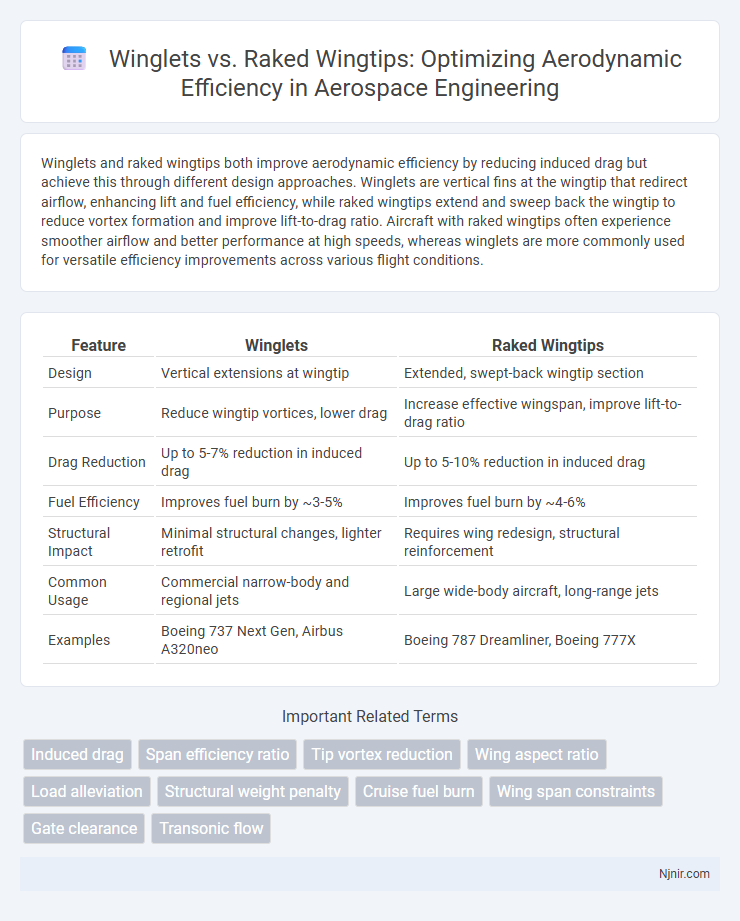

Winglets vs Raked wingtips Infographic
