njnir.com Reaction wheels provide precise attitude control through variable-speed flywheels that generate torque without expelling mass, making them ideal for fine adjustments in spacecraft orientation. Control moment gyros (CMGs) utilize gimbaled spinning rotors to produce higher torque outputs and faster response times, suitable for large satellites requiring rapid maneuvering. While reaction wheels offer simplicity and reliability, CMGs deliver superior agility at the cost of increased mechanical complexity and potential singularities in control algorithms.
Table of Comparison
| Feature | Reaction Wheels | Control Moment Gyros (CMGs) |
|---|---|---|
| Primary Function | Satellite attitude control via angular momentum exchange | High-torque attitude control using gyroscopic precession |
| Torque Output | Low to moderate torque | High torque capability |
| Response Time | Slower reaction due to lower torque | Faster, suitable for rapid maneuvers |
| Complexity | Simple mechanical design | Complex gimbal mechanisms and control algorithms |
| Power Consumption | Lower power consumption | Higher power requirements |
| Size & Weight | Compact and lightweight | Larger and heavier due to gimbal assemblies |
| Reliability | High reliability with fewer moving parts | Potentially lower reliability due to mechanical complexity |
| Applications | Small to medium satellites, fine attitude adjustments | Large satellites, rapid or large-angle maneuvers |
Introduction to Attitude Control Systems
Reaction wheels and control moment gyros (CMGs) are critical components in spacecraft attitude control systems, enabling precise orientation adjustments without expelling propellant. Reaction wheels operate by spinning flywheels to generate angular momentum, suitable for fine pointing and stabilization in low-torque applications. Control moment gyros provide higher torque and faster maneuvering by changing the orientation of spinning rotors, making them ideal for large spacecraft requiring rapid and agile attitude changes.
Principles of Reaction Wheels
Reaction wheels operate by spinning flywheels at varying speeds to generate angular momentum, enabling precise spacecraft attitude control without expelling mass. These devices rely on principles of conservation of angular momentum, allowing smooth and continuous torque application by accelerating or decelerating the wheels. Compared to control moment gyros, reaction wheels offer simpler mechanical designs but provide lower torque, making them ideal for fine adjustments rather than rapid large-angle maneuvers.
Fundamentals of Control Moment Gyros
Control Moment Gyros (CMGs) generate torque by tilting spinning rotors, exploiting angular momentum to achieve high-precision spacecraft attitude control with minimal power consumption. Unlike reaction wheels that vary rotor speed to adjust angular momentum, CMGs maintain constant rotor speed and achieve control through gimbal-induced torque vectoring, enabling faster and larger torque output. The fundamental advantage of CMGs lies in their capability to produce substantial control torques essential for agile maneuvers and maintaining stability in satellites and space stations.
Mechanisms of Torque Generation
Reaction wheels generate torque by varying the spin rate of a rotating mass, utilizing angular momentum conservation to adjust spacecraft orientation precisely. Control moment gyros (CMGs) produce torque through the mechanical gimbal rotation of a spinning rotor, leveraging gyroscopic precession to exert larger, rapid torques compared to reaction wheels. CMGs enable more efficient torque generation for agile spacecraft maneuvers, while reaction wheels provide finer control with simpler mechanical design.
Comparative Performance: Reaction Wheels vs Control Moment Gyros
Reaction wheels provide precise attitude control with low noise and are ideal for small to medium-sized spacecraft due to their simplicity and reliability. Control moment gyros deliver higher torque and faster response times, enabling rapid maneuvers for large satellites and space stations, but at the cost of increased mechanical complexity and power consumption. The choice between reaction wheels and control moment gyros depends on mission requirements, including agility, payload size, and power availability.
Applications in Spacecraft Attitude Control
Reaction wheels provide precise, continuous control of spacecraft orientation by storing angular momentum, making them ideal for fine-tuning attitude in satellites and telescopes. Control moment gyros (CMGs) generate larger control torques through gimbal-mounted spinning rotors, enabling rapid and agile maneuvering of larger spacecraft like space stations and interplanetary probes. The choice between reaction wheels and CMGs depends on mission requirements for torque capacity, agility, and reaction speed in spacecraft attitude control systems.
Power and Mass Considerations
Reaction wheels typically consume less power and have lower mass compared to control moment gyroscopes (CMGs), making them ideal for small to medium-sized satellites requiring precise attitude control with limited energy resources. CMGs generate higher torque output for rapid maneuvers but demand significantly greater power supply and structural support due to their complex gimbal systems and heavier mass. Selecting between reaction wheels and CMGs involves balancing power availability, mass constraints, and required agility for mission-specific spacecraft operations.
Reliability and Failure Modes
Reaction wheels offer high reliability due to simpler mechanical components and lower susceptibility to wear compared to control moment gyros (CMGs), which contain complex gimbal mechanisms prone to friction and mechanical failure. Failure modes for reaction wheels typically involve bearing degradation and motor burnout, whereas CMGs are more vulnerable to gimbal lock and vibration-induced failures. Reaction wheels are preferred for missions requiring long-term dependability, while CMGs provide higher torque but demand more intensive maintenance and fault management systems.
Operational Constraints and Limitations
Reaction wheels offer precise attitude control for spacecraft but are limited by maximum angular momentum storage, leading to saturation and the need for desaturation maneuvers using magnetic torquers or thrusters. Control moment gyros provide rapid and high-torque attitude adjustments but face mechanical complexity, higher power consumption, and potential gimbal lock constraints. Both systems require careful management of operational constraints such as thermal limits, vibration impacts, and lifetime degradation to ensure sustained spacecraft stability and maneuverability.
Future Trends in Spacecraft Attitude Control Technologies
Future trends in spacecraft attitude control technologies emphasize the integration of reaction wheels and control moment gyros (CMGs) to optimize precision and agility in satellite orientation. Enhanced materials and miniaturization are driving developments in reaction wheels for lower power consumption and longer lifespan, while advanced CMGs are being designed with variable-speed capabilities to improve torque efficiency and reduce mechanical wear. Emerging hybrid systems combining reaction wheels and CMGs are anticipated to enable more robust and flexible attitude control solutions for next-generation space missions.
Attitude Control
Reaction wheels provide precise, low-torque attitude control through variable-speed spinning masses, while control moment gyros deliver higher torque and faster reorientation using gimbaled spinning rotors, making CMGs suitable for rapid spacecraft maneuvering.
Momentum Storage
Reaction wheels provide limited momentum storage by spinning flywheels at variable speeds to control spacecraft attitude, while control moment gyros offer higher momentum storage capacity and faster torque response by tilting spinning rotors to generate control torques.
Gyroscopic Torque
Control moment gyros generate higher gyroscopic torque than reaction wheels, enabling faster and more precise spacecraft attitude control.
Actuator Saturation
Reaction wheels experience actuator saturation due to limited angular momentum storage capacity, whereas control moment gyros mitigate saturation by leveraging gyroscopic torque to provide higher torque output and sustain longer maneuvering capabilities.
Desaturation Maneuver
Reaction wheels require frequent desaturation maneuvers using thrusters to offload accumulated angular momentum, whereas control moment gyros enable faster attitude control with less frequent and less intensive desaturation due to their higher torque capacity.
Gimbal Rate
Control moment gyroscopes offer higher gimbal rates than reaction wheels, enabling faster and more precise spacecraft attitude adjustments.
Spin Axis Alignment
Reaction wheels provide fine spin axis alignment through variable speed control of internal wheels, while control moment gyros achieve rapid and larger torque-induced spin axis reorientation by gimbal tilting of spinning rotors.
Precession Control
Reaction wheels provide precise but slower precession control through angular momentum storage, while control moment gyros enable faster and more powerful precession adjustments by actively tilting spinning rotors to generate torque.
Torque Amplification
Control moment gyros provide significantly higher torque amplification compared to reaction wheels, enabling faster and more precise satellite attitude adjustments.
Three-Axis Stabilization
Reaction wheels provide precise Three-Axis Stabilization through controlled spin rate changes, while control moment gyros deliver faster and stronger torque by altering rotor gimbal angles for agile spacecraft maneuvering.

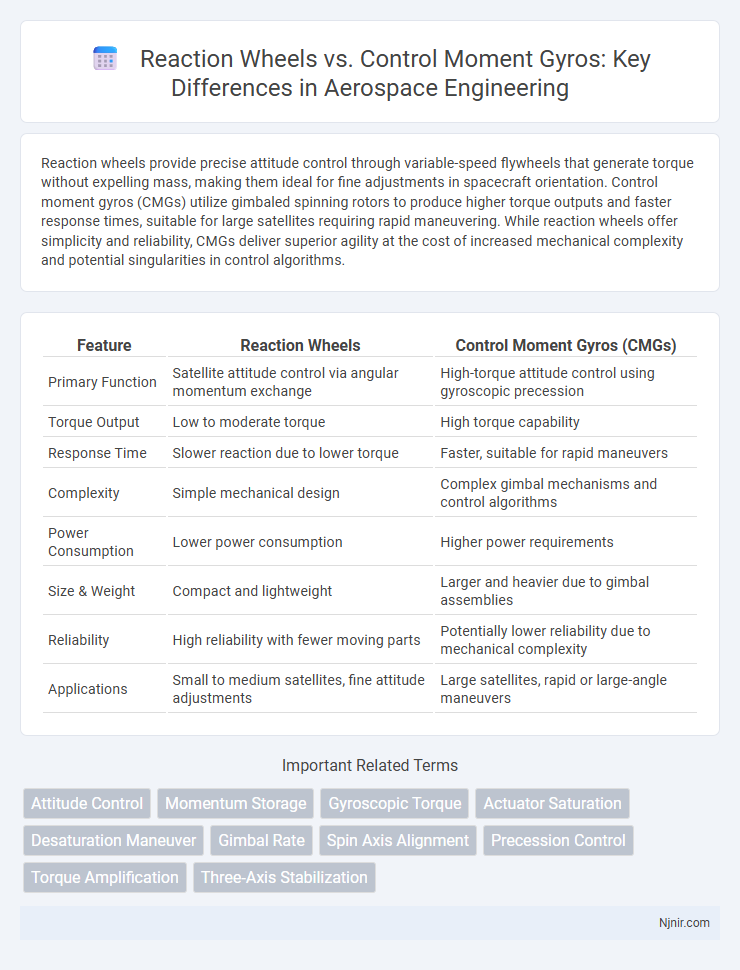

reaction wheels vs control moment gyros Infographic
