njnir.com Shear walls provide superior lateral stiffness and strength, making them highly effective in resisting seismic and wind loads in high-rise buildings. Moment frames, composed of beams and columns connected rigidly, offer greater architectural flexibility and ductility but may require larger member sizes to achieve comparable lateral resistance. Selecting between shear walls and moment frames depends on factors such as building height, layout constraints, and desired performance under lateral forces.
Table of Comparison
| Feature | Shear Wall | Moment Frame |
|---|---|---|
| Primary Function | Resists lateral forces via vertical walls | Resists lateral forces through beam-column connections |
| Structural System | Rigid walls integrated into structure | Flexible framing with moment-resisting joints |
| Material | Concrete or masonry | Steel or reinforced concrete |
| Lateral Load Resistance | High stiffness and strength | Moderate stiffness, high ductility |
| Architectural Flexibility | Limited openings, less flexible | More open space, flexible design |
| Construction Cost | Usually lower due to simpler detailing | Usually higher due to complex connections |
| Seismic Performance | Good energy dissipation, less ductile | Excellent ductility and energy dissipation |
| Typical Applications | Residential buildings, shear-dominated frames | Commercial buildings, frames requiring open spaces |
Introduction to Shear Walls and Moment Frames
Shear walls are structural elements designed to resist lateral forces by distributing loads vertically and providing rigidity against wind and seismic activity. Moment frames consist of beams and columns connected rigidly to allow rotation and bending, offering flexibility while supporting lateral forces through frame action. Both shear walls and moment frames are critical components in modern building design for enhancing structural stability and earthquake resistance.
Structural Principles: Shear Wall vs Moment Frame
Shear walls provide lateral stability by resisting horizontal forces through their rigid vertical panels, effectively transferring loads to the foundation and minimizing building sway. Moment frames rely on the bending resistance of beams and columns connected by rigid joints to allow flexibility while resisting lateral forces through frame action. The structural principle of shear walls emphasizes stiffness and strength concentrated in wall elements, whereas moment frames distribute lateral resistance throughout the frame, offering ductility and energy dissipation during seismic events.
Material Selection and Construction Techniques
Shear walls primarily utilize reinforced concrete or masonry materials, offering high stiffness and strength to resist lateral forces in buildings, especially in seismic zones. Moment frames rely on steel or reinforced concrete beams and columns designed for ductility, allowing the structure to bend without failing during dynamic loads. Construction techniques for shear walls involve casting solid or composite wall panels with embedded reinforcement, while moment frames require precise welding or fastening of steel members and careful alignment to maintain frame integrity under stress.
Lateral Load Resistance Capabilities
Shear walls provide superior lateral load resistance in buildings by acting as stiff vertical panels that transfer forces directly to the foundation, making them highly effective against wind and seismic forces. Moment frames rely on beam-column connections designed to flex and absorb energy, offering ductility but generally lower stiffness compared to shear walls. Structural engineers often select shear walls for high-rise buildings requiring greater lateral stiffness, while moment frames are favored for flexible designs where architectural openness is a priority.
Architectural Flexibility in Design
Shear walls provide superior lateral stiffness and support but limit architectural flexibility due to their fixed placement and thickness requirements. Moment frames offer enhanced design freedom by allowing open floor plans and larger window openings, as their structural elements rely on beam-column connections rather than rigid wall panels. Choosing between shear walls and moment frames impacts building aesthetics, spatial configuration, and functionality based on the balance between structural demands and architectural creativity.
Seismic Performance Comparison
Shear walls provide superior seismic performance by offering high lateral stiffness and damping capacity, effectively resisting earthquake-induced forces and minimizing building sway. Moment frames, while allowing greater architectural flexibility and ductility, generally exhibit lower lateral stiffness, which can lead to increased drift and deformation under seismic loads. Structural engineering practices often combine both systems to optimize seismic resilience, balancing stiffness and energy dissipation for enhanced safety during earthquakes.
Cost Implications and Economic Considerations
Shear walls typically offer lower construction costs due to simpler installation and reduced material needs, making them economically advantageous for low-rise to mid-rise buildings. Moment frames, while more expensive due to complex connections and higher labor requirements, provide greater architectural flexibility and seismic performance, justifying the investment in high-risk zones. Evaluating cost implications involves balancing initial expenditures against long-term benefits like durability, maintenance, and compliance with seismic codes.
Space Utilization and Layout Efficiency
Shear walls offer superior space utilization by providing high lateral stiffness with compact wall footprints, allowing for more open floor plans and efficient use of interior space in residential and commercial buildings. Moment frames require larger beam and column sections to resist lateral loads, often reducing usable floor area and complicating flexible layout designs due to the presence of extensive framing members. Optimizing layout efficiency favors shear wall systems in structures where maximizing open space and minimizing architectural constraints are critical design priorities.
Maintenance and Durability Factors
Shear walls offer enhanced durability due to their rigid concrete or masonry construction, which requires minimal maintenance compared to moment frames that rely on steel or reinforced concrete beams and columns subject to corrosion and fatigue. Moment frames demand regular inspections and maintenance of connections and welds to ensure long-term structural integrity, while shear walls generally exhibit greater resistance to environmental wear and seismic forces. Proper maintenance schedules for moment frames are crucial to prevent deterioration, whereas shear walls typically maintain performance with less frequent upkeep.
Choosing the Right System for Your Project
Choosing the right structural system depends on project requirements such as seismic performance, architectural flexibility, and cost. Shear walls offer superior lateral resistance and stiffness ideal for tall buildings in high seismic zones, while moment frames provide greater architectural freedom and ductility suitable for irregular layouts. Evaluating factors like building height, load conditions, and design constraints ensures optimal selection between shear wall and moment frame systems for structural integrity and efficiency.
Lateral Force-Resisting Systems
Shear walls provide rigid lateral force resistance with high stiffness and strength, while moment frames offer flexibility and ductility, allowing buildings to withstand seismic lateral forces through beam-column joint rotation.
Base Shear Distribution
Shear walls provide concentrated base shear resistance primarily at lower building levels, while moment frames distribute base shear more uniformly along the height, enhancing lateral flexibility.
Ductility Ratio
Shear walls typically exhibit higher ductility ratios than moment frames, enhancing structural energy dissipation and seismic performance.
Story Drift Control
Shear walls provide superior story drift control compared to moment frames by offering increased lateral stiffness and rigidity in building structures.
Rigid Diaphragm Action
Shear walls provide superior rigid diaphragm action by distributing lateral forces evenly through their stiffness, while moment frames rely on beam-column connections that offer flexibility but less effective diaphragm behavior.
Seismic Performance Factors
Shear walls provide superior seismic performance by offering high lateral stiffness and strength, while moment frames allow greater flexibility and energy dissipation but generally exhibit lower lateral stiffness under seismic loads.
Flexural Stiffness
Shear walls provide significantly higher flexural stiffness compared to moment frames, enhancing a building's lateral load resistance and structural stability.
Shear Transfer Mechanisms
Shear walls transfer lateral loads to the foundation through vertical shear forces and axial load paths, providing higher stiffness and strength compared to moment frames, which rely primarily on beam-column moment resistance for shear transfer.
Coupling Beams
Coupling beams in shear wall systems enhance lateral stiffness and energy dissipation by connecting adjacent walls, while moment frames rely on beam-column joints without coupling beams for rotational resistance and flexibility.
Plastic Hinge Formation
Plastic hinge formation in shear walls occurs primarily at the base due to axial compression and bending, whereas in moment frames, hinges typically form at beam ends under flexural deformation.

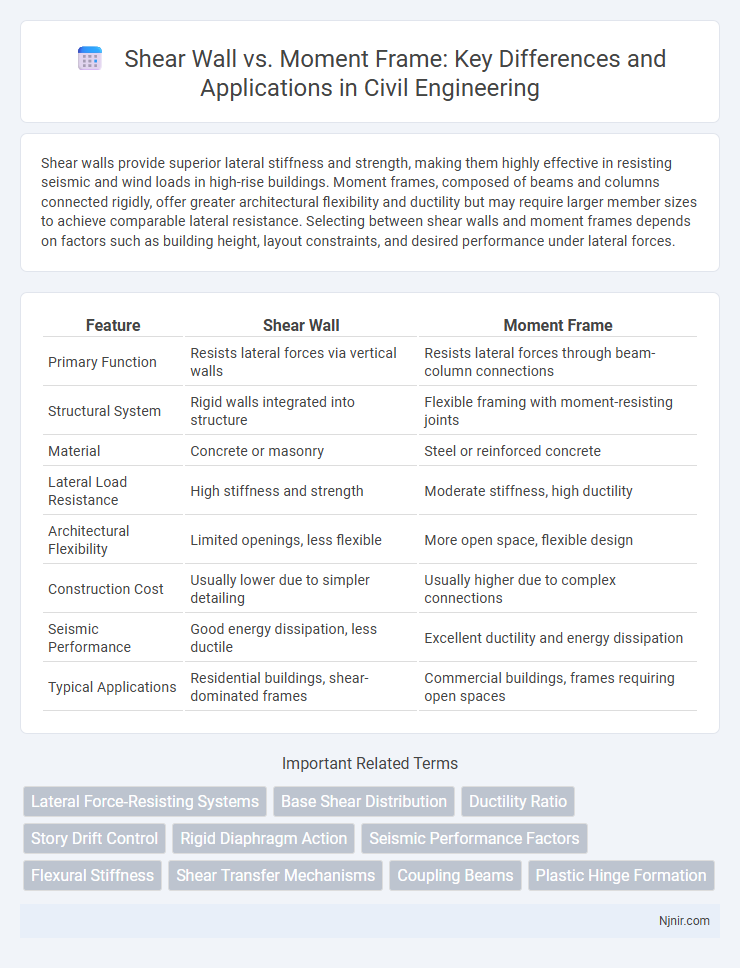

Shear Wall vs Moment Frame Infographic
