njnir.com Seismic isolators reduce earthquake forces by decoupling the building from ground motion, effectively absorbing seismic energy and minimizing structural damage. Shear walls resist lateral forces through rigid vertical elements that transfer earthquake loads to the foundation, enhancing building stiffness and stability. While seismic isolators prioritize flexibility and energy dissipation, shear walls focus on rigidity and load resistance, making each system suitable for different design requirements and seismic conditions.
Table of Comparison
| Feature | Seismic Isolators | Shear Walls |
|---|---|---|
| Primary Function | Decouple structure from ground motion to reduce seismic forces | Resist lateral forces by providing stiffness and strength |
| Seismic Performance | Significantly reduces building acceleration and deformation | Limits lateral displacement by absorbing seismic energy |
| Location in Structure | Placed between foundation and superstructure | Integrated into building walls, typically around cores or perimeter |
| Cost Impact | Higher initial installation and maintenance costs | Moderate construction cost, less maintenance |
| Architectural Flexibility | Allows more flexible design and open interiors | Restricts architectural layout due to wall placement |
| Retrofit Suitability | Highly effective for retrofit of existing buildings | Limited retrofit applicability, often requires structural modification |
| Typical Applications | Hospitals, bridges, high-value structures | Residential, commercial, and institutional buildings |
Introduction to Seismic Isolators and Shear Walls
Seismic isolators are advanced structural components designed to decouple a building from ground motion, significantly reducing earthquake forces transmitted to the structure. Shear walls are vertical structural elements that provide rigidity and resist lateral seismic forces through their stiffness and strength. Both technologies serve critical roles in earthquake engineering, with isolators enhancing base flexibility and shear walls improving overall building stability.
Fundamental Principles: How Seismic Isolators and Shear Walls Work
Seismic isolators function by decoupling a structure from ground motion, using flexible bearings or sliders that absorb and dissipate seismic energy, reducing building acceleration and deformation. Shear walls work by providing lateral stiffness and strength, resisting horizontal forces through their rigid, vertical plane, thus controlling drift and maintaining structural integrity during an earthquake. Both systems aim to mitigate seismic impacts but achieve this through fundamentally different mechanisms: base isolation for movement reduction versus structural reinforcement for force resistance.
Comparative Structural Performance During Earthquakes
Seismic isolators significantly reduce the transfer of ground motion to a building by decoupling the structure from the shaking foundation, resulting in lower acceleration and displacement responses compared to shear walls. Shear walls provide lateral stiffness and strength that resist seismic forces but transmit higher seismic energy to the structure, often leading to increased internal stresses and potential damage. Performance evaluations show seismic isolators excel in minimizing structural damage and ensuring occupant safety during strong earthquakes, whereas shear walls offer cost-effective stiffness but can result in more significant damage under severe seismic events.
Design Criteria and Material Selection
Seismic isolators require materials with high elasticity and durability, such as laminated rubber or lead-core bearings, designed to decouple the structure from ground motion and reduce seismic forces, focusing on flexibility and energy dissipation. Shear walls utilize reinforced concrete or masonry with high stiffness and strength to resist lateral loads by providing rigidity and transferring seismic forces to the foundation, prioritizing robustness and load-bearing capacity. Design criteria for seismic isolators emphasize displacement capacity and damping properties, while shear wall design centers on shear strength, ductility, and integration with the building's structural system.
Installation Processes and Construction Methods
Seismic isolators require precise foundation preparation and the installation of bearings designed to decouple the building from ground motion, often involving specialized equipment and skilled labor to ensure proper alignment and performance. Shear walls are constructed using reinforced concrete or masonry integrated into the building's framework during the initial construction phase, with emphasis on formwork, reinforcement placement, and concrete curing to achieve structural rigidity. Installation of seismic isolators usually occurs after the main structural framework is completed, whereas shear walls are integral to the early stages of construction, contributing to lateral load resistance throughout the building's lifecycle.
Cost Analysis: Initial Investment and Long-term Savings
Seismic isolators typically require a higher initial investment compared to shear walls due to advanced materials and installation complexity. However, their superior ability to reduce structural damage results in significant long-term savings on repair and maintenance costs. Shear walls offer lower upfront costs but may lead to increased expenses over time due to potential structural wear during earthquakes and less effective energy dissipation.
Maintenance Requirements and Lifecycle Considerations
Seismic isolators require regular inspection and occasional replacement of rubber or sliding components to maintain optimal performance, contributing to moderate maintenance costs throughout the building's lifecycle. Shear walls demand less frequent maintenance but can incur higher repair expenses after seismic events due to potential cracking and structural damage. Lifecycle considerations favor seismic isolators for buildings in high seismic zones seeking long-term resilience and reduced post-earthquake repair needs, while shear walls provide a cost-effective initial solution with simpler upkeep.
Suitability for Different Building Types and Heights
Seismic isolators are ideal for high-rise buildings and critical structures, offering enhanced vibration control by decoupling the building from ground motion, which reduces seismic forces transmitted to the structure. Shear walls provide substantial lateral stiffness and strength, making them suitable for low to mid-rise buildings where load-bearing capacity and rigidity are prioritized. The choice between seismic isolators and shear walls depends on building height, structural requirements, and performance objectives during earthquakes.
Case Studies: Global Applications and Success Stories
Seismic isolators demonstrated remarkable effectiveness in Japan's Kobe earthquake recovery, reducing structural damage and accelerating post-quake rebuilding. Shear walls showcased their resilience in California's Northridge earthquake, providing critical lateral stability and enhancing occupant safety in high-rise buildings. Both methods have been integrated in diverse global projects, with case studies from New Zealand and Italy highlighting how combining isolators and shear walls optimizes seismic performance and structural longevity.
Future Trends and Innovations in Seismic Protection Systems
Seismic isolators are evolving with advanced materials like ultra-high-performance elastomers and adaptive systems that adjust stiffness in real-time, enhancing building resilience during earthquakes. Shear walls are integrating composite materials and smart sensors for damage detection and self-healing capabilities, improving structural durability and post-quake safety assessments. Future seismic protection systems will increasingly combine isolators and smart shear walls in hybrid solutions, leveraging AI-based monitoring and predictive analytics for proactive earthquake damage mitigation.
Base Isolation
Seismic isolators enhance earthquake resilience by decoupling a structure from ground motion through flexible bearings, offering superior base isolation compared to shear walls that primarily absorb lateral forces without isolating the foundation.
Damping Ratio
Seismic isolators typically provide a higher damping ratio of 10-30% compared to shear walls, which generally offer lower damping ratios around 2-5%, enhancing energy dissipation and reducing structural damage during earthquakes.
Lateral Stiffness
Seismic isolators significantly reduce lateral stiffness by decoupling a structure from ground motion, whereas shear walls increase lateral stiffness to resist seismic forces through rigid structural support.
Energy Dissipation
Seismic isolators primarily enhance energy dissipation by reducing building motion through flexible bearings, whereas shear walls absorb seismic energy by resisting lateral forces with structural rigidity.
Rocking Mechanism
Seismic isolators reduce structural damage by allowing controlled rocking and energy dissipation at the building base, whereas shear walls resist lateral forces through rigidity and stiffness without accommodating rocking motion.
Ductile Detailing
Seismic isolators enhance building flexibility and reduce ground motion impact, whereas shear walls require meticulous ductile detailing to absorb and dissipate seismic energy through controlled deformation.
Story Drift
Seismic isolators significantly reduce story drift compared to shear walls by decoupling the building from ground motion and allowing controlled horizontal movement.
Hybrid Isolation Systems
Hybrid isolation systems combine seismic isolators and shear walls to enhance earthquake resilience by simultaneously reducing structural vibrations and providing lateral stiffness.
Moment Resisting Frames
Moment Resisting Frames combined with seismic isolators significantly reduce structural damage during earthquakes compared to traditional shear walls by enhancing flexibility and energy dissipation.
Seismic Performance Criteria
Seismic isolators enhance seismic performance by decoupling a structure from ground motion to reduce acceleration and damage, whereas shear walls improve lateral stiffness and strength yet transmit higher seismic forces to the building.

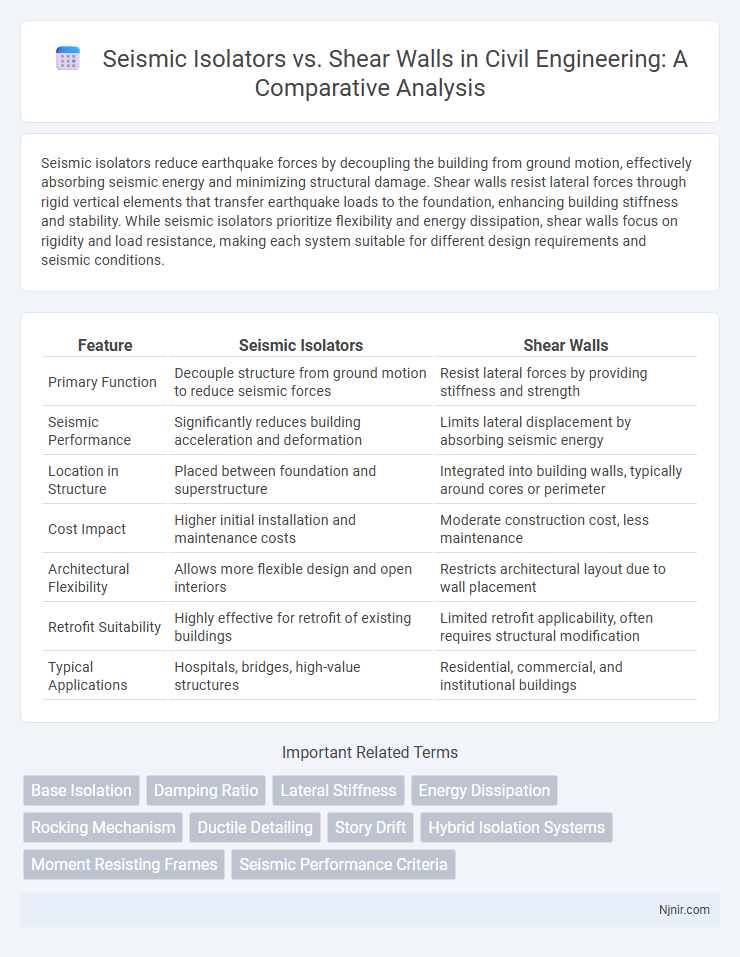

Seismic isolators vs Shear walls Infographic
