njnir.com Mechanically Stabilized Earth (MSE) walls utilize reinforcements such as geogrids or steel strips to enhance soil strength, enabling steeper slopes and reduced footprint compared to traditional gravity walls. Gravity walls rely solely on their own weight for stability, often requiring massive concrete or stone blocks to resist earth pressures, making them bulkier and less adaptable to varying site conditions. MSE walls offer cost-effective solutions with faster construction times while maintaining high structural performance in diverse geotechnical environments.
Table of Comparison
| Feature | MSE Wall (Mechanically Stabilized Earth) | Gravity Wall |
|---|---|---|
| Definition | Retaining wall reinforced with soil reinforcements like geogrids or strips. | Retaining wall stabilized by its own weight and mass. |
| Structure | Lightweight facing with reinforced backfill. | Heavy, massive concrete or stone block structure. |
| Height Capability | Effective for heights over 10 meters. | Generally limited to heights under 6 meters. |
| Foundation | Requires moderate foundation depth. | Needs deep, strong foundation due to large loads. |
| Cost | Cost-effective for tall walls due to less material use. | Higher cost for tall walls due to large volume of materials. |
| Construction Time | Faster installation with modular facing panels. | Longer construction time due to heavy material handling. |
| Seismic Performance | Good flexibility and seismic resistance. | Limited flexibility, prone to cracking under seismic loads. |
| Applications | Highway embankments, bridge abutments, urban retaining walls. | Low-height retaining structures, landscaping, temporary walls. |
Introduction to MSE Walls and Gravity Walls
Mechanically Stabilized Earth (MSE) walls combine soil reinforcement using tensile elements with compacted backfill to create stable retaining structures that are flexible and adaptable to various site conditions. Gravity walls rely solely on their mass, typically constructed from concrete or stone, to resist lateral earth pressures through weight and stability, making them suitable for smaller height applications or areas with limited space. MSE walls offer cost-effective and efficient solutions for high retaining walls, whereas gravity walls provide simplicity and durability for lower-height retention needs.
Fundamental Principles of MSE Walls
MSE walls rely on tensile reinforcement embedded within compacted backfill to create a composite mass that resists lateral earth pressures through friction and internal shear. This structural system distributes loads throughout the reinforced soil, reducing reliance on the wall facing's own weight unlike gravity walls, which depend primarily on their mass for stability. Reinforcements such as geogrids, strips, or mesh interact with the soil to provide enhanced tensile strength, allowing for taller and more flexible retaining structures.
Fundamental Principles of Gravity Walls
Gravity walls rely on their massive weight and mass to resist lateral earth pressures, using materials like concrete or stone to provide stability through sheer weight. The fundamental principle of gravity walls is to exert sufficient downward force to counteract soil pressure and prevent sliding or overturning without reinforcement. In contrast, MSE walls employ layers of geosynthetic reinforcement integrated with backfill, allowing for a more flexible and cost-effective solution that reduces the need for massive structural elements.
Construction Methods: MSE vs Gravity Walls
MSE walls utilize layered reinforcement with geosynthetic strips or metallic grids embedded within compacted soil, allowing for flexible and lightweight construction suited for steep slopes and limited foundation conditions. Gravity walls rely on massive concrete or stone blocks, using their own weight to resist lateral earth pressure, requiring substantial foundations and often longer construction times. The MSE method offers advantages in speed, cost-effectiveness, and adaptability, while gravity walls provide robust stability through mass and material strength.
Material Requirements and Types
MSE walls primarily utilize geosynthetic reinforcements such as steel strips or geotextiles combined with compacted fill, requiring less concrete and reinforcing steel compared to gravity walls. Gravity walls rely mainly on mass concrete or stone masonry, demanding substantial quantities of heavy materials like reinforced concrete or large blocks to resist lateral earth pressure through their own weight. Material optimization in MSE walls leads to cost efficiency and design flexibility, while gravity walls demand more robust, heavier materials for stability.
Structural Performance Comparison
Mechanically Stabilized Earth (MSE) walls utilize layered reinforcement with geosynthetics or metallic strips that interlock with the soil, providing superior tensile strength and flexibility under seismic and load variations compared to gravity walls, which rely primarily on their own weight for stability. MSE walls exhibit better performance in accommodating differential settlement and lateral earth pressures, reducing the risk of cracking and structural failure common in gravity walls under dynamic loading conditions. The enhanced load-distribution and ductility of MSE systems contribute to longer service life and lower maintenance costs relative to massive gravity retaining walls.
Cost and Economic Considerations
Mechanically Stabilized Earth (MSE) walls generally offer lower construction costs compared to gravity walls due to their use of modular facing panels and reinforced soil which requires less material and excavation. Gravity walls, typically constructed from concrete or stone, involve higher material and labor expenses because of their massive volume and foundation requirements. Economically, MSE walls provide faster installation times and versatility in height, making them cost-effective for large-scale projects while gravity walls may be preferred for smaller sites with limited space despite higher upfront costs.
Durability and Longevity
MSE walls utilize reinforcement materials like steel strips or geosynthetics combined with compacted backfill, enhancing structural durability and resistance to differential settlement compared to traditional gravity walls, which rely solely on mass weight for stability. The flexible design of MSE walls accommodates slight movements without cracking, significantly extending their service life beyond gravity walls, which are more prone to cracking and erosion due to rigid construction. Studies indicate that properly constructed MSE walls can last 50 to 75 years or more, outperforming gravity walls whose longevity typically ranges between 30 to 50 years under similar environmental conditions.
Site Suitability and Application Scenarios
Mechanically Stabilized Earth (MSE) walls excel in sites with limited space and poor foundation conditions due to their flexibility and ability to accommodate settlement, making them suitable for transportation corridors and urban areas. Gravity walls, relying on their mass to resist loads, require stable foundation conditions and ample space, often employed in low to medium height retaining applications such as landscaping or minor slope stabilization. MSE walls are preferred for high retaining height and seismic areas, while gravity walls are cost-effective for smaller projects with minimal lateral loads.
Environmental and Sustainability Aspects
MSE walls use geosynthetic reinforcement and compacted fill, reducing the need for large amounts of concrete or stone, which lowers carbon emissions and material extraction impacts compared to gravity walls. Gravity walls rely heavily on massive quantities of concrete or masonry, resulting in higher embodied energy and greater environmental disruption from quarrying and cement production. The flexible design and use of recycled materials in MSE walls enhance resource efficiency, making them a more sustainable choice for erosion control and slope stabilization in green construction projects.
Reinforcement Strips
MSE walls utilize flexible reinforcement strips embedded in compacted backfill to enhance soil stability, whereas gravity walls rely on their massive weight and do not incorporate reinforcement strips for structural support.
Modular Facing Panels
MSE walls with modular facing panels offer enhanced flexibility and faster installation compared to gravity walls, providing superior soil reinforcement and adaptability in varying terrain conditions.
Geogrid Reinforcement
MSE walls use geogrid reinforcement to enhance soil stability and allow for taller, more flexible structures compared to gravity walls that rely solely on their mass for stability.
Soil Backfill
MSE walls utilize engineered soil backfill with reinforcement layers to improve stability and reduce lateral earth pressure, whereas gravity walls rely on massive weight and typically use granular backfill for drainage and load management.
Mass Concrete
Mechanically Stabilized Earth (MSE) walls use layered soil reinforcements for flexibility and reduced concrete volume, whereas gravity walls rely solely on mass concrete for stability, requiring significantly more material and space.
Bearing Capacity
MSE walls exhibit higher bearing capacity than gravity walls due to their reinforced soil structure distributing loads more efficiently and reducing pressure on the foundation.
Segmental Retaining Wall
Segmental retaining walls in MSE systems use layered reinforcement and compacted backfill for enhanced stability and flexibility compared to traditional gravity walls relying solely on mass and concrete weight.
Drainage Composite
MSE walls utilize drainage composites to efficiently manage water flow and reduce hydrostatic pressure, whereas gravity walls rely on mass and may require extensive drainage systems to prevent water accumulation and structural failure.
Overturning Stability
MSE walls provide superior overturning stability compared to gravity walls due to their internal reinforcement and load distribution characteristics.
Differential Settlement
MSE walls exhibit significantly lower differential settlement compared to gravity walls due to their reinforced soil structure distributing loads more evenly and enhancing stability.

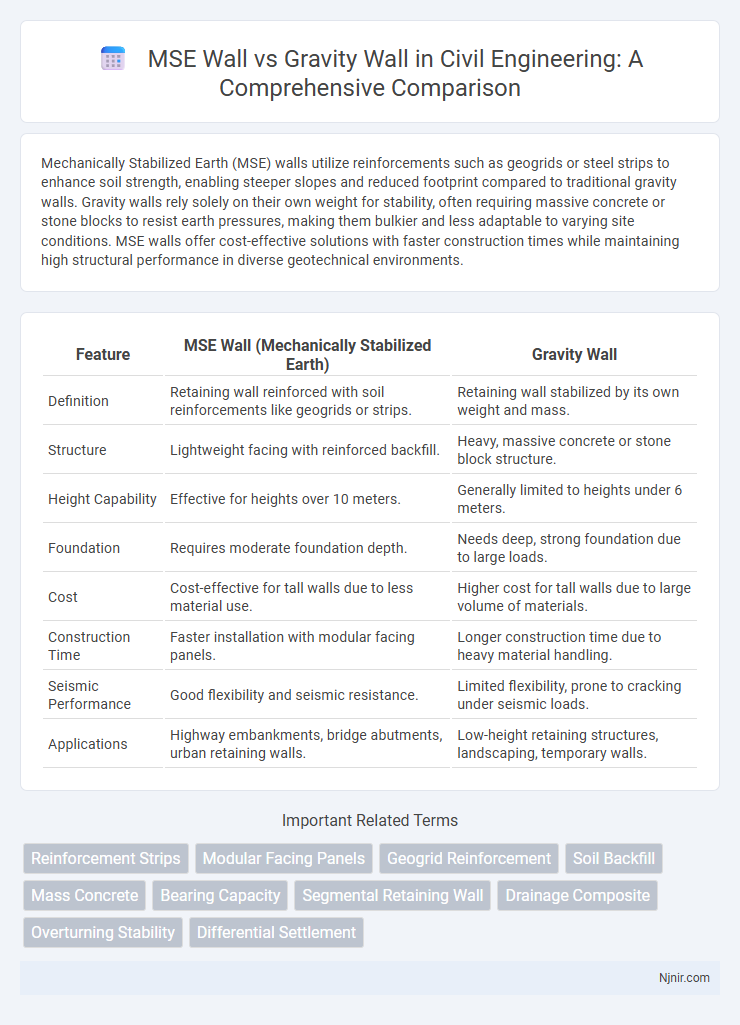

MSE wall (Mechanically Stabilized Earth) vs Gravity wall Infographic
