njnir.com Perforated pile walls offer enhanced drainage and reduced earth pressure compared to secant pile walls, making them ideal for groundwater control in deep excavations. Secant pile walls provide superior structural strength and watertightness through interlocking primary and secondary piles, suitable for heavy load-bearing applications. Both methods require careful selection based on soil conditions, load requirements, and project goals to ensure optimal performance and cost-effectiveness.
Table of Comparison
| Criteria | Perforated Pile Walls | Secant Pile Walls |
|---|---|---|
| Definition | Walls formed by overlapping bored piles with gaps (perforations) between piles. | Walls created by interlocking primary soft piles and secondary hard piles (secant piles). |
| Structural Strength | Moderate strength, suitable for light to medium load retention. | High strength, ideal for heavy load and deep excavation support. |
| Water Tightness | Lower water tightness due to gaps (perforations) between piles. | High water tightness from overlapping piles forming a continuous barrier. |
| Construction Cost | Generally lower cost due to simpler construction method. | Higher cost because of complex pile sequencing and increased materials. |
| Installation Time | Faster installation with fewer piles and simpler design. | Longer installation time due to sequential drilling and casting of piles. |
| Typical Usage | Suitable for retaining walls with low groundwater pressure and shallow excavations. | Preferred for deep excavations, urban construction, and water-retaining structures. |
| Ground Conditions | Effective in cohesive soils with lower risk of groundwater flow. | Suitable for varied soil conditions, including loose and saturated soils. |
| Environmental Impact | Less intrusive, produces less vibration and noise. | More intrusive, higher vibration and noise during installation. |
Introduction to Retaining Wall Systems in Civil Engineering
Perforated pile walls and secant pile walls are critical retaining wall systems used in civil engineering to support excavation and stabilize soil. Perforated pile walls consist of spaced piles with gaps or perforations allowing controlled soil movement and drainage, reducing earth pressure. Secant pile walls involve the construction of interlocking concrete piles providing a continuous, impermeable barrier, ideal for water retention and high-load conditions in deep excavations.
Overview of Perforated Pile Walls
Perforated pile walls consist of spaced vertical piles with gaps that allow soil to pass through, providing effective drainage and reduced earth pressure. Commonly constructed using reinforced concrete or steel piles, they offer flexibility in ground conditions and faster installation compared to secant pile walls. These walls are particularly suited for temporary excavations and projects where reduced groundwater buildup is critical.
Overview of Secant Pile Walls
Secant pile walls consist of overlapping reinforced concrete piles formed by alternating primary and secondary piles to create a continuous, impermeable barrier ideal for excavation support and groundwater cutoff. Their interlocking design provides enhanced structural stability and resistance to lateral loads compared to perforated pile walls, making secant pile walls suitable for complex geotechnical conditions and deep excavations. Construction involves drilling and casting reinforced secondary piles between primary, unreinforced piles, ensuring a watertight and robust retaining structure.
Structural Design Differences
Perforated pile walls feature alternating bored piles with gaps that provide flexibility and reduced bending moments, making them suitable for less complex soil conditions. Secant pile walls consist of interlocking primary and secondary piles creating a continuous, impermeable barrier that offers higher lateral support and stiffness, essential for deeper excavations and unstable soils. Structural design of secant walls demands careful sequencing and overlap consideration to ensure load transfer and minimize deflections, unlike perforated walls which rely more on friction and soil-structure interaction.
Construction Methods and Techniques
Perforated pile walls are constructed by installing piles with spaced gaps, allowing for soil excavation between piles and reducing groundwater pressure, often using bored piling and interlocking techniques. Secant pile walls involve drilling primary and secondary piles that intersect, creating a continuous and watertight barrier ideal for deep excavation projects, typically built using wet or dry drilling methods with reinforcement cages in secondary piles. Both methods require precise alignment and sequencing to ensure structural stability and soil retention during the excavation process.
Groundwater Control and Drainage Efficiency
Perforated pile walls enhance groundwater control by allowing controlled water flow through the wall, improving drainage efficiency in saturated soils and reducing hydrostatic pressure behind the structure. Secant pile walls, composed of overlapping reinforced concrete piles, provide a nearly impermeable barrier that excels in groundwater cutoff but may require additional drainage systems to manage water pressure effectively. Choosing between these walls depends on project-specific hydrogeological conditions and desired balance between seepage control and drainage performance.
Load-Bearing Capacity and Performance
Perforated pile walls offer enhanced load-bearing capacity due to their interlocking design, which distributes structural loads efficiently and minimizes lateral soil movement. Secant pile walls provide superior performance in water-tightness and ground support, effectively resisting high lateral earth pressures in challenging soil conditions. Both systems deliver robust structural support, with perforated piles favoring load distribution and secant piles excelling in load resistance and groundwater control.
Cost Comparison and Economic Considerations
Perforated pile walls generally offer lower initial construction costs compared to secant pile walls due to simpler installation processes and reduced material requirements. Secant pile walls, while more expensive upfront because of interlocking reinforced concrete piles, provide superior structural integrity and waterproofing, potentially lowering long-term maintenance expenses. Economic considerations favor perforated pile walls for projects with budget constraints, whereas secant pile walls are cost-effective for complex geotechnical conditions demanding enhanced strength and durability.
Suitability for Various Soil and Site Conditions
Perforated pile walls exhibit excellent suitability in soft to medium cohesive soils with limited space constraints due to their flexibility in installation and efficient groundwater control. Secant pile walls are ideal for urban sites with variable soil strata, including mixed granular and cohesive layers, offering superior structural strength and minimal deformation for deep excavations. Both systems require careful geotechnical assessment to align with soil stability, groundwater conditions, and site-specific load demands.
Environmental Impact and Sustainability
Perforated pile walls minimize environmental disruption by allowing natural groundwater flow and reducing soil displacement, leading to less habitat disturbance compared to secant pile walls. Secant pile walls, while offering superior structural strength and watertightness, often require extensive excavation and slurry use, increasing waste generation and energy consumption. Choosing perforated pile walls supports sustainable construction practices by enhancing site ecology preservation and lowering carbon footprint.
Soil-structure interaction
Perforated pile walls enhance soil-structure interaction by allowing controlled soil deformation and drainage, whereas secant pile walls provide rigid, interlocking barriers that limit soil movement and improve lateral load resistance.
Lateral earth pressure
Perforated pile walls typically experience lower lateral earth pressure due to increased soil-structure interaction compared to secant pile walls, which provide higher stiffness and thus attract greater lateral loads.
Groundwater control
Perforated pile walls allow limited groundwater flow and require supplementary dewatering, whereas secant pile walls provide superior groundwater cutoff and minimize seepage during excavation.
Temporary retaining walls
Perforated pile walls provide cost-effective and flexible temporary retaining solutions with easier installation and removal, while secant pile walls offer superior structural strength and watertightness suitable for more demanding temporary excavation support.
Bored pile construction
Perforated pile walls allow partial soil retention with increased permeability in bored pile construction, while secant pile walls provide continuous structural support through interlocking reinforced concrete piles for superior soil and water retention.
Interlocking piles
Interlocking piles in perforated pile walls create a continuous barrier with gaps to reduce soil displacement, while secant pile walls use overlapping reinforced concrete piles to form a solid, impermeable structure ideal for strong water retention and load-bearing.
Cut-off wall seepage
Perforated pile walls allow higher seepage through cut-off zones compared to secant pile walls, which provide a denser, more effective barrier against groundwater flow.
Contiguous pile wall
Contiguous pile walls, unlike perforated pile walls, provide continuous ground support with minimal gaps by closely spacing piles, whereas secant pile walls use interlocking reinforced concrete piles for enhanced structural stability in excavation projects.
Foundation underpinning
Perforated pile walls enable efficient soil retention and partial load transfer during foundation underpinning, while secant pile walls provide higher structural integrity and groundwater cutoff for deep excavation support.
Shotcrete facing
Perforated pile walls with shotcrete facing provide enhanced structural reinforcement and water tightness compared to secant pile walls by allowing faster shotcrete application and better adherence to the interlocking pile system.

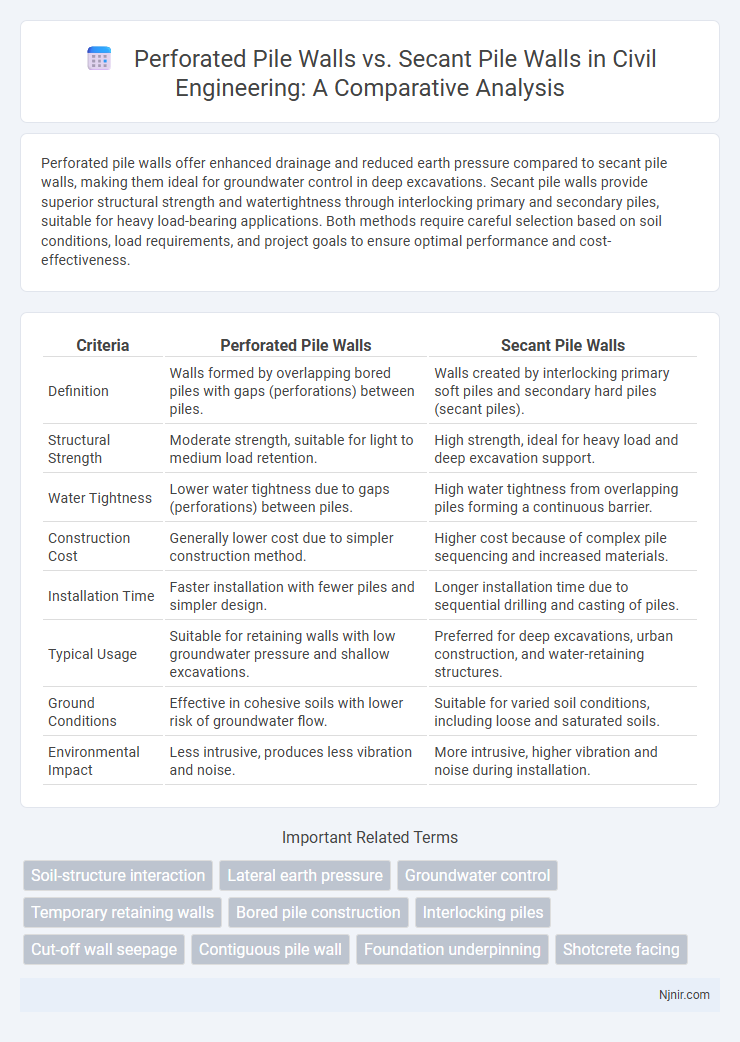

Perforated pile walls vs secant pile walls Infographic
