njnir.com Gravity dams rely on their massive weight to resist the water pressure, making them suitable for wide valleys with strong foundations. Arch dams transfer water forces horizontally into the canyon walls, requiring narrow, rocky locations for efficient load distribution. Choosing between gravity and arch dams depends on geological conditions, valley shape, and material availability.
Table of Comparison
| Aspect | Gravity Dam | Arch Dam |
|---|---|---|
| Definition | Massive concrete dam relying on weight to resist water pressure | Curved concrete dam transferring water pressure to canyon walls |
| Structural Shape | Straight, thick, heavy structure | Thin, curved, arch-shaped structure |
| Site Requirements | Wide valleys with strong foundation | Narrow, rocky valleys with strong abutments |
| Material Usage | High concrete volume, more materials | Less concrete due to arch action |
| Load Transfer | Resists load primarily by weight and gravity | Transfers load to canyon walls through arch action |
| Construction Cost | Higher due to more material and labor | Generally lower, material-efficient design |
| Height Capability | Suitable for moderate to high heights | Suitable for very high dams |
| Foundation Sensitivity | Requires very strong, stable foundation | Requires strong abutments but less foundation area |
| Maintenance | Typically less complex | Requires careful monitoring of stresses |
Introduction to Gravity and Arch Dams
Gravity dams rely on their immense weight and mass to resist the horizontal pressure of water, typically constructed from concrete or masonry materials. Arch dams transfer water pressure to the abutments through their curved design, requiring strong rock foundations and less material, making them suitable for narrow, rocky locations. Both dam types serve critical roles in water retention and hydroelectric power generation, with design choices driven by geotechnical and topographical conditions.
Structural Design Principles
Gravity dams rely on their massive weight and geometric stability to resist water pressure, using concrete or masonry to transfer loads vertically into the foundation. Arch dams employ a curved structure that transfers water pressure horizontally into the abutments, leveraging the natural strength of the rock formations on either side of the canyon. The distinct load distribution principles make gravity dams suitable for wide valleys with strong foundations, while arch dams require narrow, stable canyon walls to efficiently transmit forces.
Construction Materials Used
Gravity dams primarily use mass concrete or masonry to resist the water pressure through their weight, relying on gravity for stability, while arch dams are constructed mainly from high-strength concrete designed to transfer water loads efficiently into the adjacent rock formations. The concrete used in arch dams requires superior quality and uniformity due to the structural requirement of withstanding compressive forces along the curved surface. Masonry gravity dams utilize stone blocks bonded with mortar, contrasting with the more homogeneous concrete mixtures employed in arch dam construction for optimal load distribution.
Load Distribution and Stability
Gravity dams distribute loads primarily through their massive weight, resisting the horizontal water pressure by transferring forces vertically to the foundation, ensuring stability via sheer mass and friction. Arch dams transfer loads laterally to the abutments by curving upstream, allowing the structure to withstand pressure through compression along the arch, reducing material requirements. Stability in gravity dams depends on resisting overturning and sliding, while arch dams rely on the strength of rock foundations to absorb compressive stress effectively.
Site Selection Criteria
Site selection for gravity dams requires strong, stable rock foundations capable of supporting immense weight and minimal seismic activity to ensure structural integrity. Arch dams demand narrow, rocky canyons with strong abutments to effectively transfer water pressure to surrounding rock formations. Hydrological factors, geological stability, and topographical conditions are critical in determining the suitability of each dam type for specific locations.
Advantages of Gravity Dams
Gravity dams offer superior stability due to their massive structure, effectively resisting horizontal water pressure through their own weight, making them ideal for wide valleys with strong foundations. They require less precise geological conditions compared to arch dams, which depend on strong abutments to transfer loads. Construction and maintenance costs are generally lower for gravity dams, providing long-term economic advantages in suitable sites.
Advantages of Arch Dams
Arch dams offer significant advantages in terms of material efficiency and structural strength by transferring water pressure horizontally to the abutments, which reduces the amount of concrete required compared to gravity dams. Their curved design allows them to withstand high water pressures, making them ideal for narrow, rocky locations with strong foundation conditions. Arch dams also typically have a smaller environmental footprint due to their reduced volume and footprint relative to gravity dams.
Limitations and Challenges
Gravity dams face challenges related to the large volume of construction materials required and the need for solid, stable foundations to resist immense water pressure, limiting their feasibility in narrow or weak geological sites. Arch dams require precise engineering and suitable abutments made of strong rock formations to effectively transfer loads, posing limitations in locations lacking such stable canyon walls. Both dam types encounter difficulties in seismic zones, with gravity dams prone to sliding and overturning, while arch dams demand rigorous stress analysis to prevent cracking under dynamic loads.
Cost and Maintenance Considerations
Gravity dams typically incur higher initial construction costs due to the massive volume of concrete required but benefit from lower maintenance expenses because of their simple structure and durability. Arch dams often have lower material costs and a smaller footprint, leading to reduced construction expenses in narrow, rocky locations, but they demand more specialized inspection and maintenance to monitor stress distribution and structural integrity. Long-term maintenance budgets for arch dams must account for advanced engineering assessments to prevent potential cracks or deformation, whereas gravity dams generally require less frequent but routine upkeep.
Applications and Case Studies
Gravity dams, relying on their immense weight to resist water pressure, are widely used in wide valleys with stable rock foundations, exemplified by the Hoover Dam in the USA, which supports hydroelectric power generation and flood control. Arch dams, designed to transfer water pressure to the canyon walls through their curved structure, are preferred in narrow, rocky gorges, with the Kariba Dam in Zimbabwe and Zambia serving as a prominent case study for efficient water storage and energy production. Both types demonstrate tailored applications where geological conditions and project requirements dictate dam design for optimal performance and safety.
Structural Load Distribution
Gravity dams distribute structural loads primarily through their own weight resisting water pressure, while arch dams transfer loads laterally to abutments by arch action for increased efficiency.
Foundation Type
Gravity dams require strong, stable rock foundations to resist their immense weight, while arch dams need narrow, solid rock canyon walls to transfer loads efficiently through arch action.
Upstream Face Curvature
Upstream face curvature in arch dams efficiently transfers water pressure to the abutments through a curved design, while gravity dams feature a straight upstream face relying on mass and weight to resist water forces.
Abutment Pressure
Gravity dams exert uniform abutment pressure due to their mass, while arch dams transfer loads laterally to strong abutments, resulting in higher localized abutment pressure.
Concrete Volume Efficiency
Arch dams are more concrete volume efficient than gravity dams because their curved design transfers water pressure to abutments, requiring less material for structural stability.
Seismic Performance
Arch dams exhibit superior seismic performance compared to gravity dams due to their curved design, which effectively transfers seismic loads to the abutments, enhancing stability during earthquakes.
Spillway Integration
Gravity dams feature straightforward spillway integration directly on their broad, stable structure, while arch dams require carefully engineered spillway placement to accommodate their curved design and transfer loads efficiently.
Construction Material Requirements
Gravity dams primarily require large volumes of concrete or masonry for mass and stability, while arch dams demand high-strength concrete with precise curvature to efficiently transfer loads to abutments.
Reservoir Shape Adaptability
Gravity dams are suitable for wide valleys with broad reservoirs, while arch dams require narrow, steep-walled reservoirs to optimize structural efficiency.
Hydraulic Thrust Resistance
Gravity dams resist hydraulic thrust primarily through their massive weight, while arch dams transfer hydraulic thrust laterally into adjacent rock formations.

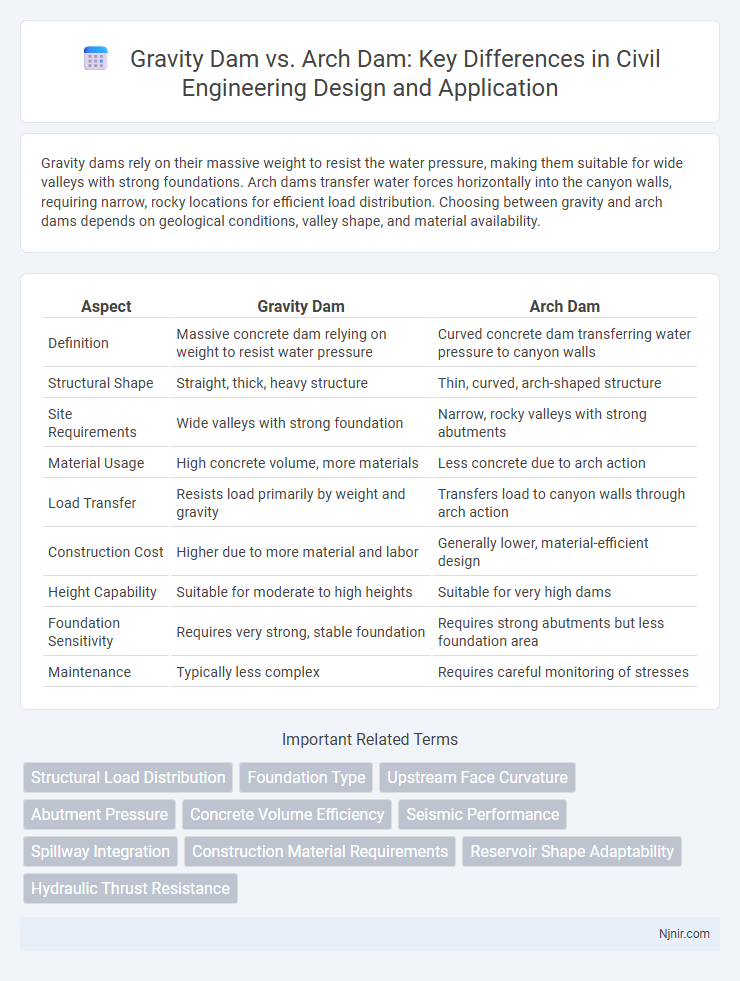

gravity dam vs arch dam Infographic
