njnir.com Pile foundations provide superior load-bearing capacity, making them ideal for weak soil conditions or high-rise structures requiring deep support. Raft foundations distribute loads evenly across a larger soil area, offering an economical solution for uniform, less compressible soils with moderate structural loads. Selecting between pile and raft foundations depends on soil characteristics, load requirements, and project budget constraints.
Table of Comparison
| Criteria | Pile Foundation | Raft Foundation |
|---|---|---|
| Definition | Deep foundation using long, slender columns driven or drilled into soil. | Shallow foundation covering entire building base as a continuous slab. |
| Suitability | Weak surface soils with strong strata at depth. | Uniformly weak surface soils with low bearing capacity. |
| Load Distribution | Transfers load to deeper, stable soil layers or rock. | Distributes load evenly across a large surface area. |
| Construction Cost | Generally higher due to equipment and depth. | Lower cost, simpler construction process. |
| Construction Time | Longer due to pile driving or drilling operations. | Shorter, simpler slab casting. |
| Soil Type | Soft clay, loose sand, fill materials with deep hard layers. | Low bearing capacity soils requiring uniform support. |
| Settlement | Minimal due to load transfer to deep strata. | Higher risk of differential settlement. |
| Common Applications | High-rise buildings, bridges, marine structures. | Low to medium-rise buildings, residential homes. |
Introduction to Pile and Raft Foundations
Pile foundations transfer building loads to deeper, more stable soil layers using long, slender columns of materials like concrete, steel, or timber, ideal for weak surface soils. Raft foundations, also called mat foundations, distribute loads over a large, continuous slab resting on the ground, suitable for soil with moderate bearing capacity and uniform settlement. Both foundation types are essential in geotechnical engineering to ensure structural stability based on soil conditions and load requirements.
Key Differences Between Pile and Raft Foundations
Pile foundations transfer structural loads to deeper, more stable soil layers through long, slender columns, making them ideal for weak or expansive surface soils. Raft foundations distribute loads over a large, continuous concrete slab resting on the soil, providing support on firm, less compressible ground. Key differences include load distribution methods, soil suitability, construction cost, and depth of foundation installation.
Soil Conditions Suitable for Each Foundation Type
Pile foundations are ideal for soft, loose, or waterlogged soils where surface layers lack sufficient bearing capacity, transferring loads deep into stable strata. Raft foundations perform best on moderately weak soils with uniform bearing capacity, distributing structural loads evenly over a large area to minimize settlement. Selecting the appropriate foundation type depends on soil strength, compressibility, and groundwater conditions at the construction site.
Structural Load Distribution: Pile vs Raft
Pile foundations transfer structural loads to deeper, more stable soil layers or bedrock, effectively supporting heavy or unevenly distributed loads and overcoming weak surface soils. Raft foundations distribute loads across a large surface area at shallow depths, making them suitable for uniform or moderate loads on soils with reasonable bearing capacity. The choice between pile and raft foundations depends on soil conditions and load characteristics, with piles providing deep load transfer while rafts offer load spreading near the surface.
Construction Methods and Techniques
Pile foundation involves driving or drilling deep cylindrical columns, typically made of concrete, steel, or timber, into the ground to transfer structural loads to deeper, more stable soil layers or bedrock. Raft foundation, also known as mat foundation, consists of a large concrete slab that spreads the building's load evenly across the entire soil surface beneath, suitable for weaker or expansive soils. While pile foundations require specialized equipment like pile drivers or drilling rigs and precise installation techniques to ensure load transfer at depth, raft foundations are constructed using reinforced concrete slabs with minimal excavation, relying on uniform soil bearing capacity.
Advantages and Disadvantages of Pile Foundations
Pile foundations provide deep support for structures on weak or compressible soils by transferring loads to stronger soil layers or rock, ensuring stability and reduced settlement. Their advantages include high load-bearing capacity and suitability for uneven soil conditions, while disadvantages involve high installation costs, complexity, and the need for specialized equipment. Unlike raft foundations, pile foundations are more effective for heavy structures or sites with poor surface soils but may cause noise and vibration during construction.
Advantages and Disadvantages of Raft Foundations
Raft foundations distribute building loads evenly across a large area, reducing the risk of differential settlement and making them suitable for weak or expansive soils. Their construction is faster and more economical compared to pile foundations, especially for low to medium-rise structures. However, raft foundations may be unsuitable for very heavy loads or highly variable subsoil conditions, where they might require excessive thickness, leading to higher material costs and potential structural issues.
Cost Comparison: Pile Foundation vs Raft Foundation
Pile foundations generally incur higher initial costs due to the need for specialized equipment and deeper excavation, making them suitable for sites with poor soil bearing capacity. Raft foundations tend to be more cost-effective in stable soils by distributing loads over a large area, reducing material and labor expenses. The choice between pile and raft foundations should consider site conditions and budget constraints to optimize overall structural investment.
Typical Applications of Pile and Raft Foundations
Pile foundations are typically used in projects requiring support on weak or expansive soils, such as high-rise buildings, bridges, and offshore structures, where deep load transfer is essential. Raft foundations are ideal for structures with low to moderate load intensities and uniform soil conditions, commonly applied in residential buildings, warehouses, and commercial complexes to distribute loads over a large area. Selecting between pile and raft foundations depends on soil bearing capacity, load requirements, and site conditions to ensure structural stability and cost efficiency.
Selection Criteria for Optimal Foundation Choice
Selection criteria for optimal foundation choice depend on soil bearing capacity, load distribution, and site conditions. Pile foundations are preferred for weak or compressible soils requiring deep load transfer to stable strata, while raft foundations suit low to moderate loads on firm, uniform soils minimizing differential settlement. Evaluating soil investigations, structural load requirements, and groundwater conditions ensures an effective and economical foundation solution.
End-bearing pile
End-bearing piles transfer structural loads directly to a strong, deep soil or rock layer, providing greater stability compared to raft foundations, which distribute loads over a larger surface area on weaker soils.
Friction pile
Friction piles transfer structural loads to deeper soil layers through skin friction along the pile surface, making them ideal for weak or loose soil conditions where raft foundations may lack sufficient bearing capacity.
Mat foundation
Mat foundation, also known as raft foundation, provides a continuous slab that spreads the load of a structure over a large area, making it ideal for sites with low-bearing capacity soils compared to pile foundations which transfer loads to deeper, more stable strata.
Differential settlement
Pile foundations effectively minimize differential settlement by transferring loads to deeper, more stable soil layers, whereas raft foundations may be more susceptible to uneven settlement on variable soil conditions.
Bearing capacity
Pile foundation provides higher bearing capacity by transferring loads to deeper, more stable soil layers compared to raft foundation, which distributes loads over a larger area on the surface soil with relatively lower bearing capacity.
Subsoil investigation
Subsoil investigation for pile foundations requires assessing deep soil strata and bearing capacity, while raft foundation soil analysis focuses on uniform shallow soil bearing capacity and settlement characteristics.
Load transfer mechanism
Pile foundations transfer loads deep into stable soil layers through friction and end-bearing, while raft foundations distribute loads uniformly across a large surface area to support structures on weaker soils.
Deep foundation
Pile foundations provide greater load-bearing capacity or stability in deep foundation applications by transferring loads through weak soil layers to deeper, stronger strata compared to raft foundations, which distribute loads across a large shallow area.
Shallow foundation
Raft foundation, a type of shallow foundation, spreads building loads over a large soil area, making it suitable for weak or expansive soils, whereas pile foundation transfers loads deep into the ground, ideal for supporting heavy structures on unstable surface soils.
Ground improvement
Pile foundations provide superior ground improvement by transferring loads to deeper, more stable soil layers, whereas raft foundations distribute loads across a wide area, improving ground stability primarily in moderately compacted soils.

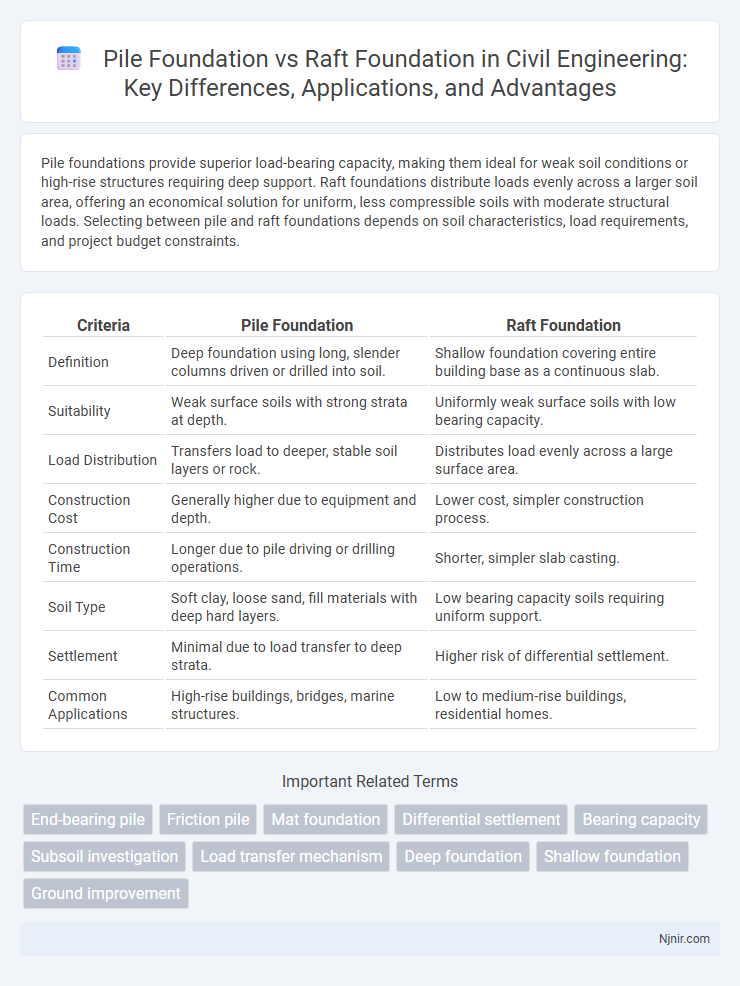

pile foundation vs raft foundation Infographic
