njnir.com Seismic isolation systems reduce earthquake forces by decoupling a structure from ground motion, enhancing building safety and minimizing damage. Conventional bracing systems rely on stiff structural elements that absorb and dissipate seismic energy, often resulting in increased structural stress and potential damage. The choice between seismic isolation and conventional bracing impacts overall performance, resilience, and repair costs in civil engineering projects.
Table of Comparison
| Feature | Seismic Isolation | Conventional Bracing Systems |
|---|---|---|
| Primary Function | Decouples structure from ground motion | Resists lateral loads through stiffness |
| Seismic Performance | Reduces seismic forces by 50%-80% | Transfers full seismic forces to structure |
| Structural Impact | Minimizes damage, protects structural integrity | Can cause higher stress concentrations |
| Installation Complexity | Requires specialized design and devices | Conventional, easier to design and install |
| Cost | Higher initial investment | Lower initial cost |
| Maintenance | Requires periodic inspection of isolators | Typically low maintenance |
| Applications | High-value buildings, critical infrastructure | Standard buildings, low to medium seismic zones |
| Energy Dissipation | Isolators absorb and dissipate energy | Bracing dissipates energy through deformation |
Introduction to Seismic Isolation and Conventional Bracing
Seismic isolation systems reduce earthquake forces transmitted to a structure by incorporating flexible bearings or isolation pads that absorb ground motion, effectively decoupling the building from seismic activity. Conventional bracing systems, such as steel braces or shear walls, increase structural rigidity and dissipate energy by resisting lateral forces through deformation or yielding. These two approaches differ in their methods of enhancing earthquake resilience, where seismic isolation focuses on minimizing force input and conventional bracing emphasizes structural strength and energy dissipation.
Fundamentals of Seismic Isolation Systems
Seismic isolation systems fundamentally reduce earthquake forces transmitted to a structure by decoupling it from ground motion through flexible bearings or isolators, such as laminated rubber bearings or sliding bearings. Unlike conventional bracing systems that resist lateral forces through rigid frames and braces, seismic isolation minimizes structural deformation and damage by absorbing and dissipating energy at the base level. This approach significantly enhances building resilience by allowing controlled movement, reducing acceleration, and improving occupant safety during seismic events.
Core Principles of Conventional Bracing Systems
Conventional bracing systems rely on rigid or semi-rigid steel or concrete elements to resist lateral forces by transferring earthquake energy through the building structure to the foundation. These systems utilize diagonal braces, shear walls, or moment frames to provide stiffness and strength, controlling building drift and deformation during seismic events. The core principle centers on enhancing structural rigidity to prevent excessive displacement and structural damage under seismic loads.
Comparative Structural Performance During Earthquakes
Seismic isolation systems significantly reduce the lateral forces transmitted to a structure by incorporating flexible bearings or pads that absorb and dissipate seismic energy, resulting in lower acceleration and displacement demands compared to conventional bracing systems. Conventional bracing relies on stiff frames or diagonal braces to resist lateral loads, which often leads to higher structural stress and increased potential for damage during strong earthquakes. Studies demonstrate that buildings equipped with seismic isolation exhibit enhanced structural performance, including reduced base shear, minimized deformation, and improved occupant safety relative to traditional braced frames.
Installation and Construction Considerations
Seismic isolation systems require specialized installation techniques and materials, including isolator bearings and dampers, which often extend construction timelines and demand skilled labor compared to conventional bracing systems. Conventional bracing involves more straightforward installation with standard structural components, allowing for faster deployment and lower initial labor costs but may necessitate heavier structural reinforcement. The choice between seismic isolation and conventional bracing significantly impacts foundation design, construction sequencing, and overall project budgeting due to the complexity and precision required in seismic isolation installation.
Cost Implications and Long-Term Value
Seismic isolation systems often involve higher initial costs due to advanced materials and complex installation processes compared to conventional bracing systems, which use standard steel frames and connections. Over time, seismic isolation can reduce structural damage and downtime during earthquakes, leading to significant long-term savings on repairs and insurance premiums. Conventional bracing may have lower upfront expenses but can incur greater maintenance and retrofit costs following seismic events, affecting overall lifecycle value.
Maintenance and Durability Aspects
Seismic isolation systems require less frequent maintenance due to their ability to reduce structural stress and minimize wear on building components, enhancing overall durability compared to conventional bracing systems. Conventional bracing systems often endure higher stress levels during seismic events, necessitating regular inspections and repairs to maintain integrity and functionality. Materials used in seismic isolators, such as laminated rubber bearings, are designed for long-term performance and resistance to environmental degradation, extending service life beyond that of typical steel braces.
Applications in Different Building Types
Seismic isolation systems are highly effective in protecting critical infrastructure such as hospitals, museums, and high-rise buildings by decoupling the structure from ground motion, thereby reducing seismic forces and potential damage. Conventional bracing systems are commonly applied in low- to mid-rise residential and commercial buildings where cost-efficiency and straightforward installation are prioritized. Choosing between these systems depends on building function, occupancy risk, and seismic hazard level, with seismic isolation favored for high-value or essential facilities requiring enhanced resilience.
Case Studies: Real-World Implementations
Case studies of seismic isolation systems in buildings like the San Francisco City Hall demonstrate a significant reduction in structural damage during major earthquakes compared to conventional bracing systems. Real-world implementations of base isolators in hospitals and museums, such as the Los Angeles County Museum of Art, show improved occupant safety and decreased downtime post-event. Conventional bracing systems, while effective in smaller structures, reveal increased repair costs and longer recovery times in high-seismic zones, as evidenced by performance analyses following the 2011 Tohoku earthquake.
Future Trends in Seismic Protection Technologies
Future trends in seismic protection technologies emphasize the integration of advanced seismic isolation systems, which significantly reduce structural damage and enhance occupant safety during earthquakes. Innovations in materials such as high-damping rubber bearings and smart base isolators equipped with real-time monitoring sensors are transforming traditional bracing methods. Research in adaptive seismic isolation, combining structural health monitoring with AI-driven control mechanisms, promises to revolutionize earthquake resilience in infrastructure design.
Base Isolation
Base isolation significantly reduces seismic forces transmitted to structures by decoupling the building from ground motion, offering superior performance compared to conventional bracing systems that rely on stiffness and energy dissipation through structural deformation.
Energy Dissipation Devices
Energy dissipation devices in seismic isolation systems absorb and reduce earthquake energy more efficiently than conventional bracing systems, enhancing structural resilience and minimizing damage.
Lead Rubber Bearings
Lead Rubber Bearings in seismic isolation systems significantly reduce building vibrations and structural damage compared to conventional bracing systems by providing flexible support and energy dissipation during earthquakes.
Elastomeric Bearings
Elastomeric bearings in seismic isolation systems significantly reduce structural vibrations during earthquakes compared to conventional bracing systems by absorbing and dissipating seismic energy.
Tuned Mass Dampers
Tuned mass dampers enhance seismic isolation by reducing structural vibrations more effectively than conventional bracing systems, improving building resilience and occupant safety during earthquakes.
Ductile Moment Frames
Seismic isolation significantly reduces seismic forces on ductile moment frames compared to conventional bracing systems by decoupling ground motion and enhancing structural flexibility.
Shear Wall Systems
Seismic isolation significantly reduces lateral forces on shear wall systems compared to conventional bracing systems, enhancing structural resilience and occupant safety during earthquakes.
Sliding Bearings
Sliding bearings in seismic isolation systems reduce earthquake forces on structures by allowing controlled horizontal movement, enhancing energy dissipation compared to conventional bracing systems that rely on rigid structural components to resist seismic loads.
Hysteretic Dampers
Hysteretic dampers in seismic isolation systems provide superior energy dissipation and reduce structural damage compared to conventional bracing systems by absorbing and dissipating seismic forces through controlled inelastic deformation.
Seismic Response Modification
Seismic Isolation systems significantly reduce seismic response by decoupling a structure from ground motion, whereas Conventional Bracing Systems primarily dissipate energy through deformation and rely on structural stiffness.

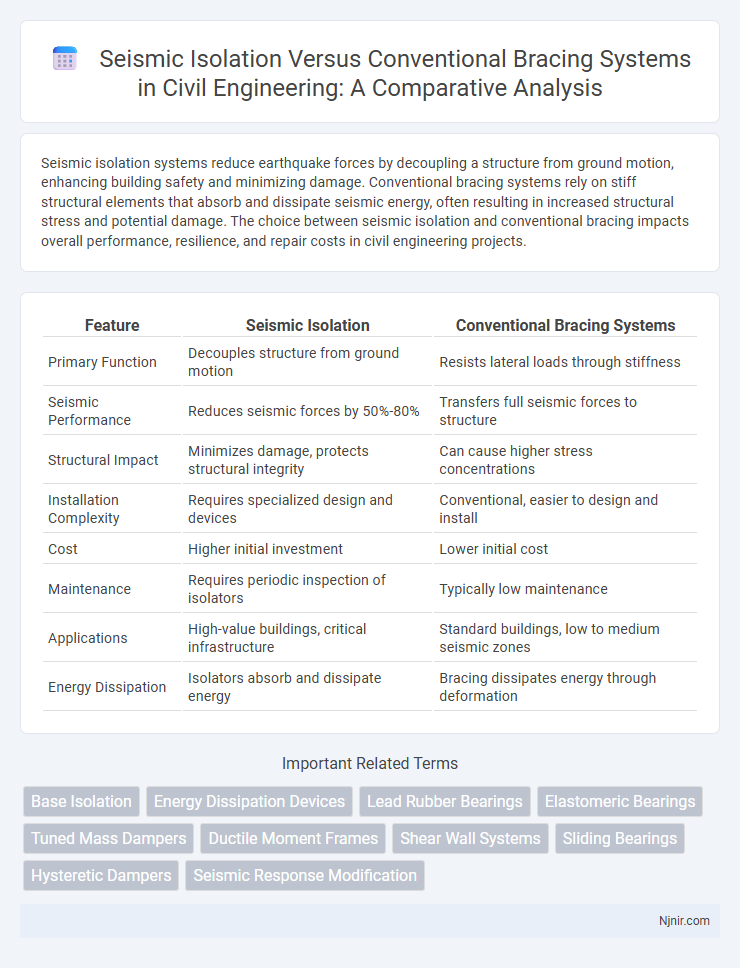

Seismic Isolation vs Conventional Bracing Systems Infographic
