njnir.com Aerodynamic heating occurs when a spacecraft or aircraft compresses and frictionally interacts with atmospheric gases at high velocities, causing a significant rise in surface temperature due to kinetic energy conversion. Radiative heating, in contrast, is the absorption of thermal energy emitted by external sources such as the Sun or planetary bodies, influencing thermal control during space missions. Effective thermal management in aerospace engineering requires balancing these heating mechanisms to ensure structural integrity and system performance.
Table of Comparison
| Aspect | Aerodynamic Heating | Radiative Heating |
|---|---|---|
| Definition | Heat generated by air friction on a body moving at high speed through the atmosphere | Heat absorbed from electromagnetic radiation, primarily from the sun or re-entry plasma |
| Heat Source | Convective and frictional forces in atmospheric gases | Electromagnetic radiation (infrared, visible, ultraviolet) |
| Temperature Range | Can exceed 2000degC on high-speed vehicles (e.g., re-entry spacecraft) | Generally lower, depends on radiation intensity and exposure duration |
| Dependency Factors | Velocity, atmospheric density, vehicle shape, surface material | Solar flux, distance from sun, surface emissivity, angle of incidence |
| Heat Transfer Mode | Convective and conductive heat transfer | Radiative heat transfer |
| Typical Aerospace Context | Re-entry vehicles, hypersonic aircraft, missiles | Spacecraft in orbit, satellites, solar panels |
| Thermal Protection | Thermal protection systems (TPS) using ablative or insulating materials | Reflective coatings and radiators to control heat absorption |
Introduction to Aerodynamic and Radiative Heating
Aerodynamic heating occurs when a vehicle moving at high speeds compresses air molecules, generating intense thermal energy on its surface due to friction and shock waves. Radiative heating involves energy transfer through electromagnetic radiation, often from external sources like the sun or plasma emissions during reentry. Understanding the distinct mechanisms of aerodynamic and radiative heating is crucial for designing thermal protection systems in aerospace applications.
Fundamental Principles of Aerodynamic Heating
Aerodynamic heating occurs when a vehicle moving at high speeds compresses and frictionally interacts with air molecules, converting kinetic energy into thermal energy on the vehicle's surface, primarily governed by convective and shock wave heating principles. This process differs from radiative heating, which involves thermal energy transfer through electromagnetic radiation, such as sunlight or infrared emission, without direct material contact. Understanding the fundamental principles of aerodynamic heating is crucial for designing thermal protection systems in hypersonic vehicles and re-entry spacecraft to prevent structural damage caused by extreme temperatures.
Physics of Radiative Heating in Aerospace
Radiative heating in aerospace involves the transfer of energy through electromagnetic waves, primarily infrared and visible light, impacting spacecraft surfaces exposed to solar radiation and planetary albedo. Unlike aerodynamic heating caused by the friction and compression of atmospheric gases at hypersonic speeds, radiative heating depends on the spacecraft's absorptivity, emissivity, and exposure duration. Understanding the physics of radiative heating is crucial for thermal protection system design, ensuring spacecraft maintain structural integrity during orbit and re-entry phases.
Comparative Analysis: Aerodynamic vs. Radiative Heating
Aerodynamic heating results from friction between a vehicle's surface and atmospheric particles at high velocities, generating intense localized heat primarily on leading edges. Radiative heating, in contrast, arises from electromagnetic radiation absorption, such as solar or reentry plasma radiation, affecting the surface over broader areas with varying intensity based on emissivity and environmental conditions. Comparative analysis reveals aerodynamic heating dominates during hypersonic flight due to convective energy transfer, while radiative heating becomes significant during atmospheric reentry phases with high plasma radiation, necessitating materials designed to withstand both mechanisms for thermal protection.
Heat Transfer Mechanisms in High-Speed Flight
Aerodynamic heating primarily results from convective heat transfer as high-speed airflow compresses and frictionally interacts with a vehicle's surface, generating intense thermal energy. Radiative heating involves the emission and absorption of electromagnetic radiation, which becomes significant at hypersonic speeds or in re-entry scenarios where plasma and shock-layer radiation affect thermal loads. Understanding the distinct contributions of convective and radiative mechanisms is critical for designing thermal protection systems that withstand extreme temperatures in high-speed flight environments.
Effects on Aircraft and Spacecraft Material Selection
Aerodynamic heating primarily affects aircraft and spacecraft during high-speed atmospheric flight, causing surface temperatures to rise due to air friction and compression, necessitating materials with high thermal resistance and ablative properties such as titanium alloys or reinforced carbon-carbon composites. Radiative heating becomes critical in spacecraft operating near intense solar radiation or re-entering the atmosphere, requiring materials with high reflectivity and emissivity, like silica tiles and specialized ceramics, to manage thermal loads without degrading structural integrity. Material selection for these vehicles involves balancing thermal conductivity, weight, and durability to ensure protection against both aerodynamic and radiative heating while maintaining overall performance and safety.
Modeling and Simulation of Thermal Loads
Aerodynamic heating primarily results from convective heat transfer due to high-velocity gas flow over surfaces, modeled through computational fluid dynamics (CFD) coupled with heat transfer equations to capture temperature distributions and thermal gradients accurately. Radiative heating involves energy transfer via electromagnetic radiation, requiring simulation of radiative heat flux using methods like the Discrete Ordinates Method (DOM) or Monte Carlo ray tracing, especially in high-temperature environments such as spacecraft re-entry. Integrating aerodynamic and radiative heating models enables comprehensive thermal load predictions critical for designing thermal protection systems with enhanced reliability and efficiency.
Implications for Thermal Protection System Design
Aerodynamic heating generates intense convective heat loads on spacecraft surfaces during atmospheric entry, necessitating Thermal Protection Systems (TPS) with materials that withstand high temperatures and erosive environments. Radiative heating, arising from shock layer radiation and high-temperature gas emissions, requires TPS designs to incorporate coatings or ablators that can absorb or reflect infrared radiation effectively. Combining both heat types leads to complex thermal gradients, demanding multi-layered TPS architectures optimized for conduction, radiation, and ablation to ensure vehicle integrity and crew safety.
Case Studies: Reentry Vehicles and Hypersonic Flight
Reentry vehicles experience aerodynamic heating primarily due to intense friction and compression of atmospheric gases at hypersonic speeds, raising vehicle surface temperatures to thousands of degrees Celsius, necessitating advanced thermal protection systems. Radiative heating becomes significant during high-velocity reentry when shock layer emissions emit intense infrared and ultraviolet radiation, further heating the vehicle's surface. Hypersonic flight studies demonstrate that managing the balance between convective aerodynamic heat flux and radiative heat loads is critical for vehicle integrity, guiding designs in materials science and active cooling technologies.
Future Trends in Thermal Management Technologies
Advancements in thermal management technologies are addressing the challenges of aerodynamic heating by integrating high-performance thermal barrier coatings and active cooling systems to withstand extreme convective heat fluxes during hypersonic flight. Radiative heating mitigation is evolving through the development of innovative materials with enhanced emissivity and selective radiative properties, enabling efficient heat dissipation in space environments. Future trends emphasize multifunctional thermal protection systems that dynamically adapt to varying heat loads, combining radiative and convective cooling techniques for optimized spacecraft and high-speed vehicle performance.
Stagnation point heating
Stagnation point heating primarily results from aerodynamic heating due to intense air compression and friction, whereas radiative heating contributes less significantly in high-speed atmospheric entry conditions.
Convective heat transfer
Convective heat transfer in aerodynamic heating involves the direct transfer of thermal energy from high-speed airflow friction on a surface, while radiative heating relies on electromagnetic radiation without mass movement.
Thermal protection systems (TPS)
Thermal protection systems (TPS) are designed primarily to withstand aerodynamic heating caused by high-velocity air friction during atmospheric reentry, while radiative heating from plasma emission requires materials with high emissivity and thermal radiation resistance for effective protection.
Radiative equilibrium
Radiative equilibrium occurs when the heat gained by radiative heating equals the heat lost, contrasting with aerodynamic heating where frictional forces convert kinetic energy into thermal energy on a surface moving through a fluid.
Ablation
Ablation primarily protects spacecraft during aerodynamic heating by eroding heat-absorbing material, whereas radiative heating involves energy transfer through electromagnetic radiation with less direct material erosion.
Reentry plasma sheath
During reentry, the plasma sheath generated by high-velocity aerodynamic heating creates intense convective heat transfer, whereas radiative heating predominantly arises from excited atomic and molecular emissions within the ionized gas layer.
Catalytic wall effects
Catalytic wall effects significantly increase aerodynamic heating by accelerating exothermic chemical reactions on the surface, while radiative heating is primarily governed by electromagnetic energy absorption without catalytic reaction influence.
Shock layer radiation
Shock layer radiation during hypersonic flight causes intense aerodynamic heating by emitting high-energy photons from ionized gases, surpassing traditional radiative heating effects due to its concentrated energy transfer within the shock layer.
Charring phenolics
Charring phenolics effectively mitigate aerodynamic heating by forming a protective ablative char layer, whereas radiative heating primarily demands surface coatings with high emissivity to dissipate thermal radiation.
Thermochemical nonequilibrium
Thermochemical nonequilibrium significantly influences aerodynamic heating by altering boundary layer chemistry and energy exchange, whereas radiative heating primarily depends on emission and absorption characteristics independent of flow-induced chemical reactions.

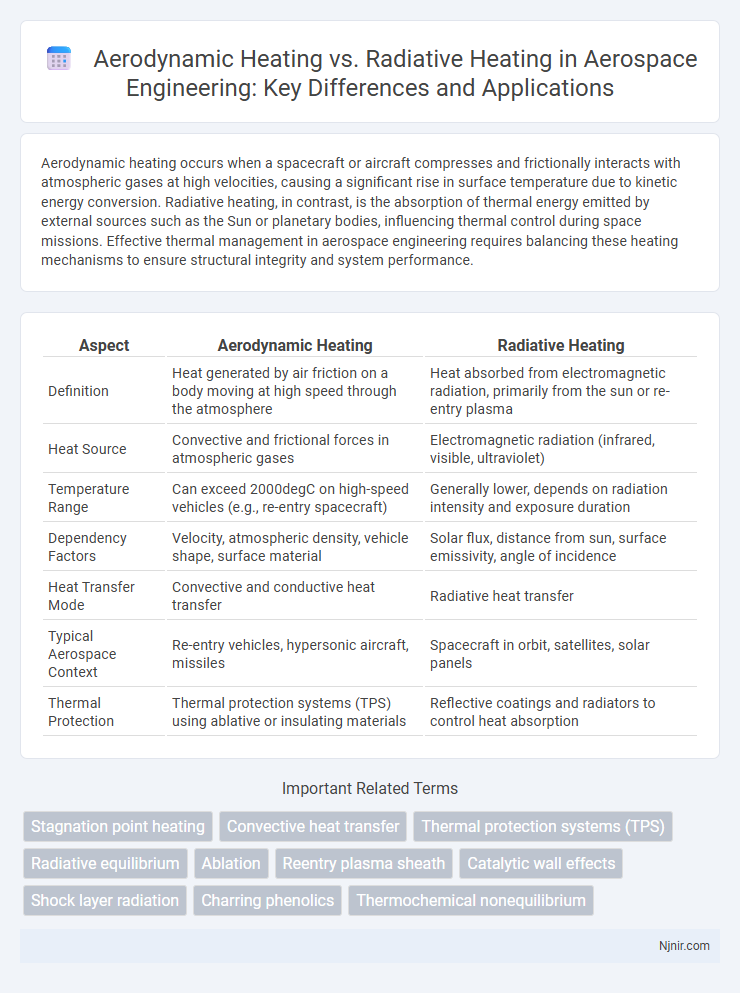

aerodynamic heating vs radiative heating Infographic
