njnir.com Hypersonic flight exceeds Mach 5, significantly increasing aerodynamic heating and requiring advanced thermal protection materials, while supersonic flight ranges from Mach 1 to Mach 5 with less extreme thermal challenges. Hypersonic vehicles face intense shockwaves and plasma formation that affect communication systems, contrasting with supersonic aircraft that primarily deal with shock-induced drag. The engineering complexities of hypersonic speeds drive innovations in propulsion, materials science, and aerodynamics beyond what is necessary for supersonic travel.
Table of Comparison
| Feature | Hypersonic | Supersonic |
|---|---|---|
| Speed | > Mach 5 (Above 3,836 mph) | Mach 1 to Mach 5 (767 to 3,836 mph) |
| Application | Advanced military missiles, space vehicles, research | Commercial jets, military fighter aircraft, reconnaissance |
| Heat Generation | Extremely high, requires advanced thermal protection | High, but manageable with existing materials |
| Flight Challenges | Plasma formation, intense air friction, control at extreme speeds | Sonic boom, drag increase, stability at supersonic speeds |
| Fuel Efficiency | Low due to extreme speeds and thermal constraints | Moderate, optimized for range and speed balance |
| Examples | NASA X-43, SR-72 (planned) | Boeing Concorde, Lockheed SR-71 Blackbird |
Introduction to Supersonic and Hypersonic Flight
Supersonic flight occurs when an aircraft exceeds the speed of sound, typically Mach 1 to Mach 5, resulting in shock waves and a sonic boom. Hypersonic flight begins beyond Mach 5, where extreme aerodynamic heating and plasma formation challenge materials and propulsion systems. Both flight regimes demand advanced engineering solutions for stability, heat resistance, and propulsion efficiency to achieve sustained speed and control.
Fundamental Differences: Speed Regimes and Characteristics
Hypersonic speeds exceed Mach 5, where air molecules ionize and generate extreme heat, unlike supersonic speeds that range from Mach 1 to Mach 5 and involve shock waves with less thermal impact. Hypersonic vehicles require advanced thermal protection systems and specialized materials due to intense aerodynamic heating, whereas supersonic aircraft primarily face challenges related to sonic booms and wave drag. The distinct aerodynamic regimes result in different design priorities, such as hypersonic emphasis on thermal management and supersonic focus on efficient lift-to-drag ratios.
Key Aerodynamic Challenges at Supersonic and Hypersonic Speeds
At supersonic speeds, key aerodynamic challenges include shock wave formation causing increased drag and thermal heating due to air compression, requiring specialized airframe shaping and heat-resistant materials. Hypersonic speeds amplify these issues with extreme aerodynamic heating, boundary layer transition to turbulence, and intense chemical reactions in the shock layer, necessitating advanced thermal protection systems and materials that can withstand temperatures exceeding 1,500degC. Managing stability and control also becomes more complex at hypersonic velocities due to rapid changes in air pressure and temperature gradients.
Materials and Thermal Protection for Extreme Velocities
Hypersonic vehicles require advanced thermal protection systems made of ultra-high temperature ceramics and ablative materials to withstand temperatures exceeding 1,500degC caused by extreme aerodynamic heating at speeds above Mach 5. Supersonic aircraft, traveling between Mach 1 and Mach 5, rely on heat-resistant alloys such as titanium and Inconel for structural integrity under lower thermal loads. Innovations in heat-resistant composites and active cooling systems are critical for hypersonic flight to manage thermal stresses that surpass those encountered in supersonic regimes.
Propulsion Systems: Turbojets vs Ramjets vs Scramjets
Turbojets operate efficiently at supersonic speeds up to approximately Mach 3, using rotating compressors to compress incoming air before combustion. Ramjets, lacking moving parts, rely on high-speed airflow for compression and are optimized for speeds between Mach 3 and Mach 6, offering increased thrust compared to turbojets. Scramjets function at hypersonic velocities above Mach 6 by maintaining supersonic airflow throughout the engine, enabling sustained combustion at extreme speeds unattainable by turbojets or ramjets.
Structural Design Considerations in High-Speed Aircraft
Hypersonic aircraft require advanced thermal protection systems and materials engineered to withstand extreme aerodynamic heating and structural stresses exceeding those in supersonic flight. Supersonic designs prioritize shockwave management and aerodynamic stability at speeds typically between Mach 1 and Mach 5, employing lightweight composites and titanium alloys to balance strength and weight. Structural integrity in hypersonic vehicles demands integration of active cooling technologies and high-temperature ceramics to maintain performance and safety under intense thermal and mechanical loads.
Computational Fluid Dynamics (CFD) in Speed Regime Analysis
Computational Fluid Dynamics (CFD) plays a critical role in analyzing the distinct aerodynamic phenomena encountered in hypersonic (Mach 5 and above) versus supersonic (Mach 1 to Mach 5) speed regimes. Hypersonic CFD focuses on intense shock-wave interactions, high-temperature gas effects, and real gas chemistry, requiring advanced numerical methods to model flowfield complexities accurately. Supersonic CFD emphasizes shock-wave formation, expansion fans, and compressible flow features, utilizing algorithms optimized for moderate-speed compressible aerodynamics to predict performance and stability efficiently.
Real-World Applications: Military, Space, and Commercial Sectors
Hypersonic technology enables missiles and aircraft to travel faster than Mach 5, significantly enhancing military strike capabilities and strategic deterrence, while supersonic speeds (Mach 1-5) remain prevalent in fighter jets and commercial supersonic transports like the Concorde. In space exploration, hypersonic vehicles are critical for atmospheric re-entry and rapid planetary missions, whereas supersonic technology supports suborbital flights and faster air travel. Commercial sectors explore supersonic jets to reduce flight times on transoceanic routes, with hypersonic travel still in experimental stages due to challenges in propulsion and heat management.
Current Technological Limitations and Research Frontiers
Hypersonic vehicles, operating above Mach 5, face critical challenges in thermal protection, material durability, and propulsion systems compared to supersonic aircraft that fly between Mach 1 and Mach 5. Current research concentrates on advanced scramjet engines, high-temperature composite materials, and real-time aerodynamic control to overcome issues like intense aerodynamic heating and shockwave interactions. Innovations in computational fluid dynamics and hypersonic wind tunnel testing are pivotal in pushing the boundaries of sustainable hypersonic flight technology.
Future Prospects: Bridging the Gap Between Supersonic and Hypersonic Flight
Hypersonic flight, defined by speeds exceeding Mach 5, promises revolutionary advancements in aerospace technology compared to supersonic flight, which ranges from Mach 1 to Mach 5, by enabling drastically reduced travel times and enhanced missile capabilities. Future prospects involve developing hybrid propulsion systems, such as combined cycle engines that transition from turbojet to scramjet power, optimizing fuel efficiency and thermal management to overcome challenges like extreme heat and aerodynamic drag. Bridging this gap will accelerate innovations in materials science, high-temperature composites, and computational fluid dynamics, driving the evolution of commercial air travel, defense, and space exploration.
Mach Regimes
Hypersonic speeds start at Mach 5 and above, significantly exceeding supersonic speeds which range from Mach 1 to Mach 5, defining distinct regimes in aerospace velocity classifications.
Shockwave Formation
Hypersonic speeds generate stronger and more complex shockwaves with higher-temperature plasma layers compared to the relatively simpler, weaker shockwaves formed at supersonic speeds.
Thermal Protection Systems
Hypersonic vehicles require advanced thermal protection systems using ablative and ceramic materials to withstand extreme temperatures above 5,000degF, while supersonic aircraft typically rely on less intensive cooling techniques due to lower thermal loads under Mach 3 speeds.
Aerodynamic Heating
Hypersonic flight generates exponentially greater aerodynamic heating than supersonic speeds due to intense air compression and friction, necessitating advanced thermal protection systems.
Boundary Layer Transition
Boundary layer transition in hypersonic flights occurs significantly earlier than in supersonic flights due to higher surface temperatures and stronger shock-wave interactions, impacting aerodynamic heating and stability.
Scramjet Propulsion
Scramjet propulsion enables hypersonic flight by efficiently combusting fuel at speeds exceeding Mach 5, unlike supersonic engines optimized for speeds between Mach 1 and Mach 5.
Wave Drag
Hypersonic vehicles experience exponentially higher wave drag due to shock wave interactions compared to supersonic speeds where wave drag increases more gradually.
Stagnation Pressure
Hypersonic speeds generate significantly higher stagnation pressure due to extreme compression and shock wave intensity compared to supersonic speeds.
Rarefied Gas Dynamics
Hypersonic flight involves complex rarefied gas dynamics characterized by high Knudsen numbers and non-continuum effects, whereas supersonic flight primarily operates within continuum flow regimes with lower rarefaction phenomena.
High-Temperature Gas Effects
Hypersonic flight generates extreme high-temperature gas effects causing chemical dissociation and ionization of air, significantly impacting aerodynamic heating and vehicle material design compared to supersonic speeds.

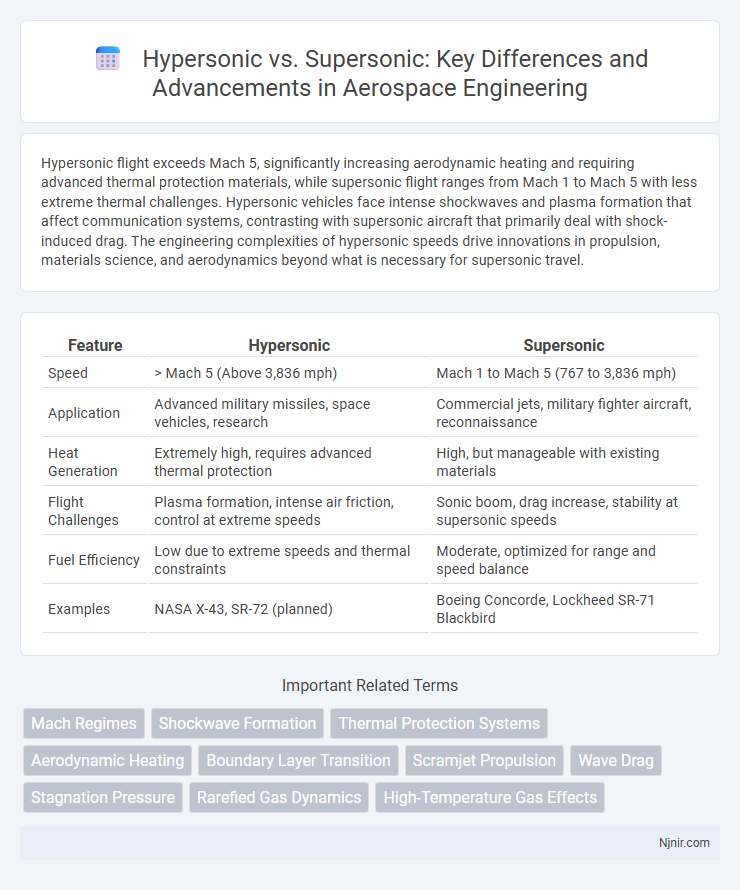

Hypersonic vs Supersonic Infographic
