njnir.com Tiltrotor aircraft combine the vertical takeoff and landing capabilities of helicopters with the speed and range of fixed-wing airplanes by tilting their rotors for forward flight, enabling efficient long-distance travel. Compound helicopters integrate auxiliary propulsion systems and aerodynamic enhancements such as wings and push propellers, improving speed and fuel efficiency while maintaining traditional helicopter rotor lift. Both designs address the trade-offs between speed, maneuverability, and range, but tiltrotors excel in high-speed cruise while compound helicopters offer improved hover performance and shorter takeoff distances.
Table of Comparison
| Feature | Tiltrotor | Compound Helicopter |
|---|---|---|
| Flight Mechanism | Tilting rotors for vertical takeoff and fixed-wing forward flight | Rotor for vertical lift with additional propulsion for forward speed |
| Speed | High forward speed (up to 300+ knots) | Moderate to high speed (up to 250 knots) |
| Range | Longer range due to efficient forward flight | Shorter range compared to tiltrotors |
| Vertical Takeoff and Landing (VTOL) | Full VTOL capability | Full VTOL capability |
| Complexity | High mechanical complexity with tilting mechanisms | Moderate complexity with added propulsion systems |
| Payload Capacity | Medium to high payload capacity | Variable payload depending on design |
| Operational Flexibility | Suitable for military, search and rescue, and transport | Effective in high-speed reconnaissance and attack roles |
Introduction to Tiltrotor and Compound Helicopter Technologies
Tiltrotor aircraft combine the vertical lift capability of helicopters with the speed and range of fixed-wing planes by rotating their rotors from vertical to horizontal position during flight. Compound helicopters integrate auxiliary propulsion systems and fixed wings to enhance speed and endurance beyond traditional helicopter performance. Both technologies aim to improve versatility and operational efficiency in rotorcraft design.
Historical Development and Milestones
Tiltrotor technology originated in the 1950s with the Bell XV-3 demonstrating vertical takeoff and transition to forward flight, marking a milestone in revolutionizing vertical lift capabilities. Compound helicopters, evolving from traditional rotorcraft designs, incorporated auxiliary propulsion and fixed wings in the 1960s to enhance speed and range, exemplified by the Sikorsky X2 program. Key advancements in tiltrotors include the operational success of the V-22 Osprey in the 1990s, while compound helicopters reached significant milestones with the development of high-speed demonstrators like the Eurocopter X3 in the 2010s.
Aerodynamic Principles and Flight Mechanics
Tiltrotors combine rotary wing lift with fixed-wing aerodynamics by rotating their nacelles to transition between vertical takeoff and efficient forward flight, leveraging both rotor thrust and fixed-wing lift for improved speed and range. Compound helicopters integrate auxiliary propulsion and fixed wings to offload rotor lift during high-speed cruise, reducing rotor drag and advancing aerodynamic efficiency. Both designs optimize flight mechanics by balancing rotor blade aerodynamics with fixed-wing lift components to enhance performance across multiple flight regimes.
Design Differences and Structural Configurations
Tiltrotors feature rotating nacelles that transition between vertical takeoff and horizontal flight, combining fixed-wing and rotary-wing elements for versatility in speed and range. Compound helicopters integrate a conventional rotary-wing with auxiliary propulsion and wings to reduce rotor lift during forward flight, enhancing efficiency and speed. Structural configurations differ as tiltrotors rely on robust pivot mechanisms for nacelle rotation, whereas compound helicopters incorporate fixed wings and additional thrust units without major alterations to the primary rotor assembly.
Performance Capabilities: Speed, Range, and Payload
Tiltrotor aircraft deliver superior speed and range by combining vertical takeoff with efficient fixed-wing flight, achieving cruise speeds up to 300 knots and ranges exceeding 800 nautical miles. Compound helicopters offer enhanced payload capacity and maneuverability with auxiliary propulsion and fixed wings, supporting heavy cargo and extended missions but generally reach cruise speeds around 180-210 knots and shorter ranges near 400-500 nautical miles. The choice between tiltrotor and compound helicopter hinges on prioritizing rapid long-distance travel versus heavy-lift performance and operational flexibility.
Vertical Takeoff and Landing (VTOL) Efficiency
Tiltrotors achieve higher Vertical Takeoff and Landing (VTOL) efficiency by combining the vertical lift capability of helicopters with the speed and range of fixed-wing aircraft through rotating nacelles. Compound helicopters enhance VTOL performance by adding auxiliary propulsion and lifting surfaces, reducing rotor load and drag during transition to forward flight. Overall, tiltrotors typically offer superior VTOL efficiency due to the ability to transition smoothly between vertical lift and forward thrust, optimizing energy use during takeoff and landing phases.
Operational Roles and Mission Flexibility
Tiltrotor aircraft excel in rapid troop deployment and long-range assault missions due to their vertical takeoff and fixed-wing flight capabilities, offering superior speed and range compared to compound helicopters. Compound helicopters provide enhanced hover performance and maneuverability in confined areas, making them ideal for search and rescue, reconnaissance, and transport in urban or rugged environments. Mission flexibility in tiltrotors supports a blend of fixed-wing speed and rotary-wing agility, while compound helicopters specialize in stable, sustained hover and precision operations under challenging conditions.
Technological Challenges and Innovations
Tiltrotors face technological challenges related to complex rotor tilt mechanisms and balancing vertical lift with efficient forward flight, requiring advanced materials and precise control systems. Compound helicopters innovate by integrating supplementary propulsion and fixed wings to enhance speed and stability, demanding breakthroughs in aerodynamics and powertrain integration. Both platforms push the boundaries of hybrid flight technologies, emphasizing the importance of adaptive flight controls and lightweight structural composites to overcome mechanical stress and vibration issues.
Safety Considerations and Reliability Factors
Tiltrotor aircraft feature complex mechanical systems such as rotating nacelles and transition mechanisms, which introduce unique failure modes impacting safety and reliability. Compound helicopters combine traditional rotor systems with auxiliary propulsion, offering improved stability and redundancy but require robust integration to prevent mechanical conflicts. Both platforms demand rigorous maintenance protocols and advanced diagnostics to mitigate risks associated with their hybrid configurations.
Future Trends and Applications in Aerospace Engineering
Tiltrotor aircraft, combining vertical takeoff capability with fixed-wing speed, are advancing through innovations in electric propulsion and autonomous flight systems, making them ideal for urban air mobility and rapid military deployment. Compound helicopters, integrating rotor and fixed-wing elements with auxiliary propulsion, show promise in enhancing range and cruise speed for search and rescue missions and offshore transport. Both technologies are converging towards hybrid-electric powertrains and advanced materials, driving the future of efficient, versatile vertical lift solutions in aerospace engineering.
Proprotor configuration
Tiltrotor aircraft utilize large, fully rotating proprotors that transition between vertical lift and forward thrust, whereas compound helicopters feature smaller, fixed proprotors supplemented by additional propulsion systems for increased speed.
Convertiplane
Convertiplanes like tiltrotors combine vertical takeoff and landing capabilities with fixed-wing speed, offering superior efficiency and versatility compared to traditional compound helicopters.
Coaxial rotors
Coaxial rotors in compound helicopters provide enhanced lift efficiency and maneuverability compared to tiltrotors by eliminating the need for a tail rotor and improving aerodynamic performance.
Drag reduction
Tiltrotors achieve drag reduction by transitioning rotors forward for efficient fixed-wing flight, while compound helicopters reduce drag through auxiliary propulsion and streamlined airframes without rotor tilting.
Pusher propeller
The tiltrotor utilizes a front-mounted pusher propeller for increased forward thrust and speed, while the compound helicopter relies on a rear-mounted pusher propeller to augment lift and enable higher cruise velocities.
Wing lift augmentation
Tiltrotors generate wing lift augmentation by transitioning from vertical lift to fixed-wing flight, whereas compound helicopters enhance wing lift through fixed wings combined with auxiliary propulsion for increased speed.
Variable geometry rotor
Tiltrotor aircraft achieve variable geometry through rotating engine nacelles to transition between vertical and horizontal flight, whereas compound helicopters use fixed rotors with auxiliary propulsion and variable pitch blades to enhance lift and speed.
Transition flight regime
Tiltrotors achieve transition flight by rotating their proprotors from vertical to horizontal, enabling efficient vertical takeoff and forward flight, while compound helicopters utilize auxiliary propulsion and fixed wings to enhance forward speed without complete rotor orientation change.
Auxiliary propulsion
Tiltrotors utilize auxiliary propulsion through tilt-wing or tilt-rotor mechanisms to enable vertical takeoff and transition to efficient forward flight, while compound helicopters incorporate auxiliary propulsion systems like pusher propellers or jet engines to boost forward speed without sacrificing hover capabilities.
Rotor unload
Tiltrotors achieve rotor unload at high speeds by transitioning lift to fixed wings, while compound helicopters use auxiliary propulsion and lift devices to reduce rotor lift and drag.

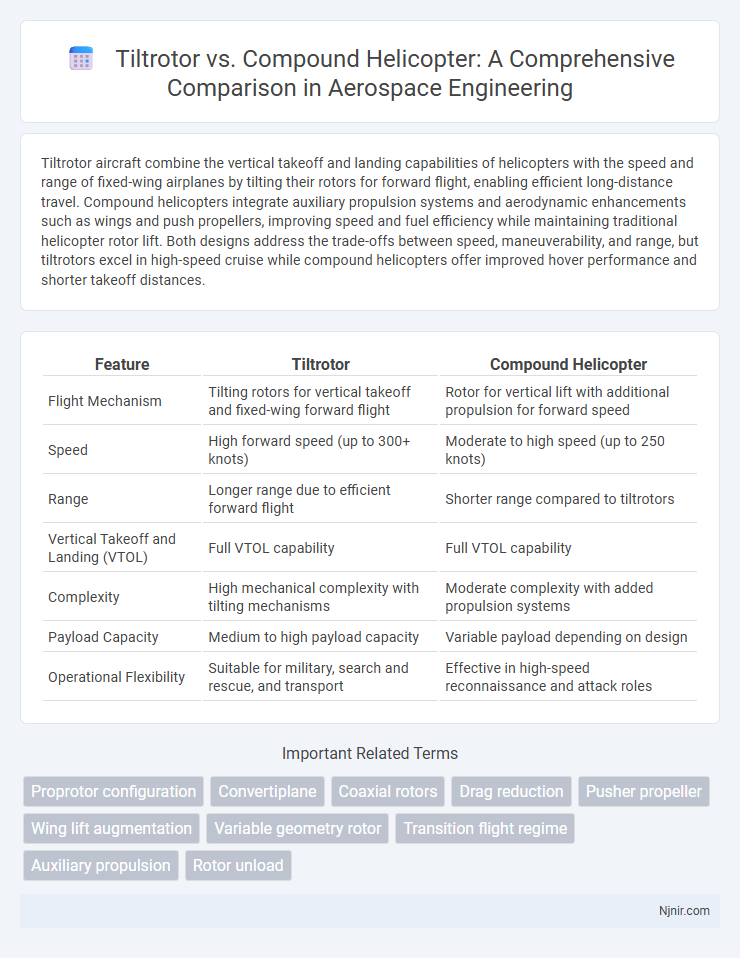

tiltrotor vs compound helicopter Infographic
