njnir.com Wind loads exert continuous lateral pressure on structures, varying with height, shape, and exposure, requiring designs that ensure aerodynamic stability and resistance to dynamic forces. Seismic loads induce rapid ground accelerations causing inertial forces that can generate complex stress patterns and demand enhanced ductility and energy dissipation in structural elements. Optimizing structural systems involves balancing resistance to wind-induced vibrations and seismic-induced stresses to maintain safety and serviceability throughout a building's lifespan.
Table of Comparison
| Parameter | Wind Load | Seismic Load |
|---|---|---|
| Cause | Air pressure from wind forces | Ground acceleration from earthquakes |
| Load Type | Lateral (horizontal) load | Dynamic load with multi-directional shaking |
| Design Codes | ASCE 7, Eurocode EN 1991-1-4 | ASCE 7, Eurocode EN 1998 |
| Load Duration | Longer duration (minutes to hours) | Short duration (seconds to minutes) |
| Load Variability | Relatively steady or gusty winds | Highly variable ground motion |
| Critical Factors | Wind speed, shape, height, exposure | Magnitude, distance, soil type, building natural frequency |
| Structural Impact | Applies mainly lateral forces; causes sway | Induces inertia forces; causes displacement and potential failure |
| Load Direction | Primarily unidirectional or bi-directional | Multi-directional (horizontal + vertical) |
| Load Combination | Combined with gravity and seismic loads | Combined with gravity and wind loads |
| Importance in Design | Vital for tall, slender structures in windy regions | Critical for seismic zones with risk of earthquakes |
Introduction to Wind Load and Seismic Load
Wind load refers to the forces exerted by wind pressure on structures, influenced by wind speed, direction, and building shape, and is critical in designing tall buildings and bridges to ensure stability. Seismic load involves the inertial forces generated by ground motion during earthquakes, which require structural flexibility and energy dissipation capabilities to prevent collapse. Both loads are fundamental in structural engineering for safety, but wind load primarily causes lateral forces while seismic load induces complex dynamic responses including vertical and horizontal accelerations.
Fundamental Differences Between Wind and Seismic Loads
Wind load primarily applies lateral pressure due to air movement at various speeds, generating continuous or fluctuating forces on a structure's surfaces. Seismic load results from ground acceleration during an earthquake, causing multidirectional dynamic forces throughout the building's foundation and superstructure. The distinction lies in wind loads acting as aerodynamic surface pressures, while seismic loads induce inertial forces from ground motion.
Sources and Nature of Wind Loads
Wind loads originate from atmospheric pressure variations caused by air movement, primarily influenced by factors such as wind speed, direction, terrain roughness, and building height. These loads act on the entire surface area of structures, producing predominantly lateral forces and pressure differentials, unlike seismic loads which stem from ground motion during earthquakes. Understanding wind load characteristics requires analyzing meteorological data and employing standards like ASCE 7, which define the dynamic pressure and gust factors critical for structural design.
Sources and Nature of Seismic Loads
Seismic loads are generated by the sudden release of energy within the Earth's crust, causing ground shaking and structural vibrations, primarily sourced from tectonic plate movements and fault ruptures. Unlike wind loads, which act horizontally due to atmospheric pressure differences, seismic loads have complex multi-directional forces including vertical accelerations, resulting in inertial forces on structures. Understanding the dynamic characteristics and frequency content of seismic ground motion is essential for designing buildings to resist these irregular and transient forces.
Key Design Considerations for Wind Loads
Key design considerations for wind loads include accurate assessment of wind speed, pressure distribution, and dynamic effects on structures. Engineers prioritize factors such as terrain roughness, building height, shape, and orientation to determine wind forces and moments. Incorporating local wind codes and standards like ASCE 7 ensures structural safety and performance under varying wind load conditions.
Key Design Considerations for Seismic Loads
Seismic load design prioritizes dynamic response analysis, base shear calculations, and ductility requirements to ensure structural resilience during earthquakes. Key considerations include soil-structure interaction, lateral force distribution, and compliance with building codes like ASCE 7, emphasizing energy dissipation and deformation capacity. Understanding seismic load effects aids in optimizing structural systems for safety and performance under earthquake-induced forces, contrasting with wind load focus on aerodynamic pressure and uplift.
Structural Response: Wind Load vs Seismic Load
Structural response to wind load involves sustained lateral forces causing sway and vibrations, typically producing steady-state oscillations in buildings. Seismic load induces sudden, dynamic forces generating multi-directional accelerations and complex, irregular structural movements with significant inertial effects. Wind loads primarily affect the superstructure, while seismic loads influence both the superstructure and foundation due to ground shaking.
Building Code Requirements for Wind and Seismic Loads
Building Code Requirements for Wind and Seismic Loads establish regulations to ensure structural safety and performance under dynamic forces. Wind loads are governed by standards such as ASCE 7-16, which specify design pressures based on wind speed maps, exposure categories, and importance factors, whereas seismic loads utilize the same standard's seismic design maps and response spectra tailored to geographic seismicity. The codes emphasize load combinations and structural detailing to prevent failure due to lateral forces from both wind and seismic events.
Materials and Construction Practices for Wind and Seismic Resistance
Materials used for wind load resistance often emphasize high tensile strength and flexibility, such as reinforced concrete, steel, and impact-resistant glass, to withstand lateral pressures and uplift forces. Construction practices focus on aerodynamic design, secure anchoring, and continuous load paths to prevent wind-induced failures. Seismic-resistant materials include ductile steel, engineered wood, and base isolators, with construction techniques prioritizing energy dissipation, seismic bracing, and flexible connections to absorb and redistribute earthquake forces effectively.
Case Studies: Performance Under Wind and Seismic Events
Case studies reveal that structures designed for seismic loads often perform better under wind events due to their enhanced lateral strength and ductility, while those optimized solely for wind loads may experience significant damage during earthquakes. For example, the Northridge earthquake demonstrated that buildings with insufficient seismic detailing suffered extensive damage despite adequate wind resistance. Comparative analysis of post-event data highlights the importance of integrating both wind and seismic load considerations in design codes to ensure resilient structural performance.
Lateral force-resisting systems
Lateral force-resisting systems designed for wind load emphasize aerodynamic drag and fluctuating pressures, while those for seismic load prioritize ductility and energy dissipation to withstand dynamic ground accelerations.
Dynamic response spectrum
Dynamic response spectrum analysis quantifies structural reactions under wind load and seismic load by comparing peak accelerations, frequencies, and damping characteristics to design resilient buildings.
Base shear
Wind load typically generates lower base shear compared to seismic load due to its steady, directional force, whereas seismic load induces higher base shear values from dynamic, multidirectional ground accelerations.
Ductility demand
Seismic load demands higher ductility in structures to dissipate energy and prevent collapse, whereas wind load typically requires stiffness and strength with lower ductility considerations.
Structural damping
Structural damping significantly reduces seismic load effects by dissipating vibrational energy, whereas wind loads typically demand design considerations for sustained aerodynamic forces with less reliance on damping.
Resonant frequency
Wind load and seismic load impose different resonant frequency demands on structures, with wind load typically exciting higher frequency vibrations and seismic load engaging lower frequency resonances, significantly affecting building design and dynamic response analysis.
Load path redundancy
Wind load and seismic load differ in load path redundancy, with seismic loads requiring greater redundancy to ensure structural resilience under dynamic, multi-directional forces.
Drift limitation
Wind load generally induces lateral drift that is more uniform and less dynamic compared to seismic load, making drift limitations stricter under seismic design criteria to prevent structural and non-structural damage.
Soil-structure interaction
Soil-structure interaction significantly influences the dynamic response of structures under both wind load and seismic load by altering stiffness, damping, and energy dissipation characteristics.
Building mass irregularity
Building mass irregularity intensifies seismic load effects more than wind load due to dynamic inertia forces causing uneven lateral acceleration distribution.

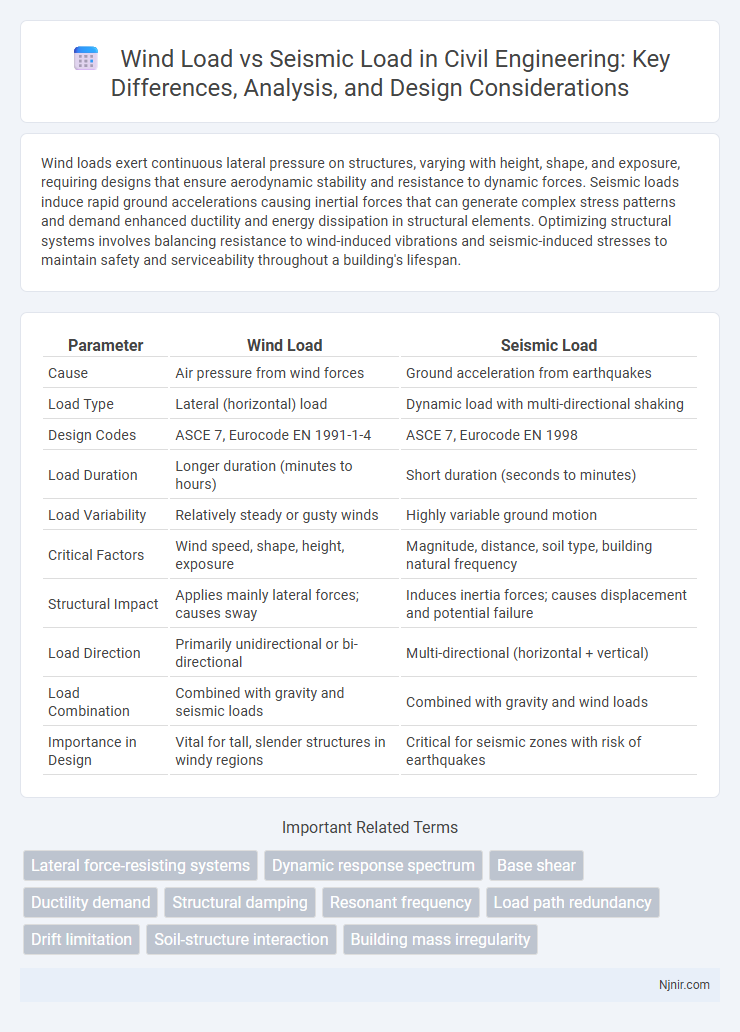

wind load vs seismic load Infographic
