njnir.com Shallow foundations transfer building loads close to the surface, making them suitable for stable soils with high bearing capacity. Deep foundations extend far below the surface, providing support in weak or expansive soils by reaching stronger strata. Choosing between shallow and deep foundations depends on soil conditions, load requirements, and project budget.
Table of Comparison
| Aspect | Shallow Foundation | Deep Foundation |
|---|---|---|
| Depth | Placed near surface, usually less than 3 meters | Extends deep into the ground, often more than 3 meters |
| Load Capacity | Supports light to moderate loads | Designed for heavy loads and high structural demands |
| Soil Suitability | Suitable for strong, stable surface soils | Needed when surface soil is weak or unstable |
| Construction Cost | Lower cost due to shallow excavation | Higher cost due to deep excavation and materials |
| Construction Time | Quicker construction process | Longer construction time due to complexity |
| Examples | Spread footings, mat foundations | Piles, drilled shafts (caissons) |
| Application | Residential buildings, light structures | High-rise buildings, bridges, heavy industrial structures |
Introduction to Foundation Types in Civil Engineering
Shallow foundations are structural elements that transfer building loads close to the ground surface, suitable for soils with adequate bearing capacity at shallow depths. Deep foundations, such as piles and caissons, extend deeper into the ground to reach stronger soil or rock layers, providing support when surface soils are weak or highly variable. Understanding the selection criteria between shallow and deep foundations is essential in civil engineering to ensure structural stability and cost-effectiveness based on soil conditions and load requirements.
Definition and Overview of Shallow Foundations
Shallow foundations are structural elements that transfer building loads to the earth near the surface, typically at depths less than the width of the foundation. They are designed to support relatively light loads and are commonly used for residential buildings, pavements, and low-rise structures where the soil bearing capacity is sufficient near the surface. Compared to deep foundations, which extend to greater depths to reach stronger soil or rock layers, shallow foundations are more economical and easier to construct but are limited by soil conditions and load requirements.
Definition and Overview of Deep Foundations
Deep foundations transfer building loads to deeper, more stable soil layers or bedrock, bypassing weaker surface soils that cannot support significant weight. Common types include piles, drilled shafts, and caissons, designed to provide strong support in challenging geotechnical conditions. These foundations are essential for large structures, bridges, and areas with loose or expansive soils to ensure structural stability and prevent settlement.
Key Differences Between Shallow and Deep Foundations
Shallow foundations transfer building loads close to the surface, typically used for stable soils with high bearing capacity, while deep foundations extend deeper to reach stronger soil or rock layers beneath weaker topsoil. Shallow foundations, including spread footings and mat foundations, are cost-effective and suitable for light to moderate loads, whereas deep foundations, such as piles and caissons, support heavy, structural loads in areas with poor soil conditions. The choice depends on soil type, load requirements, and construction constraints, with deep foundations offering greater load-bearing capacity and stability for taller or heavier structures.
Soil Conditions Suitable for Shallow Foundations
Shallow foundations are most effective in soil conditions with high bearing capacity, such as dense sand, gravel, or strong, compacted clay, which provide adequate support near the surface. These foundations are unsuitable for loose, compressible, or expansive soils that may cause settlement or instability. Evaluating soil bearing capacity and moisture content is crucial for determining the feasibility of shallow foundations.
Soil Conditions Suitable for Deep Foundations
Deep foundations are ideal for soil conditions with weak, compressible, or expansive upper layers where shallow foundations lack adequate bearing capacity. They transfer structural loads to deeper, more stable soil strata or rock formations, providing enhanced support in areas with high water tables or loose, granular soils. Pile foundations and drilled shafts are typical deep foundation types used in coastal, seismic, or heavily loaded construction sites requiring greater depth for stability.
Construction Methods: Shallow vs Deep Foundations
Shallow foundations are constructed by spreading the load near the surface using methods such as strip footings, spread footings, and mat foundations, suitable for stable soil with adequate bearing capacity. Deep foundations involve techniques like driven piles, drilled shafts, and caissons, transferring loads to deeper, more stable soil or rock layers when surface soils are weak or highly compressible. Choosing between shallow and deep foundations depends on site soil conditions, load requirements, and construction constraints, ensuring structural stability and cost-effectiveness.
Load-Bearing Capacity Comparison
Shallow foundations typically support loads up to 150 kPa and are suitable for stable soil near the surface, while deep foundations can bear loads exceeding 1,000 kPa by transferring them to deeper, more competent strata. The load-bearing capacity of shallow foundations depends on soil type, depth, and footing size, with common types including spread footings and mat foundations. In contrast, deep foundations such as piles and drilled shafts achieve higher capacities by engaging bedrock or dense soil layers, making them ideal for heavy structures or poor surface soil conditions.
Cost Analysis: Shallow vs Deep Foundations
Shallow foundations generally incur lower initial costs due to simpler excavation and material requirements, making them cost-effective for sites with strong surface soils. Deep foundations involve higher expenses related to specialized equipment, labor, and materials, driven by the need to reach load-bearing strata at greater depths. Project budgets should account for these cost disparities alongside soil conditions, load demands, and construction timelines to determine the most economical foundation type.
Applications and Selection Criteria in Civil Projects
Shallow foundations are typically selected for structures with light to moderate loads and stable soil conditions, such as residential buildings and low-rise commercial projects, due to their cost-effectiveness and ease of construction. Deep foundations are essential for heavy structures like skyscrapers and bridges where weak or variable soil requires transferring loads to deeper, more stable strata, using methods such as piles or drilled shafts. The selection criteria hinge on soil bearing capacity, load magnitude, environmental conditions, and project budget, ensuring optimal structural stability and safety.
Bearing Capacity
Shallow foundations are suitable for soils with high bearing capacity near the surface, while deep foundations transfer loads to deeper, stronger soil layers with greater bearing capacity.
Settlement
Shallow foundations typically experience greater settlement due to load distribution near the surface, while deep foundations minimize settlement by transferring loads to deeper, more stable soil layers.
Footing
Shallow foundations, such as strip or spread footings, transfer building loads near the surface, while deep foundations like pile footings reach deeper soil layers to support heavier structures on weak or unstable ground.
Pile Foundation
Pile foundations transfer structural loads to deep, stable soil layers or bedrock, providing superior support compared to shallow foundations in weak or unstable soil conditions.
Mat (Raft) Foundation
Mat (Raft) foundations distribute structural loads evenly over weak or expansive soils, offering cost-effective support compared to deep foundations for large, uniformly loaded areas.
Soil Stratification
Soil stratification significantly influences foundation choice, with shallow foundations suited for uniform, strong surface soils and deep foundations required for layered or weak soils to transfer loads to stable strata.
End Bearing
End bearing in shallow foundations transfers structural loads directly to competent soil near the surface, while deep foundations rely on end bearing to support loads by reaching stronger strata at greater depths.
Load Transfer
Shallow foundations transfer structural loads directly to the near-surface soil layers, while deep foundations transfer loads to deeper, more stable soil or rock strata for enhanced support.
Differential Settlement
Shallow foundations typically experience greater differential settlement compared to deep foundations due to their reliance on weaker, near-surface soils, whereas deep foundations transfer loads to more stable, uniform soil or rock layers, minimizing uneven settlement.
Underpinning
Underpinning typically involves strengthening or stabilizing shallow foundations to support existing structures, while deep foundation underpinning is used for transferring loads to deeper, more stable soil layers in cases of severe settlement or soil instability.

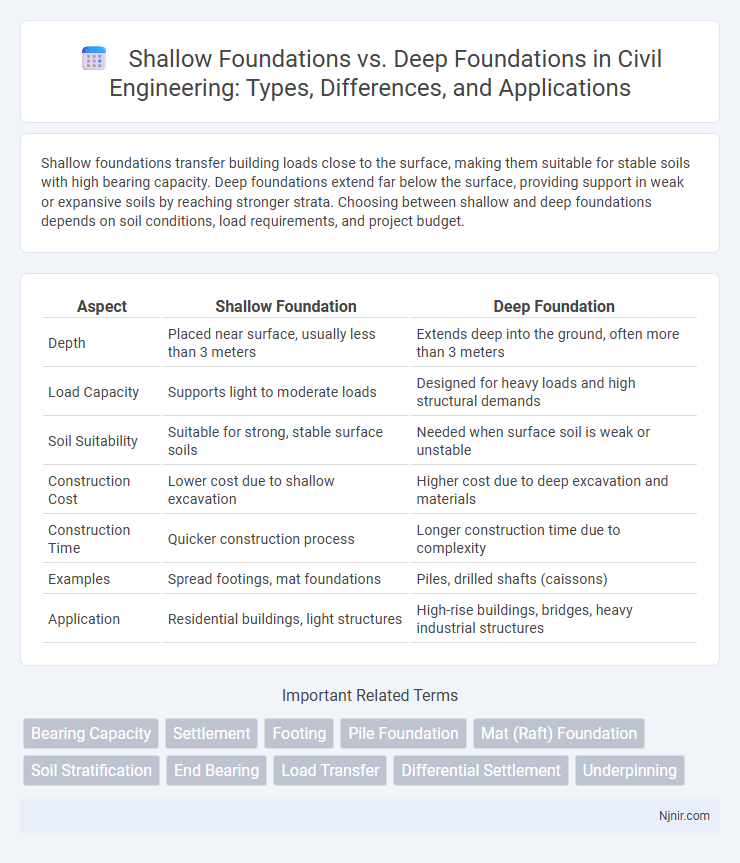

shallow foundation vs deep foundation Infographic
