njnir.com Steel structures offer high strength-to-weight ratios and rapid construction times, making them ideal for high-rise buildings and bridges. Composite structures combine steel and concrete to optimize performance, enhancing durability, load-bearing capacity, and resistance to environmental factors. Choosing between steel and composite structures depends on project requirements such as cost, design flexibility, and long-term maintenance.
Table of Comparison
| Aspect | Steel Structure | Composite Structure |
|---|---|---|
| Material Composition | 100% Steel | Steel + Concrete |
| Strength-to-Weight Ratio | High | Higher due to concrete integration |
| Construction Speed | Fast assembly | Moderate, requires curing time for concrete |
| Cost Efficiency | Moderate | Generally more cost-effective for long spans |
| Durability | Prone to corrosion, requires maintenance | Better resistance due to concrete encasement |
| Fire Resistance | Requires fireproofing treatments | Inherent fire resistance from concrete |
| Structural Flexibility | Highly flexible and adaptable | Less flexible due to composite action |
| Application | Skyscrapers, bridges, industrial buildings | Long-span bridges, floor systems, hybrid buildings |
Introduction to Steel and Composite Structures
Steel structures consist primarily of steel components like beams and columns that provide flexibility, high strength-to-weight ratio, and rapid construction benefits. Composite structures combine steel with materials such as concrete to enhance load-bearing capacity, improve durability, and optimize overall structural performance. The integration of steel and concrete in composite designs leverages the tensile strength of steel and compressive strength of concrete, resulting in efficient and cost-effective construction solutions.
Material Composition and Properties
Steel structures are primarily composed of carbon steel, offering high tensile strength, ductility, and uniformity, making them ideal for load-bearing frameworks and resistance to dynamic forces. Composite structures combine steel with materials like concrete or fiber-reinforced polymers, leveraging the compressive strength of concrete and the tensile strength of steel to optimize stiffness, durability, and overall structural performance. The resulting hybrid materials in composite structures enhance corrosion resistance, reduce weight, and improve energy efficiency compared to pure steel frameworks.
Design Flexibility and Architectural Applications
Steel structures offer superior design flexibility due to their high strength-to-weight ratio and ease of fabrication, enabling architects to create complex shapes and large open spaces without numerous support columns. Composite structures, combining steel and concrete, provide enhanced stiffness and durability, making them ideal for high-rise buildings and infrastructure requiring both aesthetic appeal and structural performance. The integration of composite materials supports innovative architectural applications by optimizing load distribution and reducing construction time while maintaining design versatility.
Structural Performance and Load-Bearing Capacity
Steel structures exhibit high tensile strength and ductility, enabling them to withstand significant dynamic and seismic loads with minimal deformation. Composite structures combine steel and concrete, leveraging steel's tensile strength and concrete's compressive capacity to achieve superior load-bearing efficiency and improved stiffness. This synergy enhances overall structural performance, reduces weight, and often results in optimized material usage for high-rise buildings and infrastructure projects.
Construction Methods and Speed
Steel structure construction employs prefabricated components that are rapidly assembled on-site, significantly reducing construction time and allowing for quicker project completion. Composite structures combine steel frames with concrete slabs, requiring additional curing time for concrete, which can slow down the overall construction process compared to purely steel solutions. Modular steel components and advanced welding techniques further accelerate steel structure erection, making it the preferred choice for projects with tight deadlines.
Cost Analysis and Economic Considerations
Steel structures typically incur higher initial costs due to material and fabrication expenses but offer faster construction times, reducing labor costs and project duration risks. Composite structures combine steel and concrete, optimizing material use, which can lower overall costs by improving load distribution and reducing steel quantity needed. Economic considerations favor steel in projects requiring speed and flexibility, while composites provide cost efficiency through enhanced durability and reduced maintenance over the structure's lifecycle.
Durability and Maintenance Requirements
Steel structures offer excellent durability due to their high resistance to environmental stressors like corrosion, especially when treated with protective coatings or galvanization. Composite structures combine materials such as steel and concrete to enhance overall strength and reduce maintenance needs by mitigating corrosion and fatigue issues common in pure steel frameworks. Maintenance requirements for composite structures are generally lower than steel alone, as the materials used provide complementary properties that enhance longevity and structural integrity.
Sustainability and Environmental Impact
Steel structures offer high recyclability with up to 90% of steel materials being reused, significantly reducing landfill waste and the demand for virgin resources. Composite structures combine materials like steel and concrete to optimize strength and durability, which can extend a building's lifespan and decrease the frequency of renovations or rebuilds. Both systems have environmental impacts, but composites often result in reduced carbon footprints due to minimized material volume and enhanced energy efficiency during building operation.
Fire Resistance and Safety Standards
Steel structures exhibit lower fire resistance due to rapid strength loss at high temperatures, often requiring extensive fireproofing materials to meet safety standards such as ASTM E119 and ISO 834. Composite structures combine steel with concrete, enhancing fire resistance by leveraging concrete's heat insulation and load-bearing capacity, allowing for better compliance with stricter fire safety codes like Eurocode 2 and NFPA 285. Fire safety performance in composite structures generally surpasses steel-only systems, reducing structural failure risks during prolonged fire exposure and improving occupant safety.
Applications in Modern Civil Engineering Projects
Steel structures are extensively utilized in high-rise buildings, bridges, and industrial facilities due to their exceptional strength-to-weight ratio and rapid construction capabilities. Composite structures, combining steel and concrete, offer enhanced durability and load distribution, making them ideal for long-span bridges, seismic-resistant buildings, and complex infrastructure projects. Modern civil engineering often integrates both steel and composite systems to optimize performance, cost-efficiency, and sustainability in large-scale urban developments and transportation networks.
Load-bearing capacity
Composite structures combining steel and concrete exhibit higher load-bearing capacity than traditional steel structures due to enhanced material synergy and improved stress distribution.
Ductility
Steel structures exhibit higher ductility compared to composite structures, allowing them to undergo significant deformation before failure and enhancing their seismic performance.
Fire resistance
Steel structures have lower fire resistance due to rapid strength loss at high temperatures, while composite structures enhance fire resistance by combining steel with fire-resistant materials like concrete.
Connection detailing
Connection detailing in steel structures typically involves welded or bolted joints emphasizing flexibility and ease of assembly, whereas composite structures require meticulous integration of steel and concrete interfaces to ensure load transfer and durability.
Shear connector
Shear connectors in composite structures enhance load transfer between steel and concrete, significantly improving shear resistance compared to traditional steel structures.
Section modulus
Composite structures typically exhibit a higher section modulus than steel structures due to the combined use of steel and concrete, which enhances bending resistance and structural efficiency.
Composite action
Composite structures maximize load-bearing capacity and stiffness by enabling effective composite action between steel and concrete components.
Deflection control
Steel structures exhibit higher deflection under load due to lower stiffness, whereas composite structures combine steel and concrete to significantly enhance deflection control and overall structural performance.
Construction speed
Steel structures enable faster construction speed compared to composite structures due to their prefabricated components and ease of assembly on-site.
Material compatibility
Steel structures offer superior material compatibility with diverse components due to their uniform thermal expansion and strength, while composite structures require careful consideration of differing material properties to prevent issues like delamination and stress concentrations.

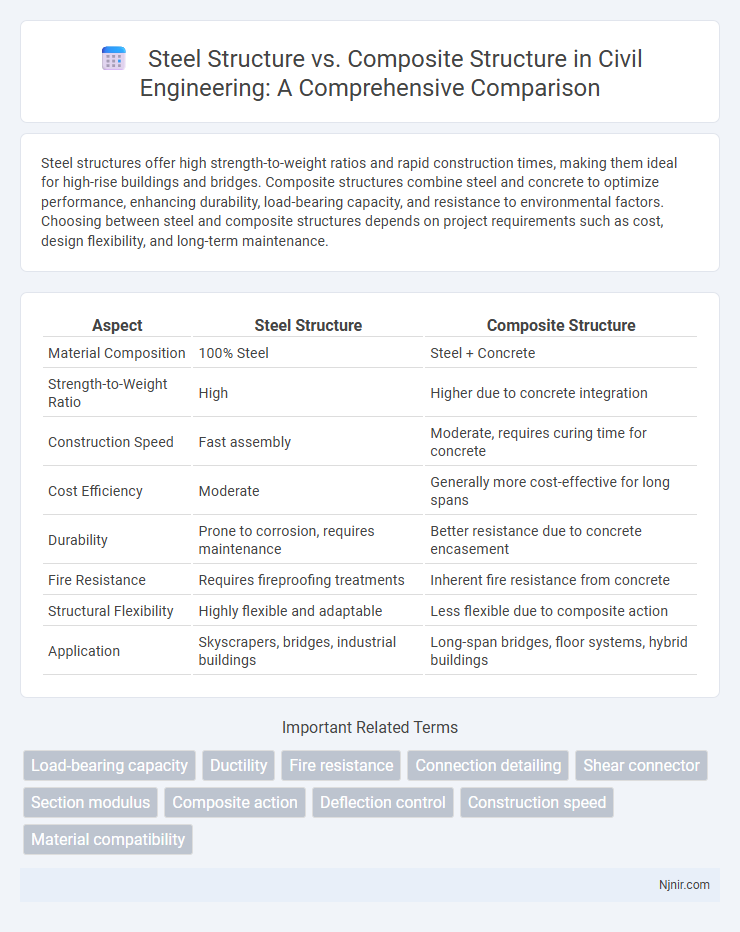

steel structure vs composite structure Infographic
