njnir.com Swept wings enhance high-speed performance by delaying shockwave formation and reducing drag, making them ideal for transonic and supersonic aircraft. Delta wings offer superior structural strength and excellent lift at high angles of attack, improving maneuverability and stability at supersonic speeds. The choice between swept and delta wings depends on specific mission requirements such as speed, agility, and aircraft size.
Table of Comparison
| Feature | Swept Wing | Delta Wing |
|---|---|---|
| Design | Wing angled backward from root to tip | Triangle-shaped, broad root tapering to a point |
| Lift & Aerodynamics | Good at transonic speeds, reduces drag | High lift at supersonic speeds, stable vortex lift |
| Speed Range | Subsonic to transonic, some supersonic | Designed for supersonic and hypersonic flight |
| Stability & Control | Good at low to medium speeds, may need high lift devices | High stability at high angles of attack, less stall prone |
| Structural Complexity | Conventional with easier manufacturing | Stronger structure but heavier and complex |
| Applications | Commercial jets, early supersonic fighters | Supersonic fighters, experimental and high-speed aircraft |
| Examples | Boeing 707, F-16 Fighting Falcon | Concorde, Dassault Mirage III |
Introduction to Swept Wings and Delta Wings
Swept wings feature a backward angle that enhances aircraft performance at transonic and supersonic speeds by delaying shockwave formation and reducing drag. Delta wings, characterized by their triangular shape, provide a large surface area for lift generation and superior structural strength, making them ideal for high-speed, high-angle-of-attack maneuvers. Both wing designs optimize aerodynamic efficiency, with swept wings favoring stability and control at near-sonic speeds, while delta wings excel in supersonic flight and agility.
Historical Development of Wing Designs
Swept wings emerged during World War II as a response to speed limitations caused by shock waves at transonic velocities, with German engineers pioneering their development to enhance fighter performance. Delta wings, inspired by aircraft like the Messerschmitt Me 163 Komet and later refined in the 1950s, provided structural strength and supersonic capabilities ideal for interceptors and experimental jets. The evolution of both wing designs significantly influenced the progression of modern high-speed aircraft by addressing aerodynamic challenges linked to supersonic flight.
Aerodynamic Principles: Swept vs. Delta Wings
Swept wings reduce drag at transonic speeds by delaying shockwave formation and managing airflow, enhancing performance in high-speed jet aircraft. Delta wings, characterized by their triangular shape and large surface area, provide excellent lift at high angles of attack and improved structural strength, facilitating sustained supersonic flight. The aerodynamic trade-offs between swept and delta wings revolve around optimizing lift-to-drag ratios, maneuverability, and stability across varying speed regimes.
Performance Across Speed Regimes
Swept wings excel at transonic speeds by delaying shockwave formation and reducing drag, enhancing fuel efficiency and maneuverability in commercial and military jets. Delta wings perform optimally at supersonic speeds, providing low drag and high lift, ideal for sustained high-speed flight and improved stability during sharp maneuvers. However, delta wings often generate higher drag at lower speeds, leading to less efficient takeoff and landing compared to swept wings.
Stability and Control Characteristics
Swept wings offer improved stability at transonic speeds by delaying shockwave formation, enhancing control during high-speed flight. Delta wings provide strong pitch stability due to their large surface area and leading-edge vortex lift, but can experience less favorable low-speed control characteristics. Both designs balance stability and maneuverability differently, with swept wings favoring smoother control transitions and delta wings excelling in high-angle-of-attack performance.
Structural Considerations and Materials
Swept wings typically require reinforced spars and ribs to handle aerodynamic loads and bending moments, utilizing advanced aluminum alloys or composite materials for weight reduction and strength. Delta wings benefit from a simpler internal structure due to their constant chord and thickness but demand high-strength materials like titanium or carbon-fiber composites to withstand intense aerodynamic stress and heat at high speeds. Both wing types leverage modern composites to optimize structural integrity while minimizing weight, crucial for performance and fuel efficiency in military and supersonic aircraft.
Fuel Efficiency and Drag Comparison
Swept wings provide better fuel efficiency at transonic speeds due to reduced wave drag and improved lift-to-drag ratio compared to delta wings, which excel at supersonic speeds but generate higher drag at lower speeds. Delta wings create stronger vortex lift that increases induced drag during subsonic flight, resulting in increased fuel consumption. Aircraft with swept wings typically achieve longer range and lower fuel burn on commercial routes, while delta wings are optimized for high-speed performance and maneuverability rather than fuel economy.
Applications in Commercial and Military Aircraft
Swept wings dominate commercial aircraft designs such as the Boeing 737 and Airbus A320 due to their efficiency at transonic speeds, reducing drag and improving fuel economy. Delta wings, commonly employed in military aircraft like the Dassault Mirage and Eurofighter Typhoon, provide superior maneuverability and structural strength at supersonic speeds, enabling rapid acceleration and agile combat performance. The choice between swept and delta wing configurations hinges on mission requirements, with swept wings favored for efficient subsonic cruise and delta wings optimized for high-speed interception and agile dogfighting.
Future Innovations in Wing Design
Swept wing and delta wing designs each offer unique advantages that drive future innovations in aerospace engineering, with swept wings providing enhanced supersonic performance and fuel efficiency, while delta wings enable superior maneuverability and structural strength at high speeds. Emerging technologies such as adaptive morphing surfaces and advanced composite materials are being integrated into both wing types to optimize aerodynamic efficiency and reduce drag in next-generation aircraft. Innovations in computational fluid dynamics (CFD) and artificial intelligence further accelerate the development of hybrid wing concepts that combine the benefits of swept and delta configurations for improved performance in both commercial and military aviation.
Conclusion: Choosing the Optimal Wing Configuration
Swept wings offer superior performance at transonic speeds due to reduced drag and better lift-to-drag ratios, making them ideal for commercial and some military aircraft. Delta wings excel in high-speed, supersonic flight with enhanced structural strength and large internal volume for fuel, favored in fighter jets and supersonic designs. Selecting the optimal wing configuration depends on mission requirements, speed regimes, maneuverability needs, and aircraft design priorities.
Aspect Ratio
Swept wings have a higher aspect ratio than delta wings, improving lift-to-drag ratio and efficiency at transonic speeds, while delta wings feature a lower aspect ratio that enhances structural strength and supersonic performance.
Critical Mach Number
Swept wings typically have a higher Critical Mach Number than delta wings, allowing them to delay shockwave formation and reduce drag at transonic speeds.
Leading-Edge Vortex
Swept wings generate moderate leading-edge vortices that enhance lift at high angles of attack, while delta wings produce strong, stable leading-edge vortices that significantly increase lift and delay stall during supersonic flight.
Transonic Drag
Swept wings reduce transonic drag by delaying shock wave formation and minimizing wave drag, while delta wings generate stronger vortices that increase lift but often result in higher transonic drag due to larger shock-induced separation.
Vortex Lift
Swept wings generate moderate vortex lift at high angles of attack, enhancing maneuverability, while delta wings produce strong, stable leading-edge vortices that significantly increase vortex lift for superior high-speed performance and agility.
Shockwave Formation
Swept wings delay shockwave formation by reducing the effective Mach number perpendicular to the leading edge, while delta wings generate stronger shockwaves due to their larger leading-edge sweep and higher angles of attack.
Wing Sweep Angle
Swept wings feature moderate wing sweep angles typically between 25deg and 45deg to delay shockwave formation and increase critical Mach number, while delta wings have sharp sweep angles often exceeding 50deg, providing enhanced supersonic stability and lift at high speeds.
Pitch Stability
Swept wings provide moderate pitch stability by delaying shockwave formation at transonic speeds, while delta wings offer superior pitch stability through a large leading-edge vortex generation that enhances lift and control at high angles of attack.
Low-Speed Handling
Swept wings provide better low-speed handling and stability due to delayed stall onset compared to delta wings, which typically require higher angles of attack and specialized control surfaces for effective low-speed control.
Supersonic Performance
Swept wings reduce shockwave drag and improve lift-to-drag ratio at transonic speeds, while delta wings provide superior supersonic stability and structural strength, enabling higher maximum speeds and better control at Mach 2 and beyond.

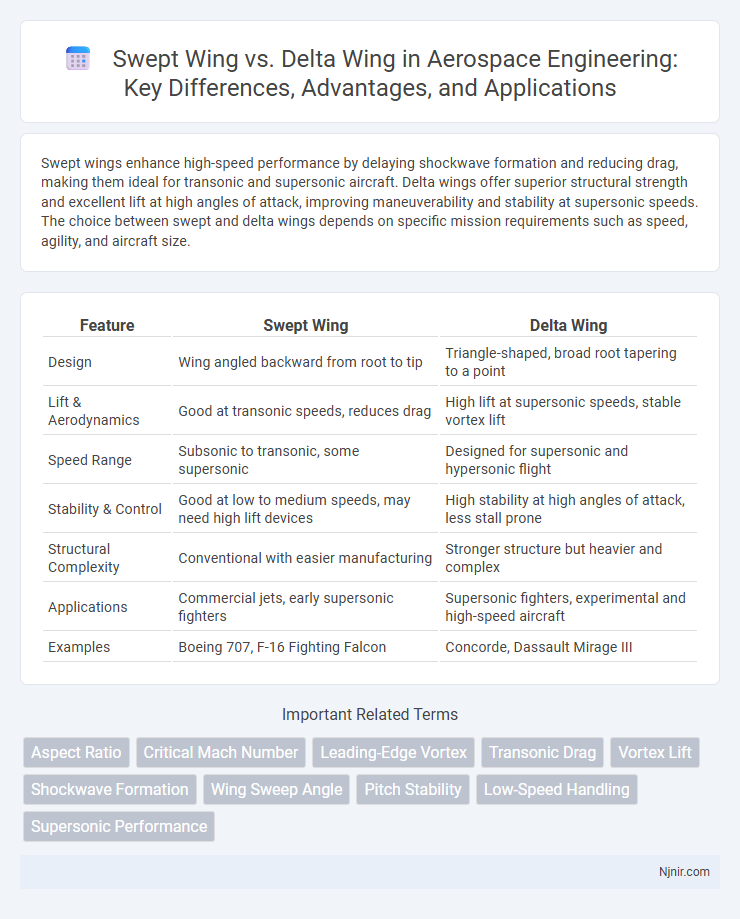

swept wing vs delta wing Infographic
