njnir.com Incremental launching and balanced cantilever methods are prominent techniques in bridge construction, each optimizing structural efficiency and site conditions. Incremental launching involves pushing pre-assembled segments from one side, ideal for uniform spans and minimal environmental impact, while balanced cantilever construction extends segments symmetrically from piers, suited for long spans over obstacles without falsework. Choosing between these methods depends on factors like span length, site accessibility, and load requirements, with incremental launching often favored for straight bridges and balanced cantilever for curved or variable spans.
Table of Comparison
| Aspect | Incremental Launching | Balanced Cantilever |
|---|---|---|
| Construction Method | Segmental bridge launched from one end in slices | Bridge constructed symmetrically from piers towards mid-span |
| Typical Use | Long bridges with straight alignment and constant cross-section | Bridges over obstacles with difficult access or curved alignment |
| Span Length | Typically up to 200 m per span | Long spans up to 250 - 300 m |
| Equipment Required | Launching nose, jacks, heavy equipment at one end | Form travelers, cranes, balanced construction equipment |
| Structural Type | Precast or cast-in-place segments in prestressed concrete | Segmental balanced cantilever with prestressed concrete or steel |
| Advantages | Efficient for repetitive spans, minimized falsework, better quality control | Suitable for long spans, limited ground access, and variable geometry |
| Disadvantages | Limited to straight or slightly curved alignments, heavy launching forces | Complex temporary support, higher labor and formwork costs |
| Environmental Impact | Minimal ground disturbance due to launching from one side | Requires temporary supports, can impact environment at pier locations |
| Cost | Cost-effective for repetitive, standardized spans | Higher initial cost due to complexity and equipment needs |
Introduction to Bridge Construction Methods
Incremental launching and balanced cantilever are two prominent bridge construction methods tailored for specific site conditions and span lengths. Incremental launching involves assembling the superstructure on one side of the obstacle and gradually pushing it forward, minimizing disruption below, ideal for uniform spans. Balanced cantilever construction builds segments symmetrically from piers, suitable for longer spans and challenging terrains where falsework is impractical.
Overview of Incremental Launching Technique
Incremental launching technique involves constructing a bridge superstructure in segments at one end of the bridge and progressively pushing or launching them longitudinally over the piers until the entire span is completed. This method minimizes the need for extensive scaffolding or falsework, making it ideal for sites with difficult terrain or environmental restrictions. The technique enhances precision in alignment and reduces onsite labor, offering significant advantages over the balanced cantilever method in terms of construction speed and safety.
Fundamentals of Balanced Cantilever Construction
Balanced cantilever construction involves building bridge segments symmetrically from piers to maintain equilibrium and reduce bending moments during erection, using cantilever arms extended outward on both sides. This method is especially effective for spanning long distances over obstacles such as rivers or highways, where falsework is impractical. Incremental launching, by contrast, pushes pre-constructed segments longitudinally from one end of the bridge, relying heavily on temporary supports, making balanced cantilever technique preferable in complex site conditions and variable topographies.
Structural Design Considerations
Incremental launching requires precise control of bending moments and shear forces during the gradual advancement of the bridge deck, demanding careful attention to temporary supports and staging loads in the structural design. Balanced cantilever construction emphasizes the static equilibrium of cantilever arms by symmetric segmental construction on both sides of the piers, necessitating robust pier design to resist torsional and bending stresses. Structural considerations include selecting appropriate materials and cross-sections to manage stress distributions and deflections unique to each method, ensuring stability and durability throughout construction and service life.
Material Selection and Requirements
Incremental launching involves segmental construction using prestressed concrete or steel girders, requiring materials with high tensile strength and durability to withstand repeated stressing during launch. Balanced cantilever construction often utilizes reinforced concrete or composite materials designed to support large cantilevered spans with high flexural capacity and resistance to cracking under asymmetric loading. Material selection for both methods prioritizes strength-to-weight ratio, corrosion resistance, and long-term performance tailored to the structural demands and environmental exposure of the bridge site.
Construction Sequence and Process
Incremental launching involves the progressive pushing of a prefabricated bridge superstructure from one end, requiring stable temporary supports and precise alignment control throughout the process. Balanced cantilever construction utilizes sequential segmental casting on either side of the pier, maintaining structural equilibrium by alternately adding segments to balance moments. The launching method minimizes formwork and falsework needs ahead of the bridge axis, while balanced cantilever allows for construction over obstacles without extensive scaffolding, emphasizing different logistical and stability considerations.
Advantages of Incremental Launching
Incremental launching offers precise control over alignment and structural integrity by systematically advancing the bridge deck, reducing the need for extensive falsework and minimizing environmental impact. This method enhances construction safety and efficiency by allowing work predominantly from one end, making it ideal for challenging terrains such as deep valleys or waterways. Cost savings are achieved through reduced on-site labor and material handling, accelerating project timelines while maintaining high-quality standards.
Advantages of Balanced Cantilever Method
The balanced cantilever method offers superior adaptability for constructing long-span bridges over obstacles such as rivers and deep valleys where falsework is impractical. This technique enables segments to be cast in situ on both sides of the piers simultaneously, ensuring balanced load distribution and minimizing bending moments during construction. Its capacity to accommodate complex geometries and variable span lengths makes it highly efficient for challenging bridge designs compared to the incremental launching method.
Comparative Analysis: Cost, Speed, and Efficiency
Incremental launching typically offers lower initial costs and faster construction speeds due to repetitive precast segment installation, making it ideal for long-span bridges with simple geometry. Balanced cantilever construction, although generally higher in cost and slower, excels in handling complex geometries and longer spans where on-site casting and segmental balance control enhance structural precision. Efficiency in incremental launching is driven by minimal formwork and labor intensity, whereas balanced cantilever benefits from adaptability and structural performance in challenging site conditions.
Suitability for Various Bridge Spans and Site Conditions
Incremental launching suits medium to long spans typically ranging from 30 to 250 meters, especially favorable for sites with limited access or environmental restrictions, as it allows superstructure construction behind an abutment and progressive launching. Balanced cantilever spans excel in longer spans from 50 to 200 meters, ideal for deep valleys, wide rivers, or urban settings with obstacles, due to minimal falsework and balanced segmental construction from piers. Site topography, span length, environmental impact, and construction constraints dictate the optimal choice between incremental launching's linear progression and balanced cantilever's segmented approach.
Segmental construction
Incremental launching enables efficient segmental construction by progressively sliding precast segments into place, while balanced cantilever construction assembles segments symmetrically from piers to maintain structural equilibrium during erection.
Precast segments
Incremental launching offers controlled, repetitive precast segment placement ideal for straight or lightly curved bridges, while balanced cantilever excels in constructing longer spans with variable precast segments suited for complex geometries and minimal falsework.
Temporary supports
Incremental launching requires extensive temporary supports along the entire span for stability during construction, whereas balanced cantilever minimizes the need for temporary supports by using cantilevered segments balanced on piers.
Longitudinal prestressing
Incremental launching offers precise control of longitudinal prestressing continuity during segmental bridge construction, while balanced cantilever requires careful tensioning management at cantilever joints to maintain effective prestress distribution.
Casting yard
Incremental launching requires a large, well-equipped casting yard for prefabrication, while balanced cantilever minimizes casting yard size by casting segments directly on-site.
Pier table
Incremental launching method reduces pier table size by transferring loads progressively from the launching nose, while balanced cantilever construction requires larger pier tables to support cantilevered segments during segmental casting.
Erection gantry
Incremental launching uses a stationary erection gantry to push bridge segments forward, while balanced cantilever erection gantries support segments on both sides of piers, enabling precise cantilever construction.
Closure pour
Closure pour in incremental launching requires precise coordination to ensure structural integrity at the joint, whereas balanced cantilever closure pours demand meticulous alignment and formwork stability to manage cantilevered segments effectively.
Construction joints
Incremental launching minimizes construction joints by advancing the superstructure in segments from one end, while balanced cantilever requires multiple construction joints at pier locations to connect cantilevered segments symmetrically.
Progressive assembly
Incremental launching enables progressive assembly by sequentially advancing the bridge superstructure over supports, while balanced cantilever constructs bridge segments simultaneously on both sides of a pier to maintain equilibrium during progressive assembly.

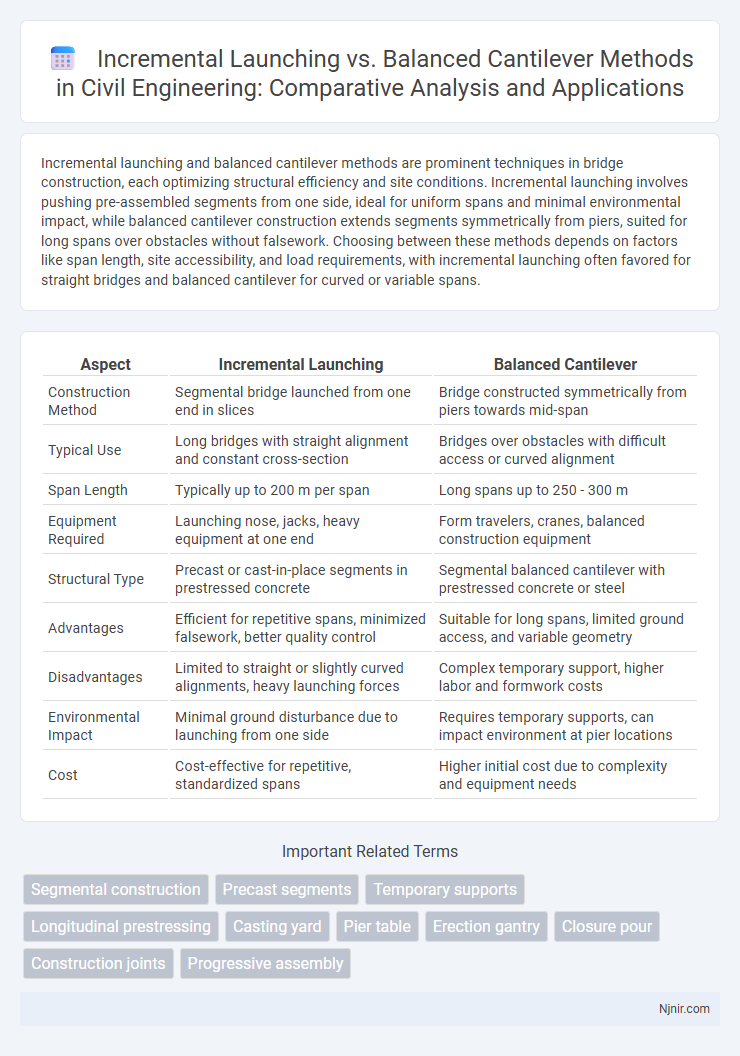

Incremental launching vs Balanced cantilever Infographic
