njnir.com Soil nailing reinforces unstable slopes by installing closely spaced steel bars into the soil, enhancing its shear strength and overall stability. Ground anchoring provides tensile support through tensioned cables or rods fixed into stable ground layers, effectively resisting lateral and uplift forces. Both techniques improve slope stability, but soil nailing is preferable for shallow excavations, while ground anchoring suits deep or heavily loaded structures.
Table of Comparison
| Aspect | Soil Nailing | Ground Anchoring |
|---|---|---|
| Definition | Reinforcement technique using steel bars inserted into soil to stabilize slopes or excavations. | System of tensioned anchors drilled into stable ground to support retaining structures or slopes. |
| Primary Use | Slope stabilization, retaining walls, excavation support. | Anchoring retaining walls, bridge abutments, or deep excavation support. |
| Installation Depth | Shallow to moderate depth, typically within unstable soil zones. | Deeper, reaching stable soil or rock layers beyond unstable zones. |
| Load Type | Primarily shear load resistance. | Primarily tension load resistance. |
| Soil Suitability | Effective in coherent soils with sufficient strength for bar placement. | Applicable in various soils, requires stable anchor zone for load transfer. |
| Cost | Generally lower than ground anchoring due to simpler installation. | Higher cost due to drilling and tensioning equipment requirements. |
| Maintenance | Minimal maintenance; bars are typically passive. | Requires inspection and tension adjustment over time. |
| Design Life | 20-50 years, depending on corrosion protection. | 30-60 years with proper corrosion controls and monitoring. |
Introduction to Soil Nailing and Ground Anchoring
Soil nailing involves reinforcing soil by inserting closely spaced steel bars drilled into a slope or excavation to enhance stability, commonly used in retaining walls and excavation support. Ground anchoring employs tensioned steel tendons drilled deep into stable ground layers to provide additional structural support for slopes, retaining walls, or foundation systems. Both techniques improve soil stability but differ in installation depth, load transfer mechanisms, and typical applications in geotechnical engineering.
Fundamental Principles of Soil Nailing
Soil nailing stabilizes slopes by inserting closely spaced steel bars into pre-drilled holes, which are then grouted to create a composite mass that increases shear strength and soil cohesion. This method relies on the interaction between the soil and the nails to work as a reinforced soil mass, providing passive resistance primarily through friction and bearing. Unlike ground anchoring, which uses tensioned anchors to resist external loads, soil nailing enhances the inherent stability of the soil by reinforcing it internally.
Core Concepts of Ground Anchoring
Ground anchoring involves installing tension elements, such as steel tendons, into stable soil or rock layers to provide long-term lateral support for retaining structures, unlike soil nailing which reinforces near-surface soil with closely spaced nails. Core concepts of ground anchoring include load transfer through anchor heads, bond strength between grout and substrate, and anchorage length that ensures sufficient capacity to resist imposed loads. Ground anchors are designed to mobilize force primarily through axial tension, are often pre-tensioned or post-tensioned, and are critical in stabilizing slopes, retaining walls, and deep excavations.
Design Considerations for Both Techniques
Design considerations for soil nailing involve evaluating soil cohesion, nail length, spacing, and corrosion protection to ensure structural stability and effective load transfer. Ground anchoring design focuses on anchor capacity, bond strength, tendon type, grout quality, and anchorage zone detailing to resist tensile forces and stabilize slopes or retaining structures. Both techniques require thorough geotechnical investigation and compatibility with site conditions to optimize safety and performance.
Installation Procedures: Step-by-Step Comparison
Soil nailing installation begins with drilling holes into the slope or excavation face, followed by inserting steel bars (nails) into the drilled holes, then grouting around the bars to provide bond and corrosion protection. Ground anchoring involves drilling inclined holes to the required depth, placing high-tensile steel tendons or rods, and then tensioning the anchors after grouting to achieve the necessary load capacity. Both methods require careful hole alignment and grouting, but ground anchoring demands precise tensioning equipment and monitoring to ensure structural effectiveness.
Material Selection and Equipment Requirements
Soil nailing typically uses high-strength steel bars or rods grouted into drilled holes to reinforce slopes, requiring drilling rigs, grout mixers, and tensioning equipment for installation. Ground anchoring involves steel tendons or cables installed to more significant depths for stabilizing retaining walls or foundations, demanding specialized anchor drilling rigs and hydraulic jacks to apply precise tensioning force. Material selection for ground anchors usually emphasizes corrosion-resistant coatings due to longer exposed lengths, while soil nails may have shorter corrosion protection requirements depending on environmental conditions.
Applications in Civil Engineering Projects
Soil nailing is primarily used for stabilizing existing slopes, retaining walls, and excavation support by reinforcing the soil with closely spaced steel bars grouted into drilled holes. Ground anchoring is applied in deep excavation works, bridge abutments, and dam stabilization by providing tensile support to transfer load from unstable soil or structures to stable ground layers. Both techniques enhance slope stability and structural integrity but are selected based on site conditions, load requirements, and project specifications in civil engineering projects.
Performance, Safety, and Durability Assessment
Soil nailing provides effective reinforcement by installing closely spaced steel bars grouted into pre-drilled holes, offering high performance in stabilizing slopes and retaining walls with minimal disturbance. Ground anchoring utilizes tensioned steel tendons anchored in stable soil or rock layers, delivering superior load-carrying capacity and enhanced safety for deep excavation support and heavy structures. Durability assessments reveal soil nails exhibit corrosion resistance through protective coatings and grout quality, while ground anchors benefit from corrosion protection systems and periodic maintenance to ensure long-term structural integrity.
Cost Analysis and Economic Feasibility
Soil nailing typically offers lower initial costs compared to ground anchoring due to simpler installation processes and reduced material requirements, making it economically feasible for shallow and moderate-depth applications. Ground anchoring, while more expensive upfront because of specialized equipment and higher labor intensity, provides greater load-bearing capacity and longer-term stability for deep excavation projects, potentially reducing maintenance costs over time. A comprehensive cost analysis must weigh immediate installation expenses against project scale, soil conditions, and expected lifespan to determine the most cost-effective ground reinforcement method.
Environmental Impacts and Sustainability
Soil nailing typically causes less environmental disturbance compared to ground anchoring since it requires fewer excavation activities and reduces soil displacement, preserving existing vegetation and minimizing habitat disruption. Ground anchoring involves deeper drilling and the use of synthetic materials that may contribute to soil and groundwater contamination if not managed properly, impacting local ecosystems. Choosing soil nailing can enhance sustainability by promoting soil stability with lower carbon emissions and less resource consumption, aligning with eco-friendly construction practices.
Grouted Tendons
Grouted tendons in soil nailing provide continuous bonding along the anchor length for enhanced soil stability compared to ground anchoring, which typically relies on discrete anchor points.
Shotcrete Facing
Soil nailing with shotcrete facing provides immediate lateral support by reinforcing existing soil, whereas ground anchoring relies on tensioned anchors and may require additional facing for soil stability.
Passive Reinforcement
Soil nailing provides passive reinforcement by installing closely spaced steel bars that bond with the surrounding soil to resist movement, while ground anchoring achieves passive resistance through tensioned anchors anchored into stable ground layers for structural support.
Active Anchors
Active anchors in soil nailing systems provide enhanced stabilization by applying continuous tensile force, improving ground retention efficiency compared to passive ground anchoring methods.
Soil-Structure Interaction
Soil nailing enhances soil-structure interaction by reinforcing in-situ soil through closely spaced steel bars, whereas ground anchoring stabilizes structures by transferring tensile forces to deeper, stable soil layers via anchored tendons.
Reinforced Earth Walls
Soil nailing enhances Reinforced Earth Walls by reinforcing in-situ soil with steel bars, while ground anchoring provides external tension support through anchored cables, offering greater stability for steeper or taller wall designs.
Load Transfer Mechanisms
Soil nailing transfers load through frictional resistance along the length of the nails embedded in the soil, whereas ground anchoring relies on tensile forces transferred to stable soil or rock strata via anchorage plates and tendons.
Pullout Resistance
Soil nailing provides pullout resistance primarily through friction between the nails and surrounding soil, while ground anchoring achieves higher pullout resistance by anchoring into stable strata with tensioned anchors.
Nail Head Plates
Nail head plates in soil nailing provide critical surface support by evenly distributing load and enhancing soil confinement, whereas ground anchoring relies more on tendon tension with minimal surface load distribution through plates.
Prestressing Forces
Soil nailing primarily relies on passive soil resistance with limited prestressing forces, whereas ground anchoring utilizes active prestressing forces to stabilize slopes and retaining structures more effectively.

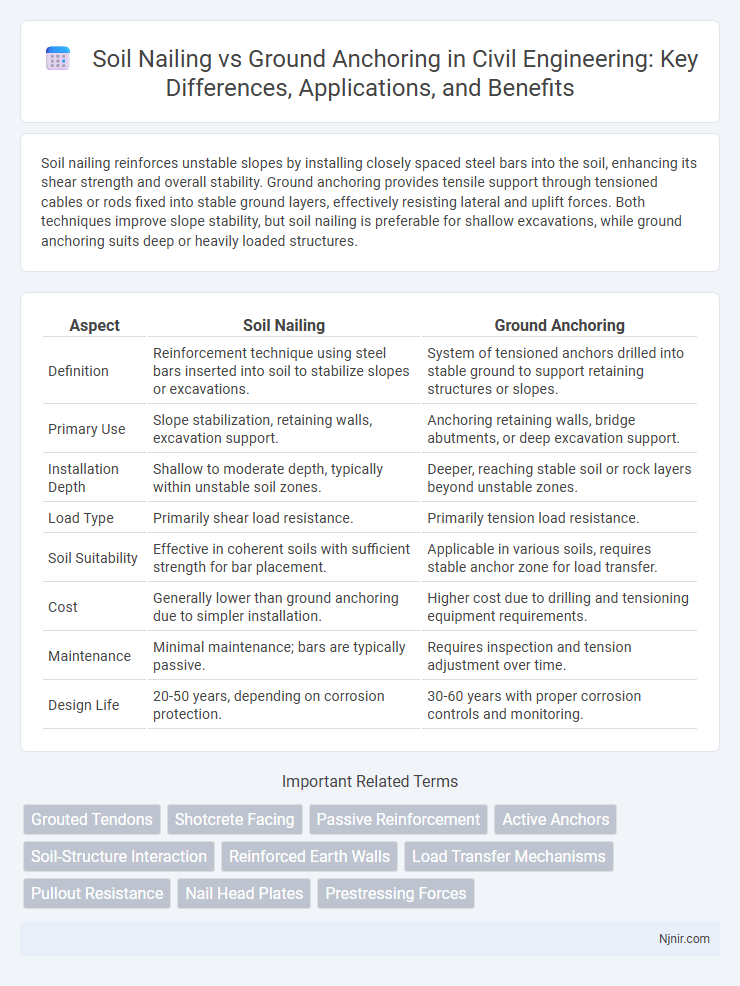

soil nailing vs ground anchoring Infographic
