njnir.com Echo sounders provide precise depth measurements by emitting sound pulses and recording the time it takes for the echoes to return from the seabed, making them essential for safe navigation and underwater mapping. Sonar systems, broader in application, use sound propagation to detect and locate objects underwater, including fish, submarines, and underwater hazards by analyzing sound waves reflected from these targets. While echo sounders specialize in depth sounding, sonar integrates both detection and ranging capabilities, enhancing marine exploration and environmental monitoring.
Table of Comparison
| Feature | Echo Sounder | Sonar |
|---|---|---|
| Definition | Device measuring water depth by reflecting sound pulses off the seabed. | System using sound propagation to detect objects underwater. |
| Primary Use | Depth measurement and seabed profiling. | Object detection, navigation, and underwater communication. |
| Frequency Range | Typically high frequency (200 kHz) for precise depth readings. | Varies from low (1 kHz) to high frequencies depending on application. |
| Range | Short to medium distances (up to ~500 meters). | Short to long distances (up to several kilometers). |
| Output | Depth readings, bathymetric data. | Images, maps of underwater objects, and navigation data. |
| Complexity | Simple, focused on depth measurement. | Complex systems integrating processing and display. |
| Common Applications | Fishing, marine navigation, harbor surveying. | Submarine navigation, underwater exploration, military use. |
Introduction to Echo Sounder and Sonar Technologies
Echo sounders utilize sound pulses to measure water depth by calculating the time taken for echoes to return from the seabed, offering precise bathymetric data crucial for navigation and underwater mapping. Sonar systems extend this concept by employing various frequencies and signal processing techniques to detect underwater objects, map terrain, and support applications such as fisheries, submersible navigation, and military operations. Both technologies rely on acoustic wave propagation, but sonar's versatility includes active and passive modes, allowing it to interpret complex underwater environments beyond simple depth measurement.
Fundamental Principles of Echo Sounders
Echo sounders operate by emitting high-frequency sound pulses downward into the water and measuring the time interval until the echoes reflect off the seabed or underwater objects, providing precise depth readings. They rely on the fundamental principle of sound wave propagation and echo return time to calculate accurate distance measurements. Unlike broader sonar systems that may include diverse functionalities, echo sounders specialize in depth profiling using these focused acoustic pulses.
Working Mechanism of Sonar Systems
Sonar systems operate by emitting sound pulses into the water and measuring the time it takes for the echoes to return after bouncing off objects or the seabed. Echo sounders specifically use this principle to determine water depth by calculating the distance based on the sound wave's travel time. Advanced sonar technology incorporates signal processing techniques to differentiate between various underwater targets and improve detection accuracy.
Key Differences Between Echo Sounders and Sonar
Echo sounders emit sound pulses directly downward to measure water depth by timing the return of echoes from the seabed, while sonar systems use a broader range of frequencies and directions to detect and map objects underwater. Echo sounders primarily focus on depth measurement for navigation and fishing, whereas sonar encompasses active and passive techniques for detecting underwater objects, animals, and terrain features. The operational frequency range of echo sounders is typically higher and more specialized, whereas sonar systems adapt frequencies based on applications such as military, scientific, or commercial use.
Applications of Echo Sounders in Marine Engineering
Echo sounders play a crucial role in marine engineering by providing accurate seabed mapping and depth measurements essential for underwater construction and pipeline installation. These devices enable precise detection of underwater obstructions, ensuring safe navigation and efficient design of marine structures such as bridges, docks, and offshore platforms. Integration with GPS and GIS technologies enhances the capability of echo sounders to monitor sediment transport, underwater erosion, and habitat mapping critical for environmental impact assessments.
Sonar Utilization in Navigation and Detection
Sonar systems, unlike basic echo sounders, employ advanced acoustic wave technology to provide precise underwater navigation and detection capabilities crucial for maritime operations. Sonar's ability to map the seafloor, detect obstacles, and identify underwater objects enhances vessel safety and efficiency in complex marine environments. This technology plays a vital role in naval navigation, fisheries management, and submarine communication by delivering detailed subsurface images and real-time data.
Accuracy and Depth Measurement Capabilities
Echo sounders provide highly accurate depth measurements by emitting a single sound pulse and measuring the time it takes to return from the seafloor, offering precise data for shallow to moderate depths typically up to a few hundred meters. Sonar systems, especially multibeam and side-scan types, cover wider areas and greater depths, sometimes exceeding several thousand meters, but their accuracy can vary based on frequency, environmental conditions, and system configuration. While echo sounders excel in pinpoint accuracy for depth profiling, sonar technology offers broader spatial coverage with variable precision depending on application and equipment quality.
Advantages and Limitations of Each System
Echo sounders provide precise depth measurements by sending sound pulses directly downward, making them highly effective for detailed seabed mapping and navigation in shallow waters. Sonar systems, incorporating both echo sounding and side-scan capabilities, offer broader area coverage and obstacle detection but can be limited by signal interference and reduced resolution in complex underwater environments. While echo sounders excel in accuracy and simplicity, sonar systems enable comprehensive situational awareness at the cost of increased complexity and power consumption.
Factors Influencing Equipment Selection
Equipment selection between echo sounders and sonar depends on factors such as depth range, resolution, and target specificity. Echo sounders are preferred for shallow water depth measurement due to their high accuracy and simplicity, while sonar systems are essential for comprehensive underwater mapping and object detection at greater depths. Environmental conditions, including water clarity and bottom composition, also influence the choice, with sonar offering better performance in turbid or complex aquatic environments.
Future Trends in Marine Acoustic Technologies
Future trends in marine acoustic technologies emphasize the integration of advanced echo sounder systems with sophisticated sonar algorithms to enhance underwater mapping accuracy and real-time data processing. Innovations include the development of multi-beam echo sounders combined with AI-enhanced sonar imaging for improved detection of marine life, seafloor topography, and sub-seafloor structures. Enhanced frequency modulation and autonomous underwater vehicles (AUVs) equipped with hybrid echo sounder-sonar systems are set to revolutionize oceanographic research and underwater exploration.
Bathymetry
Echo sounders provide high-resolution, rapid bathymetric mapping by measuring depth using sound pulse reflection, while sonar systems offer broader underwater imaging capabilities beyond depth, including object detection and seabed characterization.
Hydroacoustic mapping
Echo sounders provide high-resolution depth measurements essential for hydroacoustic mapping, while sonar systems integrate broader signal processing capabilities to create detailed underwater topographic and habitat maps.
Depth sounding
Echo sounders measure underwater depth by emitting sound pulses and calculating the time until their echoes return, whereas sonar systems offer broader applications including depth sounding, object detection, and navigation.
Transducer array
An echo sounder uses a single transducer or a simple transducer array for depth measurement, while sonar systems employ complex transducer arrays to detect and image underwater objects with higher resolution.
Pulse frequency modulation
Pulse frequency modulation in echo sounders uses varying pulse rates for precise depth measurement, whereas sonar employs diverse modulation techniques to detect object distance and characteristics in underwater environments.
Backscatter analysis
Echo sounders provide high-resolution backscatter analysis by measuring acoustic signal intensity reflected from the seafloor, whereas sonar systems integrate broader imaging and object detection capabilities beyond backscatter data.
Target separation
Echo sounders provide precise depth measurements with limited target separation, whereas sonar systems offer enhanced target separation through advanced signal processing and multi-frequency capabilities.
Acoustic beamforming
Echo sounders use single-beam acoustic signals for depth measurement while sonar systems employ advanced acoustic beamforming techniques to create detailed underwater images and detect objects with higher spatial resolution.
Multi-beam vs single-beam
Multi-beam echo sounders provide high-resolution, wide-area seabed mapping by emitting multiple acoustic beams simultaneously, whereas single-beam echo sounders transmit a single acoustic pulse for depth measurement directly beneath the vessel.
Sub-bottom profiling
Sub-bottom profiling using sonar provides detailed imaging of sediment layers beneath the seafloor, surpassing echo sounders that primarily measure water depth.

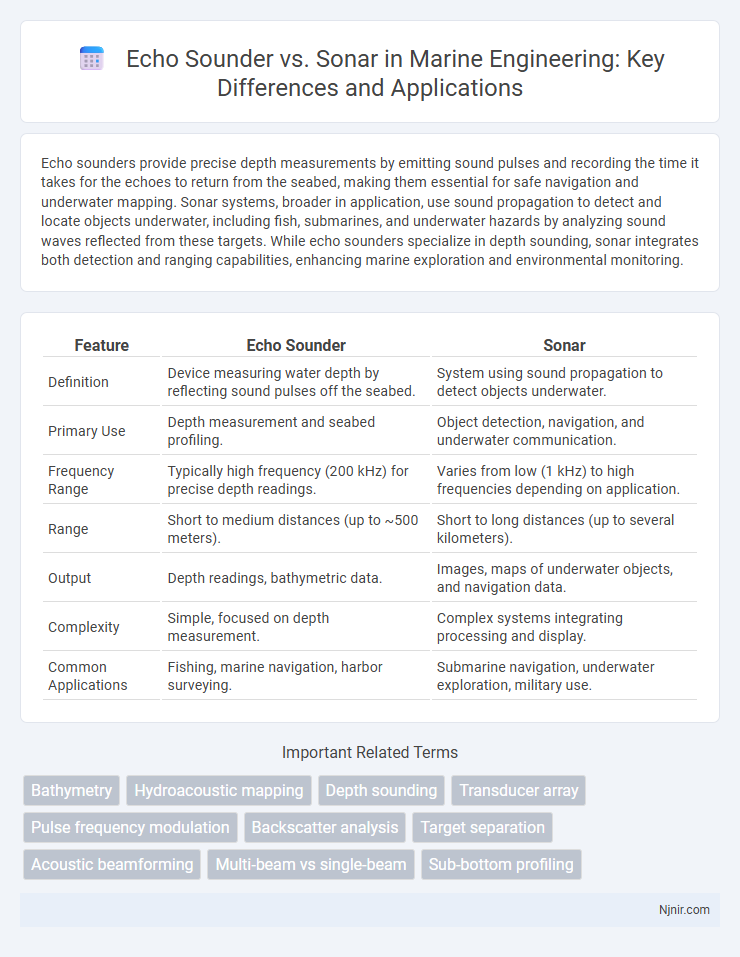

echo sounder vs sonar Infographic
