njnir.com Fixed pitch propellers offer simplicity, durability, and cost-effectiveness due to their unchanging blade angle, making them ideal for vessels with consistent speed and load requirements. Controllable pitch propellers provide enhanced maneuverability and fuel efficiency by allowing blade angle adjustments to optimize performance across varying operating conditions. Choosing between fixed and controllable pitch propellers depends on vessel operational flexibility, maintenance considerations, and specific propulsion needs.
Table of Comparison
| Feature | Fixed Pitch Propeller (FPP) | Controllable Pitch Propeller (CPP) |
|---|---|---|
| Blade Pitch | Fixed angle, non-adjustable | Adjustable blade angle during operation |
| Fuel Efficiency | Lower efficiency at varying speeds | Higher efficiency across speed range |
| Maneuverability | Limited, fixed thrust direction | Enhanced, reversible and variable thrust |
| Initial Cost | Lower cost, simpler design | Higher cost due to complex mechanism |
| Maintenance | Lower maintenance requirements | Higher maintenance due to moving parts |
| Application | Suitable for steady speed vessels | Ideal for vessels requiring frequent speed and direction changes |
Introduction to Marine Propulsion Systems
Fixed pitch propellers feature blades set at a constant angle, providing simplicity and reliability in marine propulsion systems but limiting efficiency across varying speeds and loads. Controllable pitch propellers allow blade angles to be adjusted in real time, optimizing thrust and fuel consumption for different operating conditions in vessels such as tugboats and ferries. Marine propulsion systems benefit from controllable pitch propellers by enhancing maneuverability, reducing wear on engines, and improving overall vessel performance.
Overview of Fixed Pitch Propellers
Fixed pitch propellers feature blades set at a constant angle, optimized for specific operating conditions to maximize efficiency. Commonly used in smaller boats and aircraft, they offer simplicity, reliability, and lower cost due to fewer moving parts. The fixed blade design limits performance flexibility but ensures consistent thrust and reduced maintenance requirements compared to controllable pitch propellers.
Overview of Controllable Pitch Propellers
Controllable pitch propellers (CPP) feature adjustable blade angles that optimize thrust and efficiency across varying vessel speeds and load conditions. Unlike fixed pitch propellers (FPP), CPPs allow real-time blade pitch changes to enhance fuel economy, maneuverability, and reverse thrust capabilities without stopping the engine. This adaptability makes CPP systems ideal for complex marine operations, including tugboats, ferries, and offshore vessels requiring precise speed and direction control.
Key Differences Between Fixed and Controllable Pitch Propellers
Fixed pitch propellers have blades set at a constant angle, offering simplicity, lower cost, and reliability but limited efficiency across varying speeds and loads. Controllable pitch propellers feature adjustable blade angles that optimize thrust and fuel efficiency, improving performance in diverse operating conditions and maneuverability. The key differences lie in operational flexibility, maintenance complexity, and efficiency adaptability between fixed and controllable pitch propellers.
Performance and Efficiency Comparison
Fixed pitch propellers offer simplicity and lower initial cost but provide optimal performance only at a specific engine speed and load, resulting in reduced efficiency under varying operating conditions. Controllable pitch propellers (CPP) enable adjustment of blade angles during operation, maximizing thrust and fuel efficiency across a wide range of speeds and loads, improving maneuverability and reducing fuel consumption. Performance data indicates CPP systems enhance propulsion efficiency by up to 15%, particularly in vessels with variable speed profiles and frequent load changes.
Installation and Maintenance Considerations
Fixed pitch propellers offer simpler installation due to their one-piece design, minimizing alignment and balancing requirements, which reduces initial setup time and costs. Maintenance is straightforward since these propellers have fewer moving parts, resulting in lower frequency and complexity of repairs. Controllable pitch propellers require more complex installation procedures involving hydraulic systems and pitch control mechanisms, necessitating specialized skills and equipment, while maintenance involves regular inspection and servicing of the variable pitch components to ensure optimal performance.
Operational Flexibility and Maneuverability
Fixed pitch propellers offer simplicity and reliability with a set blade angle, making them efficient at a specific operating condition but limiting operational flexibility and maneuverability in varying speeds or load changes. Controllable pitch propellers allow blade angles to be adjusted in real-time, enhancing maneuverability, fuel efficiency, and performance across diverse conditions by optimizing thrust without altering engine speed. This adaptability provides superior control during docking, low-speed operations, and rapid response to changing navigational demands.
Cost Implications: Initial and Lifecycle
Fixed pitch propellers have lower initial costs due to their simple design and manufacturing process, making them a cost-effective choice for smaller vessels or limited budgets. Controllable pitch propellers involve higher upfront investment because of their complex mechanism and added control systems but offer reduced lifecycle costs through improved fuel efficiency and lower maintenance over time. Lifecycle cost analysis reveals that while fixed pitch propellers minimize capital expenditure, controllable pitch propellers can provide significant savings in operational expenses and performance adaptability.
Typical Applications in Marine Vessels
Fixed pitch propellers are commonly used in smaller recreational boats, fishing vessels, and workboats where simplicity, durability, and low cost are essential. Controllable pitch propellers are preferred in larger commercial ships, tugs, and naval vessels that require enhanced maneuverability, fuel efficiency, and the ability to adjust thrust direction without changing engine speed. These differences in application highlight the trade-offs between fixed pitch reliability and controllable pitch flexibility in marine propulsion systems.
Choosing the Right Propeller for Your Vessel
Choosing the right propeller for your vessel depends on balancing performance and flexibility; fixed pitch propellers offer simplicity, durability, and cost-effectiveness ideal for vessels with consistent operating conditions. Controllable pitch propellers provide adjustable blade angles for enhanced maneuverability, fuel efficiency, and optimal thrust in varying speeds and loads. Vessel type, operational profile, and budget constraints are critical factors influencing the decision between fixed pitch and controllable pitch propellers.
Blade angle adjustment
Fixed pitch propellers have a set blade angle that cannot be changed during operation, whereas controllable pitch propellers allow for in-flight adjustment of the blade angle to optimize performance and efficiency.
Hub mechanism
Fixed pitch propellers feature a simple hub mechanism with blades permanently set at a fixed angle, whereas controllable pitch propellers have a complex hub mechanism that allows real-time blade angle adjustment for optimized performance.
Thrust variation
Controllable pitch propellers enable precise thrust variation by adjusting blade angles in real-time, whereas fixed pitch propellers provide constant thrust limited by their fixed blade geometry.
Cavitation control
Controllable pitch propellers effectively reduce cavitation by adjusting blade angles to optimize water flow and pressure, whereas fixed pitch propellers have a fixed blade angle that limits cavitation control.
Reverse thrust capability
Controllable pitch propellers provide superior reverse thrust capability by allowing blade angle adjustment for immediate and efficient reverse thrust, unlike fixed pitch propellers which rely on engine reversal and offer limited reverse thrust efficiency.
Propulsion efficiency
Controllable pitch propellers enhance propulsion efficiency by allowing blade angle adjustments to optimize thrust across varying speeds and loads, unlike fixed pitch propellers which maintain a constant blade angle, limiting performance adaptability.
Power transmission
Fixed pitch propellers provide simple and efficient power transmission with a constant blade angle, while controllable pitch propellers optimize power transmission by adjusting blade angles to match varying engine loads and operating conditions.
Shaft alignment
Controllable pitch propellers require precise shaft alignment to ensure optimal blade angle adjustments and prevent vibration, while fixed pitch propellers have simpler shaft alignment needs due to their constant blade position.
Hydrodynamic loading
Controllable pitch propellers optimize hydrodynamic loading by adjusting blade angle for varying operating conditions, while fixed pitch propellers maintain constant hydrodynamic loading, limiting efficiency across speed changes.
Feathering
Controllable pitch propellers enable feathering to minimize drag during engine failure, unlike fixed pitch propellers which cannot adjust blade angle.

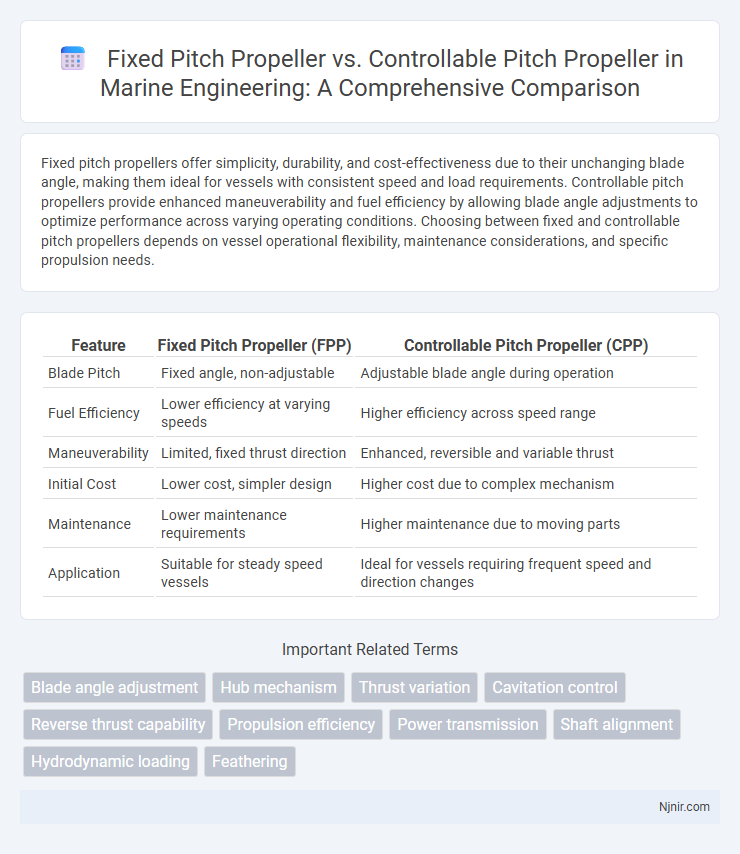

Fixed pitch propeller vs Controllable pitch propeller Infographic
