njnir.com Brushless motors offer higher efficiency, longer lifespan, and reduced maintenance compared to brushed motors due to the absence of brushes and commutators that cause friction and wear. Their electronic commutation enables precise speed control and quieter operation, making them ideal for applications requiring reliability and performance. Brushed motors, while simpler and lower in cost, suffer from lower efficiency and increased maintenance requirements, limiting their use in demanding mechanical engineering projects.
Table of Comparison
| Feature | Brushless Motors | Brushed Motors |
|---|---|---|
| Construction | Permanent magnets on rotor, coils on stator | Coils on rotor, permanent magnets on stator with brushes |
| Efficiency | Higher (>85%) due to reduced friction and electrical losses | Lower (~75%) due to brush friction and voltage drop |
| Maintenance | Low maintenance; no brushes to replace | High maintenance; brushes wear out and need replacement |
| Lifespan | Longer (up to 20,000+ hours) | Shorter (typically 1,000-3,000 hours) |
| Noise | Low noise generation | Higher noise due to brush contact |
| Speed Control | Precise electronic control with integrated sensors | Less precise; controlled by voltage variation |
| Cost | Higher initial cost due to electronics and magnets | Lower initial cost, simpler design |
| Applications | Drones, electric vehicles, robotics, precision tools | Household appliances, toys, low-cost tools |
Introduction to Brushed and Brushless Motors
Brushed motors use carbon brushes and a commutator to deliver current to the motor windings, creating mechanical friction and wear, which reduces efficiency and lifespan. Brushless motors replace brushes with electronic controllers to switch current, resulting in higher efficiency, longer durability, and less maintenance. The fundamental difference lies in the design of the rotor and stator interaction, with brushless motors providing smoother operation and better performance in high-demand applications.
Key Differences in Motor Construction
Brushless motors feature electronic commutation with permanent magnets on the rotor and coils on the stator, eliminating brushes and reducing wear. Brushed motors use carbon brushes that physically contact the commutator attached to the rotor, causing friction and maintenance needs. The brushless design offers higher efficiency, longer lifespan, and quieter operation due to the absence of mechanical brush contact.
Working Principles Compared
Brushless motors operate using electronic commutation, where sensors detect rotor position to switch current through stator windings, eliminating the need for brushes and reducing friction and wear. Brushed motors rely on mechanical commutation, using brushes and a commutator to deliver current to the rotor windings, which causes more maintenance and lower efficiency. The lack of physical contact in brushless motors results in higher reliability, longer lifespan, and smoother operation compared to brushed motors.
Performance and Efficiency Analysis
Brushless motors offer superior performance and efficiency compared to brushed motors due to their electronic commutation, which eliminates friction and energy loss associated with brushes. This results in higher torque-to-weight ratios, reduced maintenance, and longer lifespan. Efficiency in brushless motors typically exceeds 85%, while brushed motors often operate below 75%, making brushless designs ideal for high-demand applications requiring consistent power output and energy savings.
Maintenance Requirements and Longevity
Brushless motors require significantly less maintenance than brushed motors due to the absence of brushes and commutators, which reduces wear and tear and eliminates the need for regular brush replacements. The sealed design of brushless motors protects internal components from dust and contaminants, enhancing durability and extending operational lifespan. Conversely, brushed motors experience faster degradation from brush friction and electrical arcing, resulting in shorter longevity and increased maintenance frequency.
Cost and Initial Investment
Brushless motors typically have a higher initial cost compared to brushed motors due to advanced materials and complex electronic controllers required for operation. Brushed motors offer lower upfront investment but incur more frequent maintenance costs caused by brush wear and shorter lifespan. Long-term cost efficiency often favors brushless motors despite their higher purchase price, as reduced maintenance and better durability yield savings over time.
Applications in Mechanical Engineering
Brushless motors dominate advanced mechanical engineering applications such as robotics, CNC machines, and aerospace systems due to their higher efficiency, longer lifespan, and reduced maintenance compared to brushed motors. Brushed motors remain prevalent in cost-sensitive or simpler devices like household appliances and automotive starters where lower initial cost and straightforward control are prioritized. The improved torque-to-weight ratio and precise speed control of brushless motors make them ideal for high-performance mechanical systems requiring durability and reliability.
Control and Operation Complexity
Brushless motors use electronic controllers to manage commutation, enabling precise speed and torque control with higher efficiency and reduced maintenance compared to brushed motors. Brushed motors rely on mechanical brushes and a commutator, resulting in simpler control circuitry but increased wear and limited lifespan due to physical contact. The complexity of brushless motor control systems allows for advanced features like regenerative braking and programmable speed profiles, making them ideal for applications requiring high performance and reliability.
Noise, Heat, and Vibration Characteristics
Brushless motors generate significantly less noise and vibration due to the absence of brushes, resulting in smoother and quieter operation compared to brushed motors. They also produce less heat because electronic commutation reduces friction and energy losses, enhancing thermal efficiency. In contrast, brushed motors experience higher noise, heat, and vibration levels due to mechanical brush contact and friction, leading to increased wear and reduced lifespan.
Future Trends and Technological Advancements
Brushless motors are rapidly advancing with innovations in rare-earth magnet materials and improved power electronics, enabling higher efficiency and longer lifespans compared to brushed motors. Future trends highlight increased integration of IoT sensors and AI-driven control systems for predictive maintenance and optimized performance. These advancements position brushless motors as the preferred choice for electric vehicles, robotics, and renewable energy applications, gradually phasing out traditional brushed motor technology.
Commutation
Brushless motors use electronic commutation for precise control and higher efficiency, whereas brushed motors rely on mechanical commutation with brushes causing wear and maintenance.
Electromagnetic efficiency
Brushless motors achieve higher electromagnetic efficiency than brushed motors by eliminating brush friction and optimizing coil energization through electronic commutation.
Rotor inertia
Brushless motors feature lower rotor inertia compared to brushed motors, enabling faster acceleration and more precise control in dynamic applications.
Torque ripple
Brushless motors exhibit significantly lower torque ripple compared to brushed motors, resulting in smoother operation and enhanced precision in high-performance applications.
Hall effect sensors
Brushless motors use Hall effect sensors to precisely detect rotor position for efficient commutation, unlike brushed motors which rely on mechanical brushes and do not require such sensors.
Maintenance requirements
Brushless motors require less maintenance than brushed motors due to the absence of brushes that wear out and need regular replacement.
Soft start capability
Brushless motors offer superior soft start capability compared to brushed motors due to their electronic commutation and precise speed control, reducing wear and enhancing performance.
Armature winding
Brushless motors use electronic commutation to eliminate armature winding on the rotor, enhancing efficiency and reducing maintenance compared to brushed motors with armature windings that require mechanical brushes for current transfer.
Electronic speed controller (ESC)
Brushless motors paired with electronic speed controllers (ESCs) offer higher efficiency, precise speed regulation, and reduced maintenance compared to brushed motors with traditional ESCs due to their sensorless commutation and electronic switching.
Duty cycle
Brushless motors offer higher duty cycles than brushed motors due to reduced friction and heat generation, enabling longer continuous operation and increased efficiency.

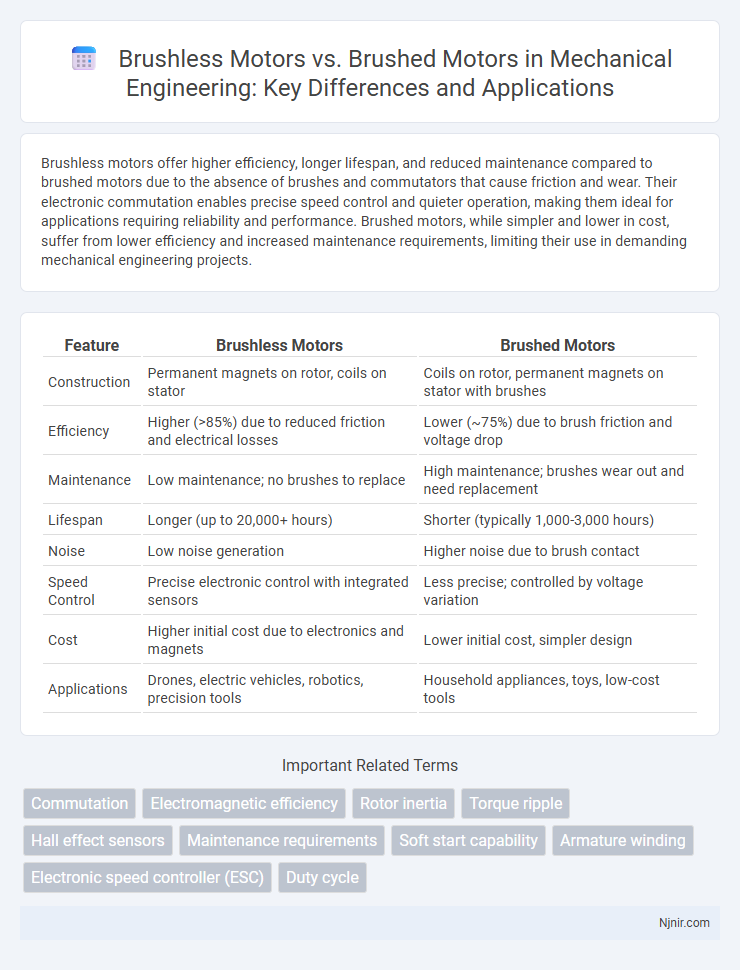

Brushless motors vs brushed motors Infographic
